RAB GUSJR4-40-840WU

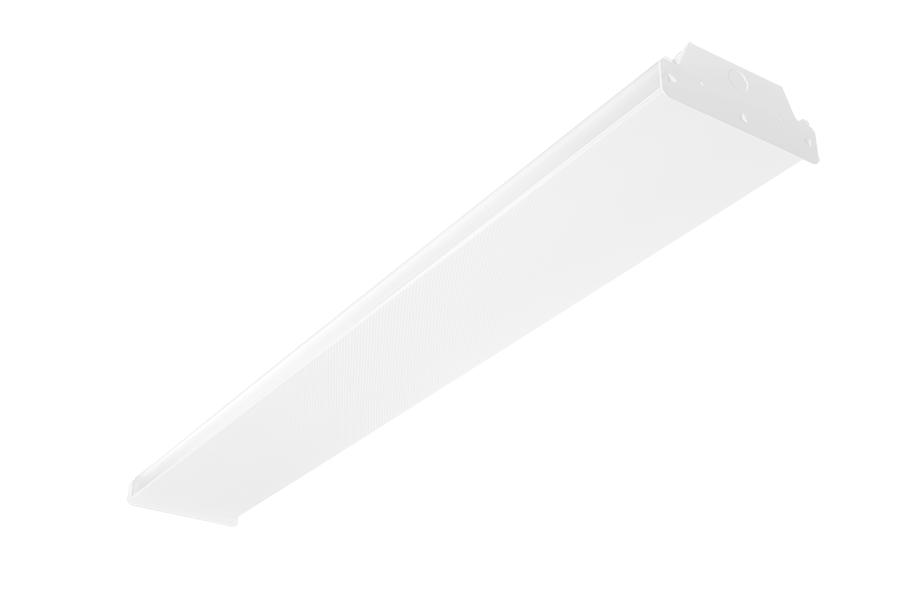

RAB GUSJR4-40-840WU GUS™ Jr Dimmable General Purpose Wraparound Fixture,) LED Lamp, 40.1 W Fixture, 120 to 277 VAC, White Powder Coated Housing
Brand: RAB
Item ID: 483087
MPN: GUSJR4-40-840WU
Login for Price
Features
- Affordable, easy to use LED wrap fixture
- 0.34 A at 120 VAC, 0.21 A at 208 VAC, 0.19 A at 240 VAC, 0.15 A at 277 VAC amperage rating
Description
The affordable LED GUSJR is designed to deliver general ambient lighting for surface mount ceiling/wall or pendant mount applications. Prismatic lens delivers improved visual performance and a more traditional look. Replaces traditional 2 ft linear fluorescent wraparound fixtures.
RAB Wraparound Fixture, Dimmable General Purpose, Series: GUS™ Jr, 120 to 277 VAC, 40.1 W Fixture, 0.34/0.21/0.19/0.15 A, LED Lamp, 40 W Lamp, 120.5 Lumens/W Light Output, 50000 hr Average Life, Neutral Light, 4000 K Color Temperature, 82 CRI, 0 to 10 VDC Dimming/Class 2 Constant Current Ballast, Prismatic Acrylic Lens, 4834 Lumens, Ceiling Mounting, Cold Rolled Steel Housing Material, White Powder Coated Housing Finish, 4 ft L x 6.7 in W x 2.4 in H Dimensions
Specifications
Amperage Rating |
0.34/0.21/0.19/0.15 A |
Average Life |
50000 hr |
Ballast Type |
0 to 10 VDC Dimming/Class 2 Constant Current |
Color Rendering Index (CRI) |
82 |
Color Temperature |
4000 K |
Dimensions |
4 ft L x 6.7 in W x 2.4 in H |
Fixture Wattage |
40.1 W |
Housing Finish |
White Powder Coated |
Housing Material |
Cold Rolled Steel |
Lamp Type |
LED |
Lamp Wattage |
40 W |
Lens Type |
Prismatic Acrylic |
Light Color |
Neutral |
Light Output |
120.5 Lumens/W |
Lumens |
4834 Lumens |
Mounting Type |
Ceiling |
Series |
GUS™ Jr |
Type |
Dimmable General Purpose |
Voltage Rating |
120 to 277 VAC |
Standard Approval |
UL Listed|DLC Listed |
Application |
Indoor Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4-27-835WN_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4-40-840WU_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4-40-840WU_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4_27_835WU_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4-40-840WU_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4-40-840WU_Line_Drawing.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR440850WU_Line_Drawing.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f2bef5fc1bde6ea9509ca24c106e5db5cafca68fbd8248bf5dd0380bc75dccbc.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4-40-840WU_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4-40-840WU_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR4_40_840WU_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
