RAB H101A

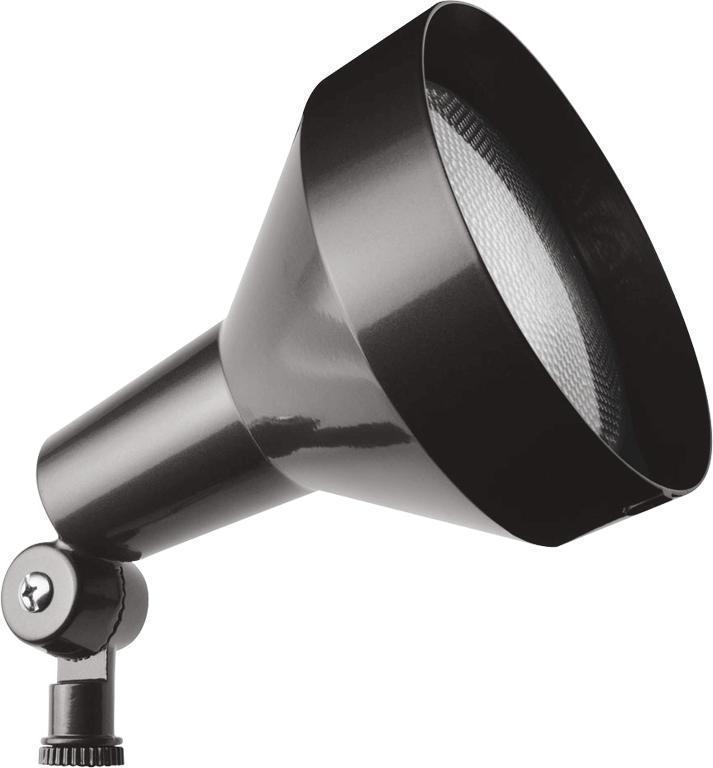

RAB H101A HID Landscape Floodlight,) PAR38 Halogen Lamp, 120 VAC, Bronze Housing
Brand: RAB
Item ID: 222912
MPN: H101A
Login for Price
Features
- Lamp recessed 1 in from lip for side glare reduction
- Set screw for hood, grill or visor attachment
- Large silicone rubber gasket provides weatherproof protection around the lamp and socket
- When using as an uplight in outdoor applications a hood or a visor must be used
- Fully adjustable with sure-grip locks
- HV1 visor with integral guard and glass lens for maximum glare reduction and lamp protection
- HG1 guard protects lamp from damage and vandalism
- HH1 hood with glass lens reduces glare and protects lamp from water and impact damage
- Socket porcelain with all copper current carrying components
- 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting covers
- Medium base PAR38 lamps up to 150 W, halogen lamps give brighter light and choice of beam spreads
Description
RAB Floodlight, HID Landscape, 120 VAC, PAR38 Halogen Lamp, 150 W Lamp, Medium Lamp Base Type, Glass Lens, Aluminum Housing, Bronze Housing, 5-5/8 in Dia x 7 in L
Specifications
Dimensions |
5-5/8 in Dia x 7 in L |
Housing Finish |
Bronze |
Housing Material |
Aluminum |
Lamp Base Type |
Medium |
Lamp Type |
PAR38 Halogen |
Lamp Wattage |
150 W |
Lens Type |
Glass |
Type |
HID Landscape |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed |
Application |
Wet Location Applications |
