RAB Lighting A22-150B

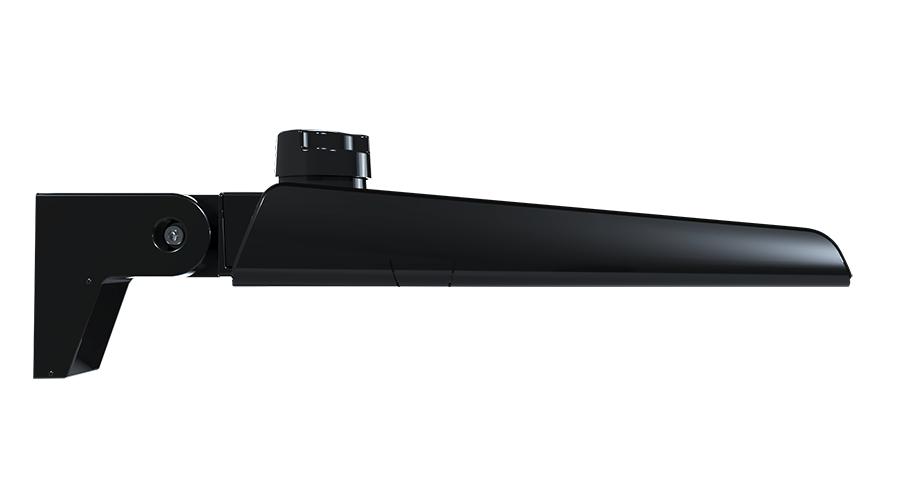

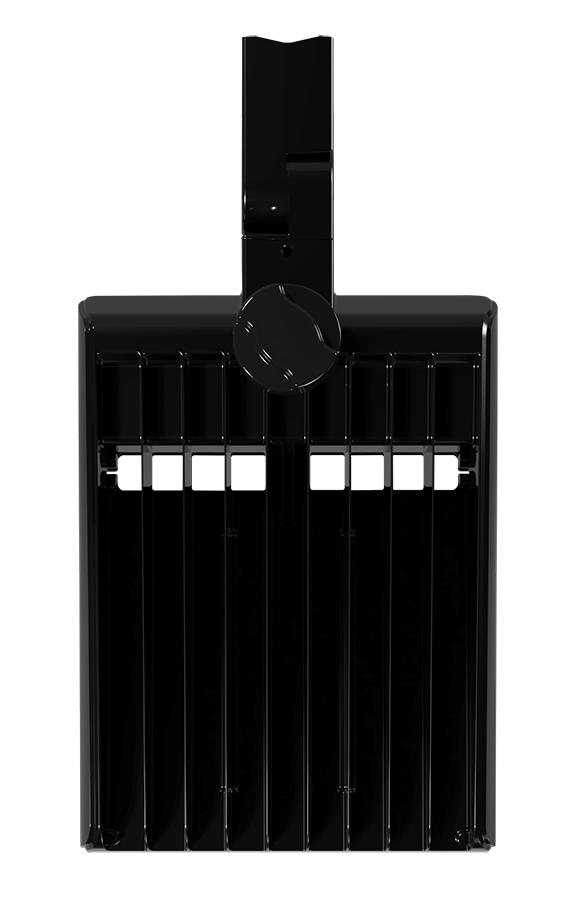

RAB Lighting A22-150B A22 Type III Distribution Area Light, 99.4 to 151.4 W Fixture, 120 to 277 V, Black Housing
Brand: RAB Lighting
Item ID: 574405
MPN: A22-150B
Login for Price
Features
- 7-Pin Receptacle with Shorting Cap
Description
This family of area lights is available in 3 sizes, with Type III, IV and V distribution. Each boasts 3 selectable wattages and CCTs.
RAB Lighting, A22-150B, Area Light, Type III Distribution, Series: A22, 120 to 277 V, 99.4 to 151.4 W Fixture, 1.25 to 0.36 A, 150, 120, 100 W Lamp, 132.4 to 163.1 Lumens/W Light Output, 100000 hr Average Life, 3000/4000/5000 K Color Temperature, 80 to 84 CRI, 0 to 10 V Dimming Ballast, Polycarbonate Lens, 15009 to 22117| Lumens, IP66 Enclosure, Pole Mounted Mounting, Die Cast Aluminum Housing Material, Black Housing Finish, 8 in H x 12 in W x 23 in L Dimensions
Specifications
Amperage Rating |
1.25 to 0.36 A |
Average Life |
100000 hr |
Ballast Type |
0 to 10 V Dimming |
Color Rendering Index (CRI) |
80 to 84 |
Color Temperature |
3000/4000/5000 K |
Dimensions |
8 in H x 12 in W x 23 in L |
Enclosure Type |
IP66 |
Fixture Wattage |
99.4 to 151.4 W |
Housing Finish |
Black |
Housing Material |
Die Cast Aluminum |
Lamp Wattage |
150, 120, 100 W |
Lens Type |
Polycarbonate |
Light Output |
132.4 to 163.1 Lumens/W |
Lumens |
15009 to 22117 Lumens |
Mounting Type |
Pole Mounted |
Series |
A22 |
Type |
Type III Distribution |
Voltage Rating |
120 to 277 V |
Standard Approval |
BAA Compliant|DLC Listed|RoHS compliant|ANSI C78.377-2017/C136.41 7|IESNA LM-79 and LM-80|UL Listed |
Application |
Suitable for wet locations, Suitable for mounting within 4ft (1.2m) of the ground, ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_Inc_A22WMW_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_Inc_A22WMW_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_Inc_A22WMW_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_Inc_A22WMW_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_Inc_A22_150B_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_Inc_A22_150B_Specification_Sheet.pdf
