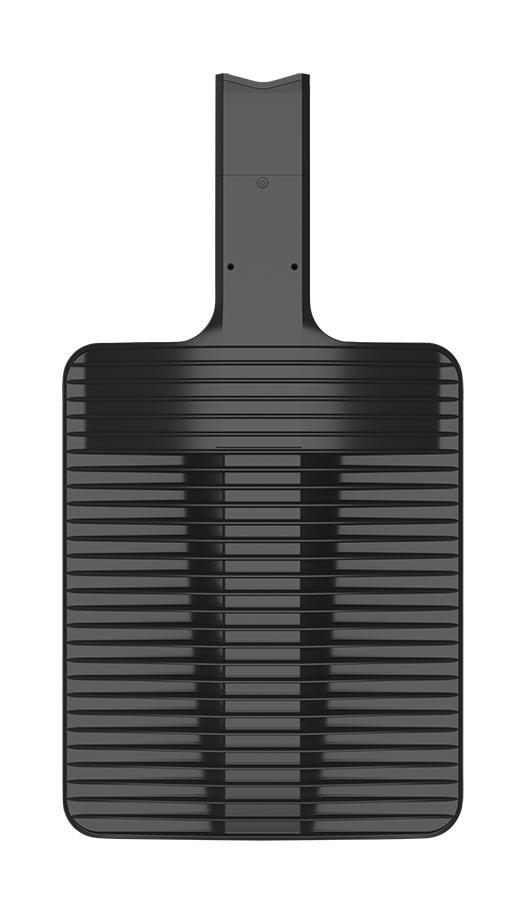

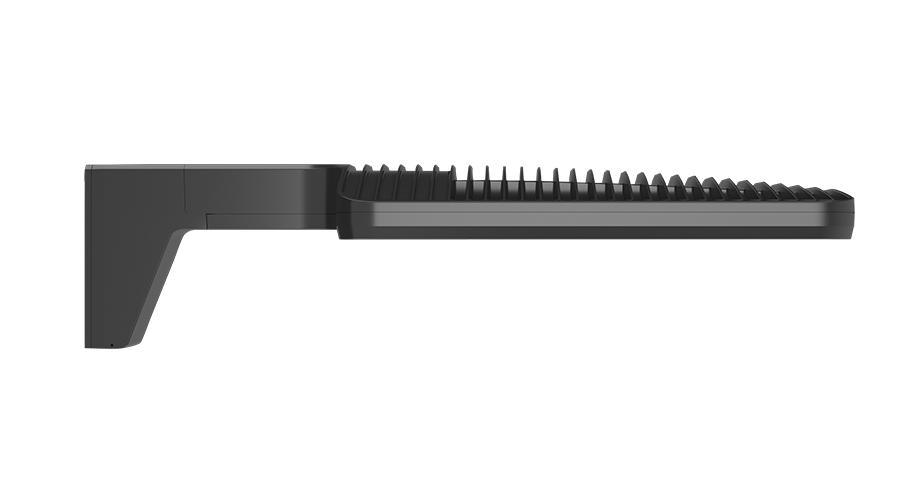

RAB Lighting ALEDM3TY
RAB Lighting ALEDM3TY ALED Type III Distribution Area Light, 78/90/150 W Fixture, 120 to 277 V AC, Bronze Housing
Brand: RAB Lighting
Item ID: 560188
MPN: ALEDM3TY
Login for Price
Description
RAB Lighting, ALEDM3TY, Area Light, Type III Distribution, Series: ALED, 120 to 277 V AC, 78/90/150 W Fixture, 0.65/0.38/0.33/0.29/0.75/0.44/1.25/0.73/0.63/0.55 A, LED Lighting Technology, 132.5/141/142.8 Lumens/W Light Output, 100000 hr Average Life, Warm White Light, 3000 K Color Temperature, 82 CRI, 0 to 10 VDC Dimming/Class 2 Constant Current Ballast, Polycarbonate Lens, 10769/12835/19524 Lumens, Universal Mounting, Bronze Housing Finish, 5-25/32 in H x 22-31/32 in L Dimensions
Specifications
Amperage Rating |
0.65/0.38/0.33/0.29/0.75/0.44/1.25/0.73/0.63/0.55 A |
Average Life |
100000 hr |
Ballast Type |
0 to 10 VDC Dimming/Class 2 Constant Current |
Color Rendering Index (CRI) |
82 |
Color Temperature |
3000 K |
Dimensions |
5-25/32 in H x 22-31/32 in L |
Fixture Wattage |
78/90/150 W |
Housing Finish |
Bronze |
Lens Type |
Polycarbonate |
Light Color |
Warm White |
Light Output |
132.5/141/142.8 Lumens/W |
Lighting Technology |
LED |
Lumens |
10769/12835/19524 Lumens |
Mounting Type |
Universal |
Series |
ALED |
Type |
Type III Distribution |
Voltage Rating |
120 to 277 V AC |
Standard Approval |
DLC Premium|UL listed|IESNA LM-7, 80|IES LM-80, TM-21|BAA compliant|ANSI C136.41 |
Application |
Suitable for wet locations |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_ALEDL2T_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_ALEDL2T_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_ALEDM3TY_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_ALEDM3TY_Specification_Sheet.pdf
