RAB Lighting LF34L

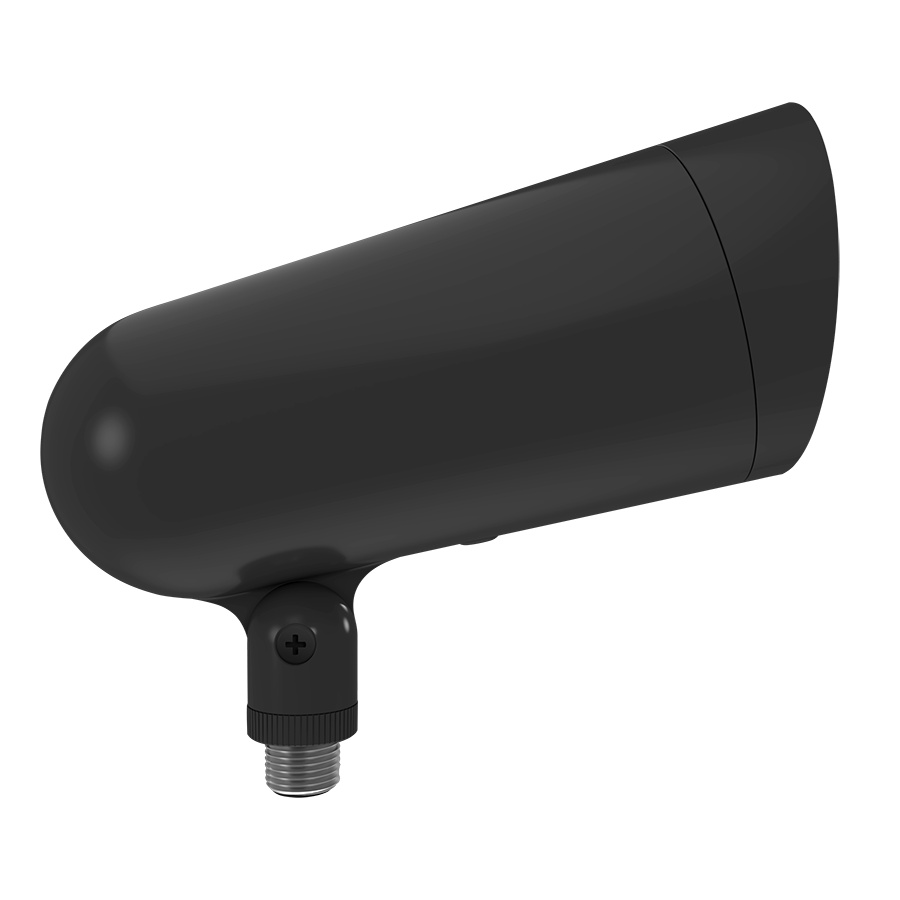

RAB Lighting LF34L LF34 Field-Adjustable Floodlight, 30.1 to 31.6 W Fixture, 120 V
Brand: RAB Lighting
Item ID: 562393
MPN: LF34L
Login for Price
Description
The economic LF17 is designed for 120V use and includes field-adjustable wattage and CCT. Available in bronze, black, and white and as 2-ups with or without motion sensor.
RAB Lighting, LF34L, Floodlight, Field-Adjustable, Series: LF34, 120 V, 30.1 to 31.6 W Fixture, 0.28 A, 33 W Lamp, 127.8 to 144.8 Lumens/W Light Output, 100000 hr Average Life, Warm White/Neutral White/Cool White Light, 2700/3000/3500/4000/5000 K Color Temperature, 81 to 84 CRI, Triac Dimming Ballast, Tempered Glass Lens, 4026 to 4408 Lumens, IP65 Enclosure, Knuckle Mounting, Die-Cast Aluminum Housing Material, 8-5/8 in L x 3-13/16 in W Dimensions
Specifications
Amperage Rating |
0.28 A |
Average Life |
100000 hr |
Ballast Type |
Triac Dimming |
Color Rendering Index (CRI) |
81 to 84 |
Color Temperature |
2700/3000/3500/4000/5000 K |
Dimensions |
8-5/8 in L x 3-13/16 in W |
Enclosure Type |
IP65 |
Fixture Wattage |
30.1 to 31.6 W |
Housing Material |
Die-Cast Aluminum |
Lamp Wattage |
33 W |
Lens Type |
Tempered Glass |
Light Color |
Warm White/Neutral White/Cool White |
Light Output |
127.8 to 144.8 Lumens/W |
Lumens |
4026 to 4408 Lumens |
Mounting Type |
Knuckle |
Series |
LF34 |
Type |
Field-Adjustable |
Voltage Rating |
120 V |
Standard Approval |
UL Listed|TAAC Compliant |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LF34L_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LF34L_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LF34L_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LF34L_Specification_Sheet.pdf
