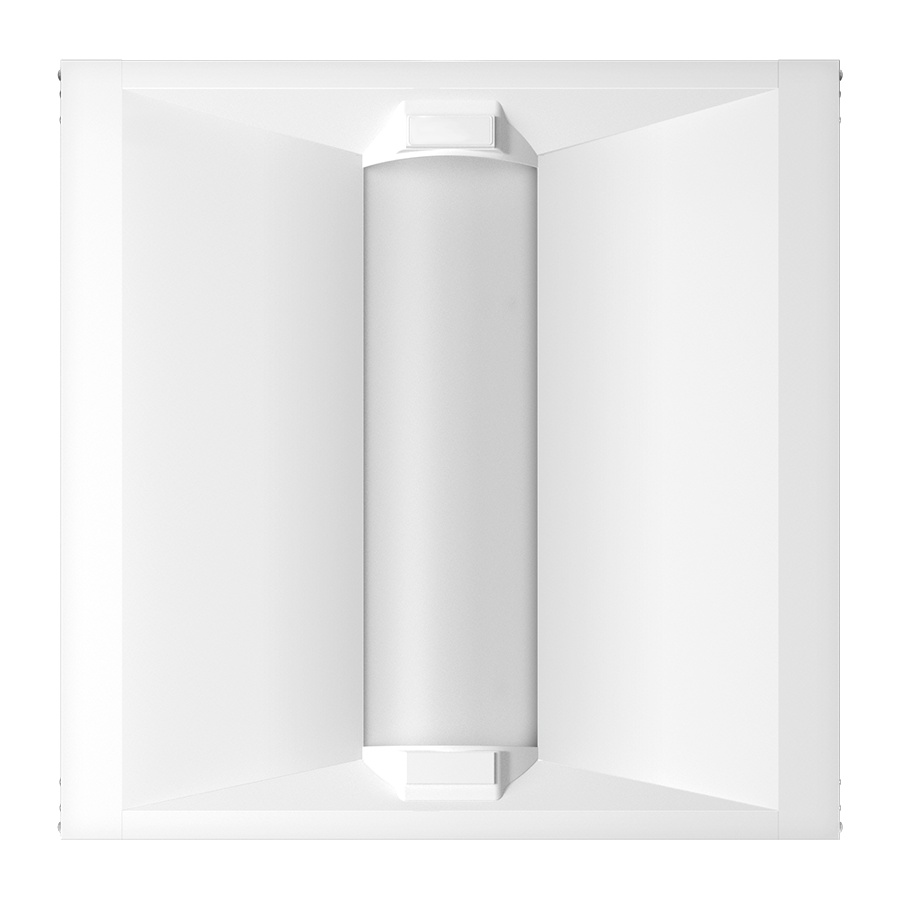

RAB Lighting SWISH34-2X2
RAB Lighting SWISH34-2X2 SWISH Field-Adjustable Troffer, 17.69 to 29.02 W Fixture, 120 to 277 V, Sheet Metal Housing
Brand: RAB Lighting
Item ID: 559123
MPN: SWISH34-2X2
UPC: 192552043717
Login for Price
Description
LED efficiency and performance in an economical center basket troffer.
| RAB SWISH34-2X2 is a 2 x 2-foot field-adjustable LED center-basket troffer for 120–277V systems. It offers selectable 30/25/18W output and 3500K, 4000K or 5000K CCT, with 0–10V dimming to 10%. The standard fixture installs in a T-grid ceiling; compatible surface-mount kits are sold separately. |
Specifications
Amperage Rating |
0.25/0.21/0.15/0.14/0.12/0.08/0.13/0.10/0.08/0.11/0.09/0.06A A |
Average Life |
100000 hr |
Ballast Type |
0 to 10 V Dimming |
Color Rendering Index (CRI) |
85 to 86 |
Color Temperature |
3500/4000/5000 K |
Dimensions |
47-3/4 in L x 11-7/8 in W x 1-5/8 in D |
Fixture Wattage |
17.69 to 29.02 W |
Housing Material |
Sheet Metal |
Lamp Wattage |
30/25/18 W |
Lens Type |
Polycarbonate |
Light Color |
Neutral White/Cool White |
Light Output |
125.3 to 135.5 Lumens/W |
Lumens |
2538 to 4109 Lumens |
Mounting Type |
Surface |
Series |
SWISH |
Type |
Field-Adjustable |
Voltage Rating |
120 to 277 V |
Standard Approval |
DLC Premium |
Application |
Indoor |
Documentation
SWISH34 Installation Instructions https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SWISH34_1X4_Instruction_Installation_Manual.pdf
RAB SWISH34 Field-Adjustable Troffer Specification Sheet; https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SWISH34_2X2_Specification_Sheet.pdf
