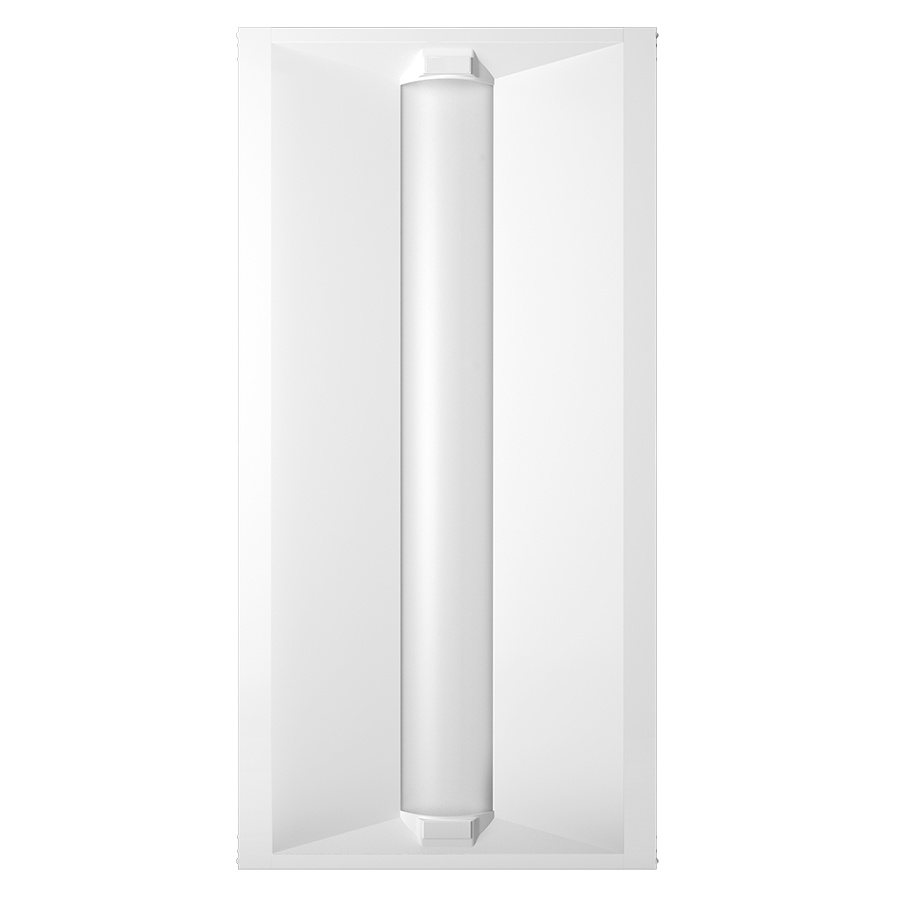

RAB Lighting SWISH34-2X4
RAB Lighting SWISH34-2X4 SWISH Field-Adjustable Troffer, 29.73 to 39.96 W Fixture, 120 to 277 V, Sheet Metal Housing
Brand: RAB Lighting
Item ID: 570674
MPN: SWISH34-2X4
Login for Price
Description
LED efficiency and performance in an economical center basket troffer.
RAB Lighting, SWISH34-2X4, Troffer, Field-Adjustable, Series: SWISH, 120 to 277 V, 29.73 to 39.96 W Fixture, 0.33/0.29/0.25/0.19/0.17/0.14/0.17/0.15/0.13/0.14/0.13/0.11A A, 40/35/30 W Lamp, 130.3 to 145 Lumens/W Light Output, 100000 hr Average Life, Neutral White/Cool White Light, 3500/4000/5000 K Color Temperature, 84 to 85 CRI, 0 to 10 V Dimming Ballast, Polycarbonate Lens, 2538 to 4109 Lumens, Surface Mounting, Sheet Metal Housing Material, 47-3/4 in L x 23-3/4 in W x 1-5/8 in D Dimensions
Specifications
Amperage Rating |
0.33/0.29/0.25/0.19/0.17/0.14/0.17/0.15/0.13/0.14/0.13/0.11A A |
Average Life |
100000 hr |
Ballast Type |
0 to 10 V Dimming |
Color Rendering Index (CRI) |
84 to 85 |
Color Temperature |
3500/4000/5000 K |
Dimensions |
47-3/4 in L x 23-3/4 in W x 1-5/8 in D |
Fixture Wattage |
29.73 to 39.96 W |
Housing Material |
Sheet Metal |
Lamp Wattage |
40/35/30 W |
Lens Type |
Polycarbonate |
Light Color |
Neutral White/Cool White |
Light Output |
130.3 to 145 Lumens/W |
Lumens |
2538 to 4109 Lumens |
Mounting Type |
Surface |
Series |
SWISH |
Type |
Field-Adjustable |
Voltage Rating |
120 to 277 V |
Standard Approval |
DLC Premium |
Application |
Indoor |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SWISH34_1X4_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SWISH34_1X4_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SWISH34_2X4_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SWISH34_2X4_Specification_Sheet.pdf
