RAB LES13YB

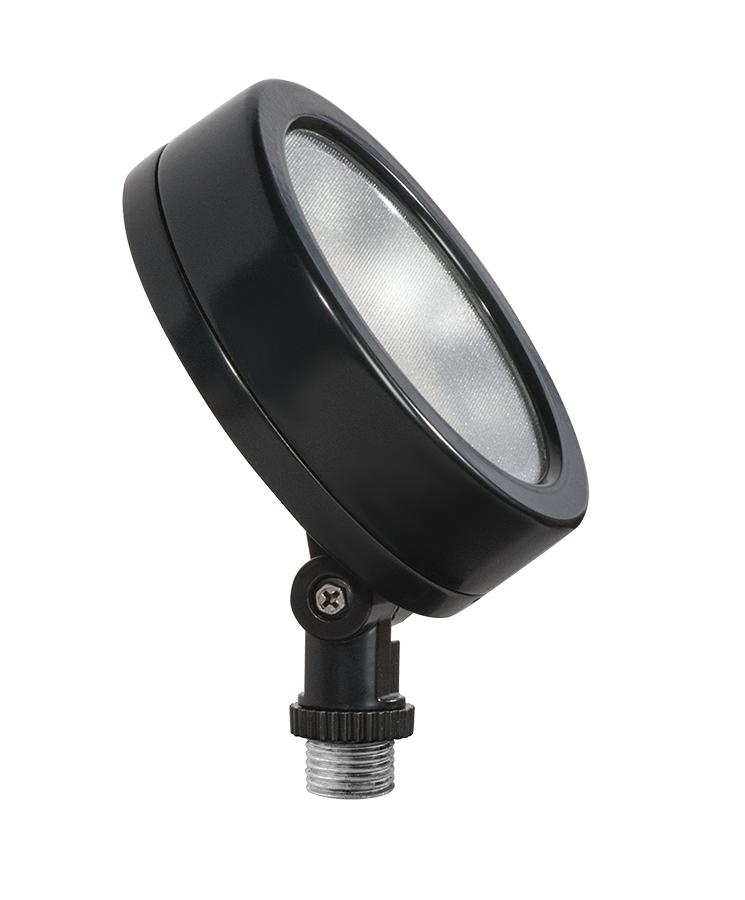

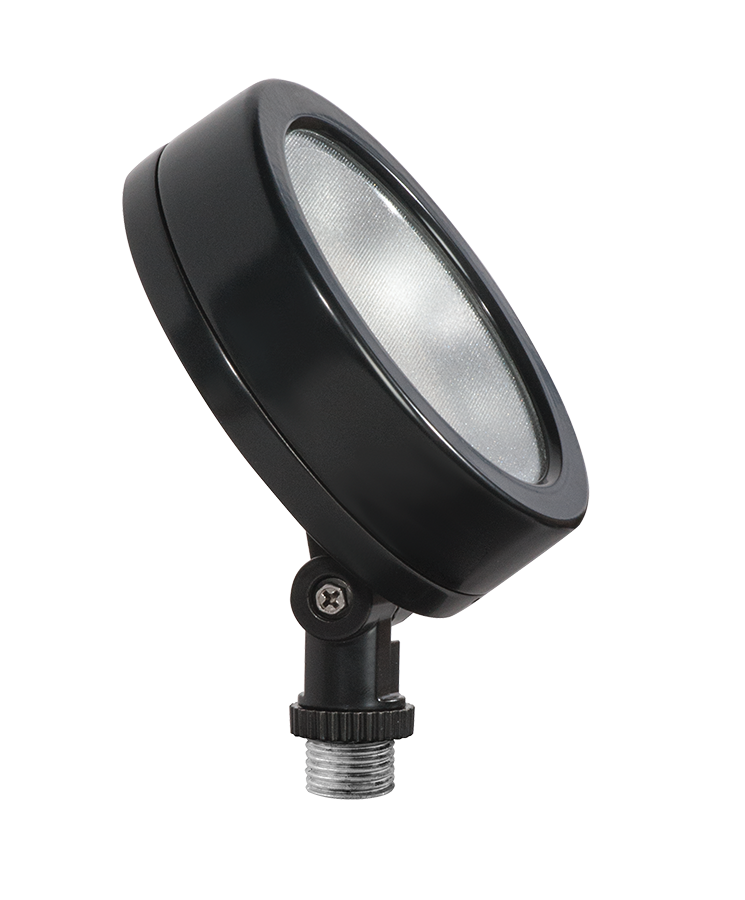

RAB LES13YB Floodlighting,) LED Lamp, 13 W Fixture, 120 VAC, Black Housing
Brand: RAB
Item ID: 452773
MPN: LES13YB
Login for Price
Features
- Equivalent to 75 W BR30 halogen wide flood
- Wide 6H x 6V distribution
- Diffused lens for smooth, even light distribution
- Very low profile
- Adjustable knuckle
- 0.11 A at 120 VAC
Description
RAB Floodlighting, Series: LES, 120 VAC, 13 W Fixture, 0.11 A, LED Lamp, 13 W Lamp, 79 Lumens/W Light Output, 60000 hr Average Life, Warm White Light, 3000 K Color Temperature, 83 CRI, Constant Current Ballast, Diffused Glass Lens, 1045 Lumens, NEMA 6H x 6V/IP66 Enclosure, Arm Mounting, Die Cast Aluminum Housing Material, Black Housing Finish, 5-3/4 in H x 1-1/2 in D Dimensions
Specifications
Amperage Rating |
0.11 A |
Average Life |
60000 hr |
Ballast Type |
Constant Current |
Color Rendering Index (CRI) |
83 |
Color Temperature |
3000 K |
Dimensions |
5-3/4 in H x 1-1/2 in D |
Enclosure Type |
NEMA 6H x 6V/IP66 |
Fixture Wattage |
13 W |
Housing Finish |
Black |
Housing Material |
Die Cast Aluminum |
Lamp Type |
LED |
Lamp Wattage |
13 W |
Lens Type |
Diffused Glass |
Light Color |
Warm White |
Light Output |
79 Lumens/W |
Lumens |
1045 Lumens |
Mounting Type |
Arm |
Series |
LES |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed for Wet Locations|ENERGY STAR V2.0|IESNA LM-79, LM-80|ANSI C78.377-2017|CSA Approved |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7bc44bd2fc342586f8de5632f06fa2fecd4bbd2f290b43f1e98120fbfa0e0376.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LES13_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LES13_Installation_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LES13_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LES13_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LES13_Line_Drawing.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_44677ace29e710f1802c1ee86e12b8df97789eab354ed225ae5fa1a907ad1b5d.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6d5714c487a93500f2e90cb157c3f8b78a15705fd115df83081f90e08640f8a1.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LES13YB_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
