RAB LFLED6LVYYA

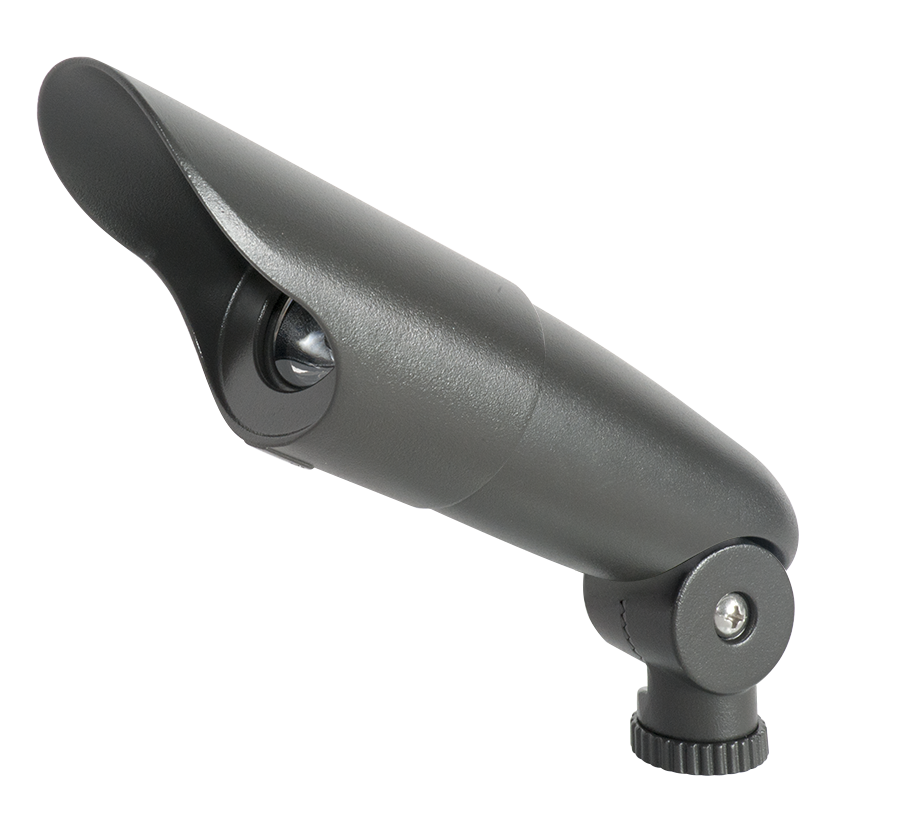

RAB FERN™ LFLED6LVYYA Accent Landscape Flood Light, LED Lamp, 6 W Fixture, 12 VAC, Bronze/Polyester Powder Coated Housing
Brand: RAB
Item ID: 454100
MPN: LFLED6LVYYA
Login for Price
Description
RAB FERN™ Landscape Flood Light, Accent, Series: LFLED, 12 VAC, 6 W Fixture, 0.562 A, LED Lamp, 6 W Lamp, 100000 hr Average Life, Warm White Light, 2700 K Color, 80 CRI, Constant Current Ballast, Solite Glass Lens, 226 Lumens, IP66, Ground Mount, Die Cast Aluminum Housing, Bronze/Polyester Powder Coated Housing, 7-1/2 in H x 1-15/16 in W
Specifications
Amperage Rating |
0.562 A |
Average Life |
100000 hr |
Ballast Type |
Constant Current |
Color Rendering Index (CRI) |
80 |
Color Temperature |
2700 K |
Dimensions |
7-1/2 in H x 1-15/16 in W |
Enclosure Type |
IP66 |
Fixture Wattage |
6 W |
Housing Finish |
Bronze/Polyester Powder Coated |
Housing Material |
Die Cast Aluminum |
Lamp Type |
LED |
Lamp Wattage |
6 W |
Lens Type |
Solite Glass |
Light Color |
Warm White |
Lumens |
226 Lumens |
Mounting Type |
Ground |
Series |
LFLED |
Type |
Accent |
Voltage Rating |
12 VAC |
Standard Approval |
DLC/UL Listed for Wet Location |
Application |
For mounting within 4 ft of the ground and 12 VAC systems |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFLED6LVYYA_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFLED6LVYYA_Instruction_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFLED6LVYYB_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFLED6LVYYB_Instructions.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFLED6LVYYB_Line_Drawing.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f035bb4f884dd4bb92209650cf38dddc753d547ceb4257dcc845bb128b4c13b5.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFLED6LVYYA_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
