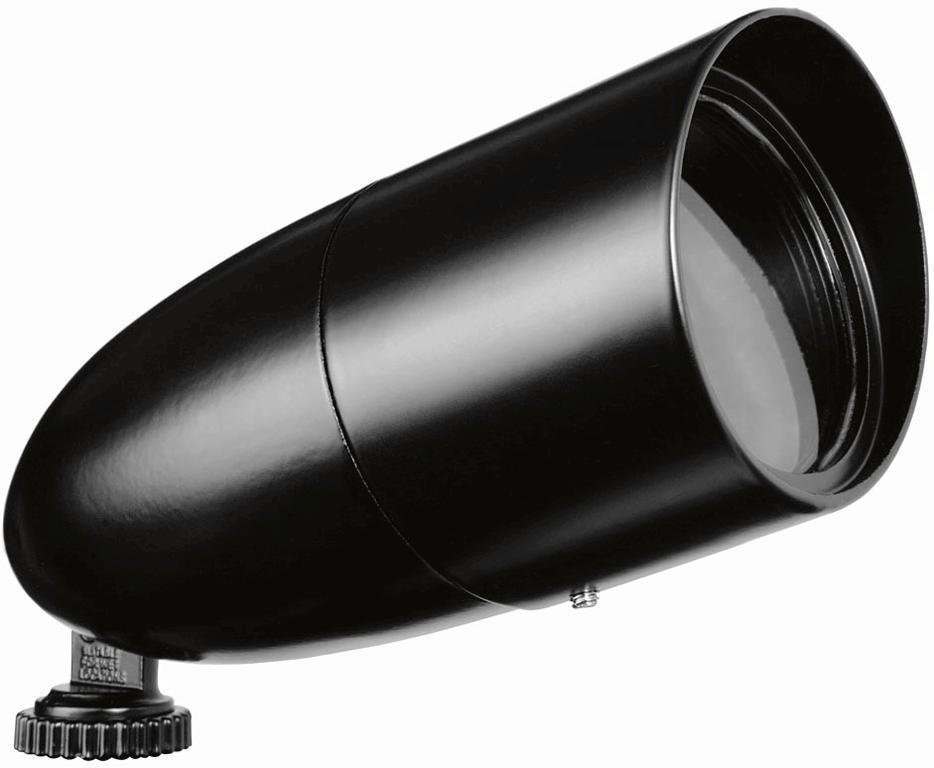

RAB LFM16B

RAB LFM16B HID Landscape Floodlight,) MR16 Lamp, 120 VAC, Black Housing

Brand: RAB

Item ID: 34092

MPN: LFM16B

Login for Price

Features

  • Deep glare shield
  • Weatherproof lens and gasket
  • O-ring seal for full weather protection
  • No rust brass and stainless steel external hardware
  • Rugged mounting arm has 1/2 in threads and pivots 180
  • EZ grip locknuts are color matched to fixture and can be tightened with fingers, pliers or screwdriver
  • 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes
  • Polyester powder coated finish

Description

RAB Floodlight, HID Landscape, 120 VAC, MR16 Lamp, 50 W Lamp, GU5.3 Bi-Pin Lamp Base, 4000 hr Average Life, SPT-1 36 in Cord, Aluminum Housing Material, Black Housing Finish, 2-7/16 in Dia x 5-7/8 in L Dimensions

Specifications

Average Life

4000 hr

Cord Type

SPT-1 36 in

Dimensions

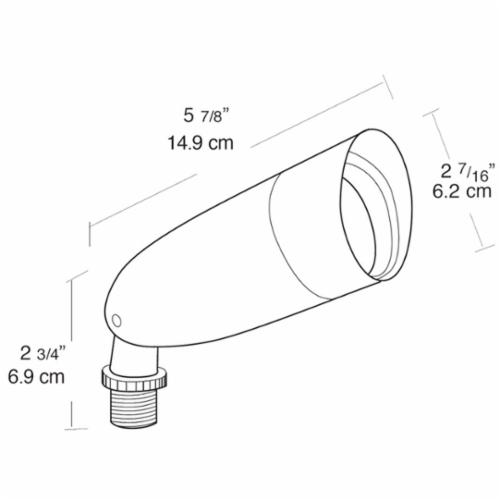

2-7/16 in Dia x 5-7/8 in L

Housing Finish

Black

Housing Material

Aluminum

Lamp Base Type

GU5.3 Bi-Pin

Lamp Type

MR16

Lamp Wattage

50 W

Type

HID Landscape

Voltage Rating

120 VAC

Standard Approval

UL Listed

Application

Wet Location Applications

Documentation

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFM16A_Installation_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_42d84174beab38bd3a3c68e949367981e075e9251afd24c877c66a6b6ea2422b.pdf

Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e9ef8112a5ac4bdd5828e91a42438c4068d66a88f0ada8a4ddea10acfbf73384.pdf

Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFM16B_Specification_Sheet.pdf

Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf
