RAB LFP16VG

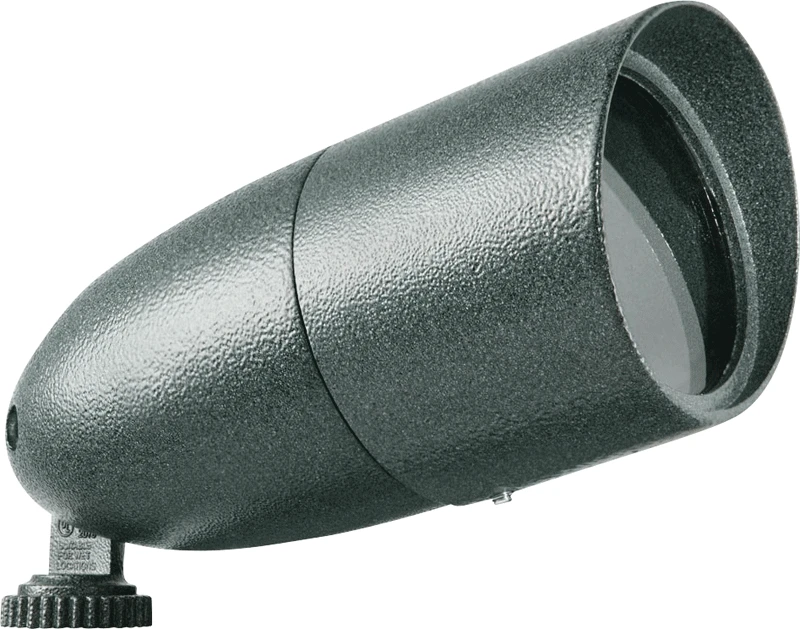

RAB LFP16VG HID Landscape Floodlight, PAR16 Lamp, 120 VAC, Verde Green Housing
Brand: RAB
Item ID: 34098
MPN: LFP16VG
Login for Price
Features
- Deep glare shield
- Weatherproof lens and gasket
- O-ring seal for full weather protection
- No rust brass and stainless steel external hardware
- Rugged mounting arm has 1/2 in threads and pivots 180
- EZ grip locknuts are color matched to fixture and can be tightened with fingers, pliers or screwdriver
- 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes
- Polyester powder coated finish
- Medium base porcelain with all copper current carrying components and spring-loaded center contact
Description
RAB Floodlight, HID Landscape, 120 VAC, PAR16 Lamp, 60 W Lamp, Medium Lamp Base, 2000 hr Average Life, 650 Lumens, Aluminum Housing Material, Verde Green Housing Finish, 2-7/16 in Dia x 5-7/8 in L Dimensions
Specifications
Average Life |
2000 hr |
Dimensions |
2-7/16 in Dia x 5-7/8 in L |
Housing Finish |
Verde Green |
Housing Material |
Aluminum |
Lamp Base Type |
Medium |
Lamp Type |
PAR16 |
Lamp Wattage |
60 W |
Lumens |
650 Lumens |
Type |
HID Landscape |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed |
Application |
Wet Location Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFP16A_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4da77546673262b81939aab143084eacdefc5dd0c1083c2495eaa83aa6e13f5e.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a5dcd0d7fd6b96a4469a695b8c9188b72006719dc256741ad1ad5d687b5a14bc.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LFP16VG_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf
