RAB LU300W

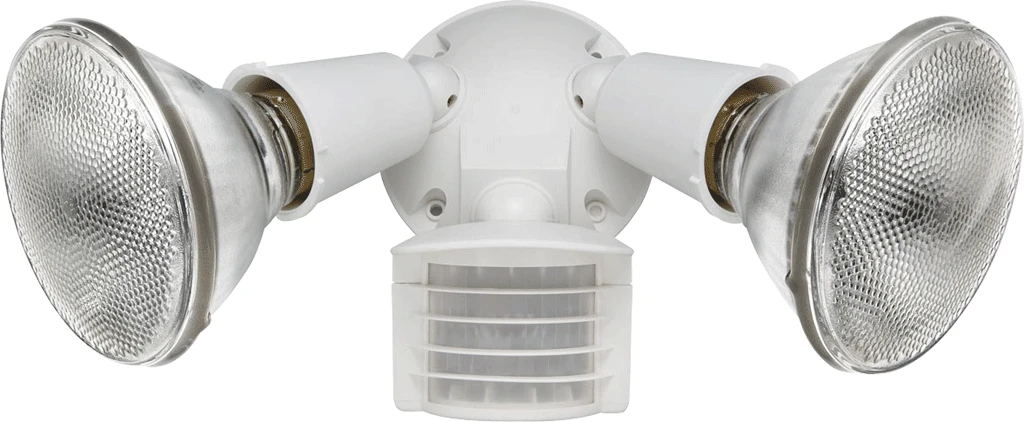

RAB Luminator® LU300W Floodlight Kit, (2) PAR38 Incandescent Lamp, 300 W Fixture, 120 VAC, Polycarbonate Housing
Brand: RAB
Item ID: 74407
MPN: LU300W
Login for Price
Features
- Manual override
- Fully adjustable positioning
- 110 deg double look down lens
- Tough, vandal-resistant lens and grill
- LS300 fits 1/2 in standard threaded cover plates
- Two flip logic prevents activation by momentary power outages
- Override resets to auto after 6 hr or at dawn
- No extra wiring needed
- Withstands up to 3000 VAC
- Deactivates lights during daylight
- Fully adjustable for 24 hr operation or custom applications
- 5 min of test time when power is turned on, rests to auto mode without further adjustment
- Made of tough, corrosion-resistant polycarbonate sensor housing
- Lamps not included
- Luminator® sensor with two weatherproof, corrosionproof floodlights and round mounting plate
- Pre-wired for easy installation
- Both floods and sensor have universal ball swivels for easy tool less adjustment
- Non-fixture
Description

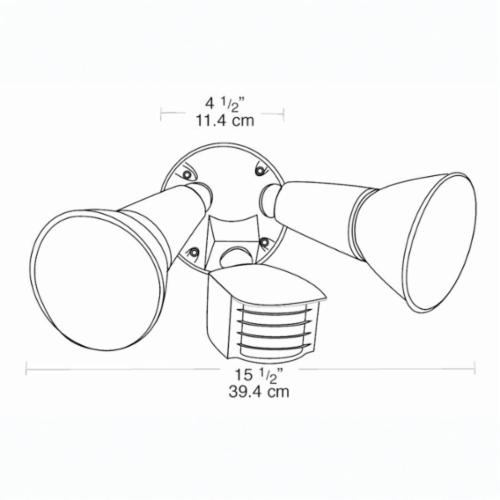

RAB Luminator® Floodlight Kit, 120 VAC, 300 W Fixture, 2.5 A, PAR38 Incandescent Lamp, 150 W Lamp, Medium Lamp Base, 2 Lamps, White Light, Vandal and Corrosion-Resistant/Double Look Down Lens, Wall Mounting, Polycarbonate Housing Material, 110 deg Sensing, 8 s to 10 min Time Delay, 15-1/2 in L x 4-1/2 in W Dimensions
Specifications
Amperage Rating |
2.5 A |
Dimensions |
15-1/2 in L x 4-1/2 in W |
Fixture Wattage |
300 W |
Housing Material |
Polycarbonate |
Lamp Base Type |
Medium |
Lamp Type |
PAR38 Incandescent |
Lamp Wattage |
150 W |
Lens Type |
Vandal and Corrosion-Resistant/Double Look Down |
Light Color |
White |
Mounting Type |
Wall |
Number of Lamps |
2 |
Sensing Angle |
110 deg |
Time Delay |
8 s to 10 min |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed |
Application |
Outdoor and Wet Location Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LU300W_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LU300W_Instruction_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LU300_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RDDLED2R_10D_20NHC_M_ST_Installation_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0819a0a5a98e9a391080c8c4c71c410adf731faf5ea2e790c7377d049d8d8fa5.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8933a65b2bcc8435639ee8e4903448ed111b58ff6872d9983defedf51f1e1476.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_LU300W_Specification_Sheet.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
