RAB R90W

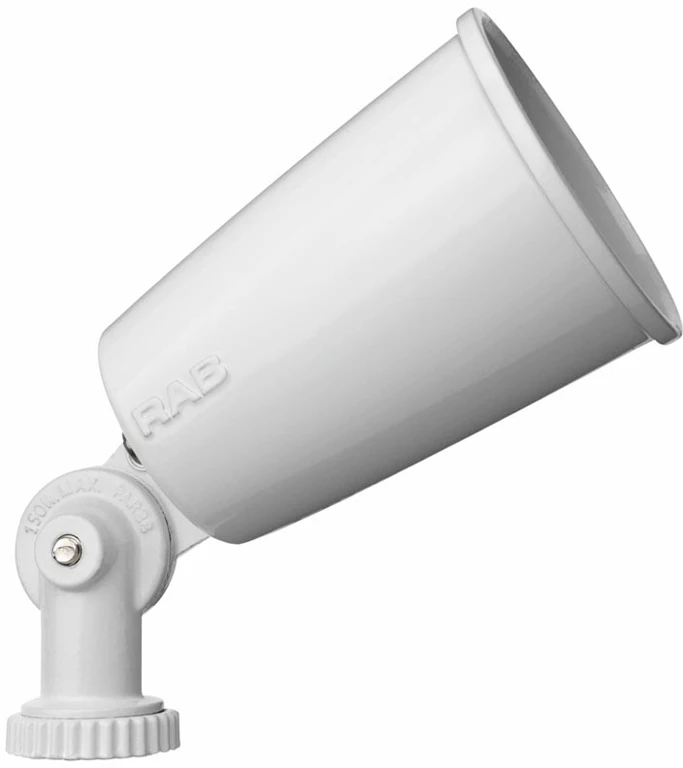

RAB R90W Landscape Non-Fixture Floodlight,) PAR-38 Lamp, 120 VAC, White Housing
Brand: RAB
Item ID: 355542
MPN: R90W
Login for Price
Features
- Molded, high temperature silicone gasket
- EZ grip locknut matches fixture finish and can be adjusted with fingers pliers or a screwdriver
- Sockets have all copper current carrying components
- Fully adjustable swivel with sure-grip locks
- 1/2 in NPS threaded arm with locking swivel fits all standard mounting covers
- Medium base PAR38 lamps up to 150 W, lamp not supplied
Description

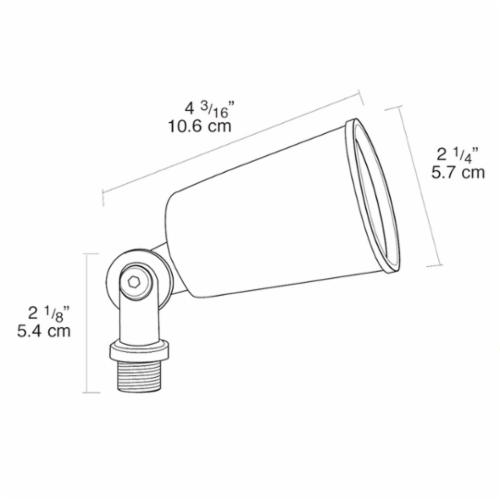

RAB Floodlight, Landscape Non-Fixture, 120 VAC, PAR-38 Lamp, 150 W Lamp, Medium Lamp Base Type, Aluminum Housing, White Housing, 2-1/4 in Dia x 4-3/16 in L
Specifications
Dimensions |
2-1/4 in Dia x 4-3/16 in L |
Housing Finish |
White |
Housing Material |
Aluminum |
Lamp Base Type |
Medium |
Lamp Type |
PAR38 |
Lamp Wattage |
150 W |
Type |
Landscape Non-Fixture |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed |
Application |
Wet Location Applications |
