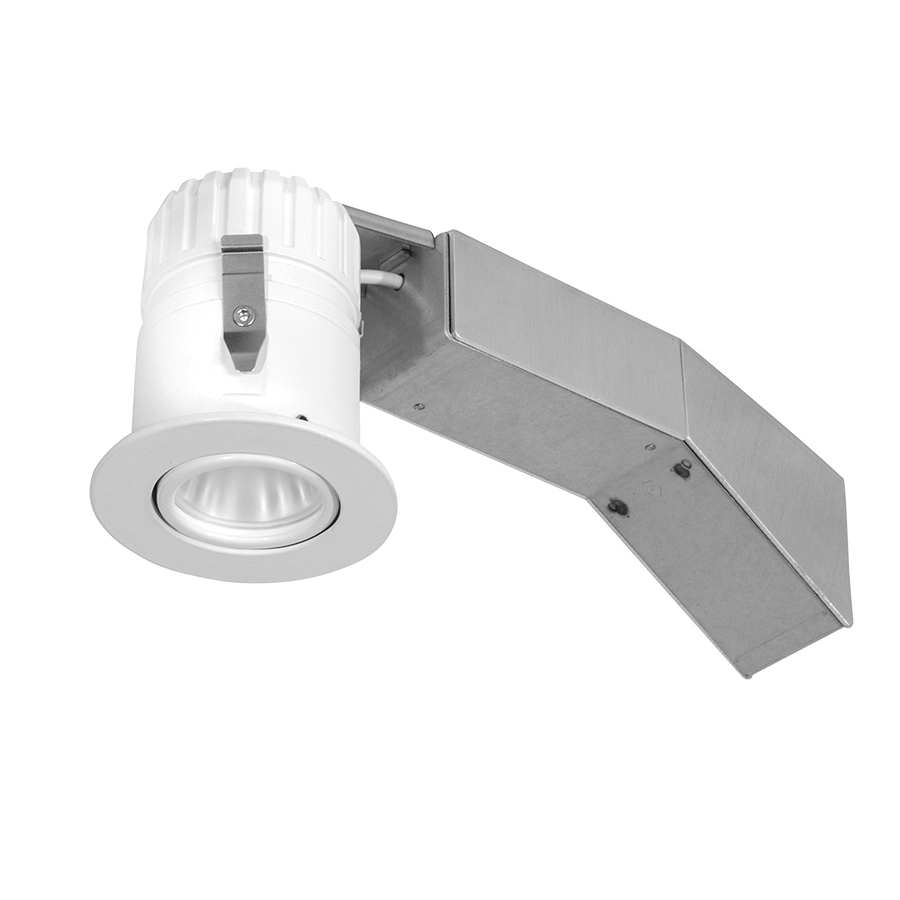

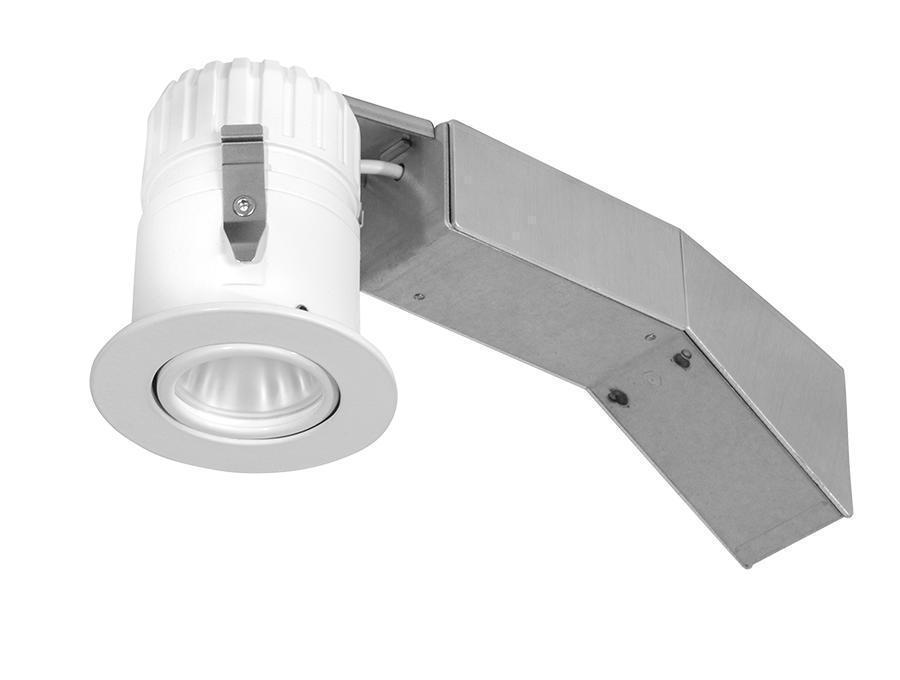

RAB RDLED2AR8-40YY-TW
RAB RDLED2AR8-40YY-TW 2 in Adjustable Round Low Profile Specification Grade Recessed Downlight With White Trim Ring, LED Lamp, 9 W Fixture, 120 VAC, Die Cast Aluminum Housing
Brand: RAB
Item ID: 453742
MPN: RDLED2AR8-40YY-TW
Login for Price
Features
- 8 W replaces 50 W MR16 with energy savings of 82%
- TRIAC dimmer compatibility for additional light control
- Precision-engineered optics deliver smooth light without hot spots or glare
Description
RAB Recessed Downlight, 2 in Adjustable Round Low Profile Specification Grade, Series: RDLED, 120 VAC, 9 W Fixture, 0.08 A, LED Lamp, 8 W Lamp, 71 Lumens/W Light Output, 1/2 in Trim Recessed Trim, 100000 hr Average Life, Residential Warm White Light, 2700 K Color Temperature, 80 CRI, Constant Current Ballast, Polycarbonate Diffuser Lens, 615 Lumens, Die Cast Aluminum Housing Material, 3-1/4 in H x 9 in W Dimensions
Specifications
Amperage Rating |
0.08 A |
Average Life |
100000 hr |
Ballast Type |
Constant Current |
Color Rendering Index (CRI) |
80 |
Color Temperature |
2700 K |
Dimensions |
3-1/4 in H x 9 in W |
Fixture Wattage |
9 W |
Housing Material |
Die Cast Aluminum |
Lamp Type |
LED |
Lamp Wattage |
8 W |
Lens Type |
Polycarbonate Diffuser |
Light Color |
Residential Warm White |
Light Output |
71 Lumens/W |
Lumens |
615 Lumens |
Recessed Trim Type |
1/2 in Trim |
Series |
RDLED |
Type |
2 in Adjustable Round Low Profile Specification Grade |
Voltage Rating |
120 VAC |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|ENERGY STAR Version 2.0|UL Listed |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RDLED2AR8-20YN-TB_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RDLED2AR8-20YN-TB_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RDLED2AR8-20YY-TW_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RDLED2AR8_20NHC_TB_Installation_Sheet.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RTLED2X2_19W_D10_Installation_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_339448c002464417e1194d64c97b5011badcd35de7b47a6883235e8ea64724bb.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6a604539ff62b1c35ec603f16df7ff4dacd88a8ceb08fcf734456a03fe722623.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RDLED2AR8-40YY-TW_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
