RAB SLIM15NW

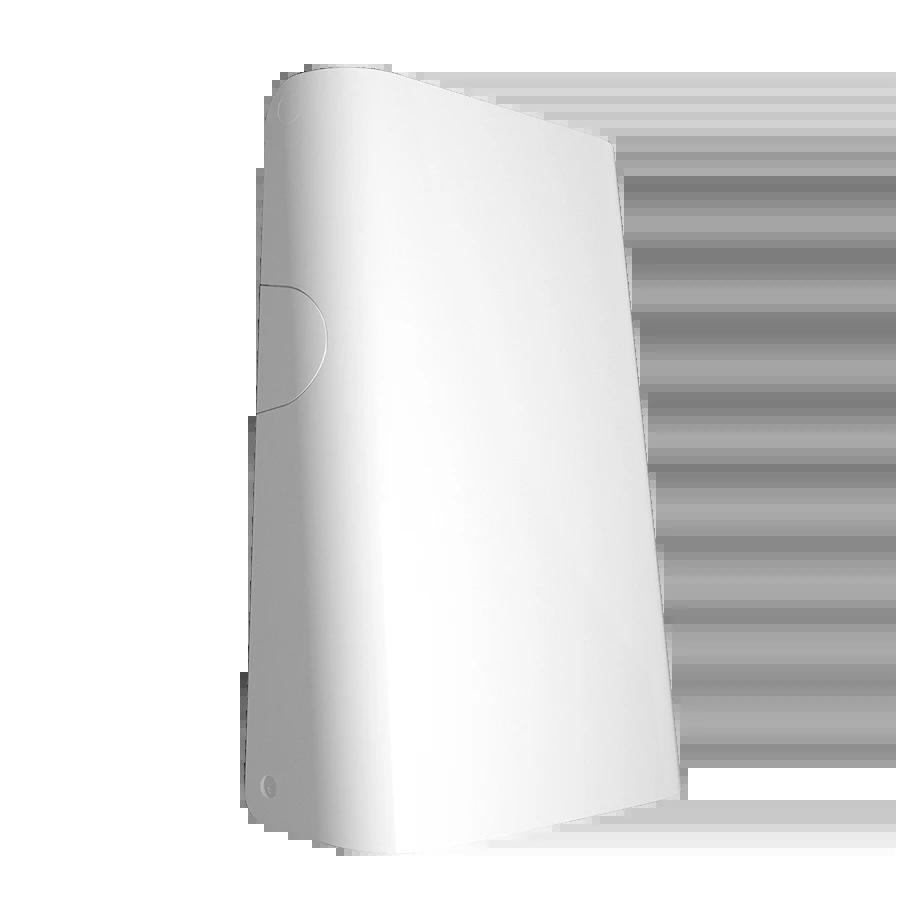

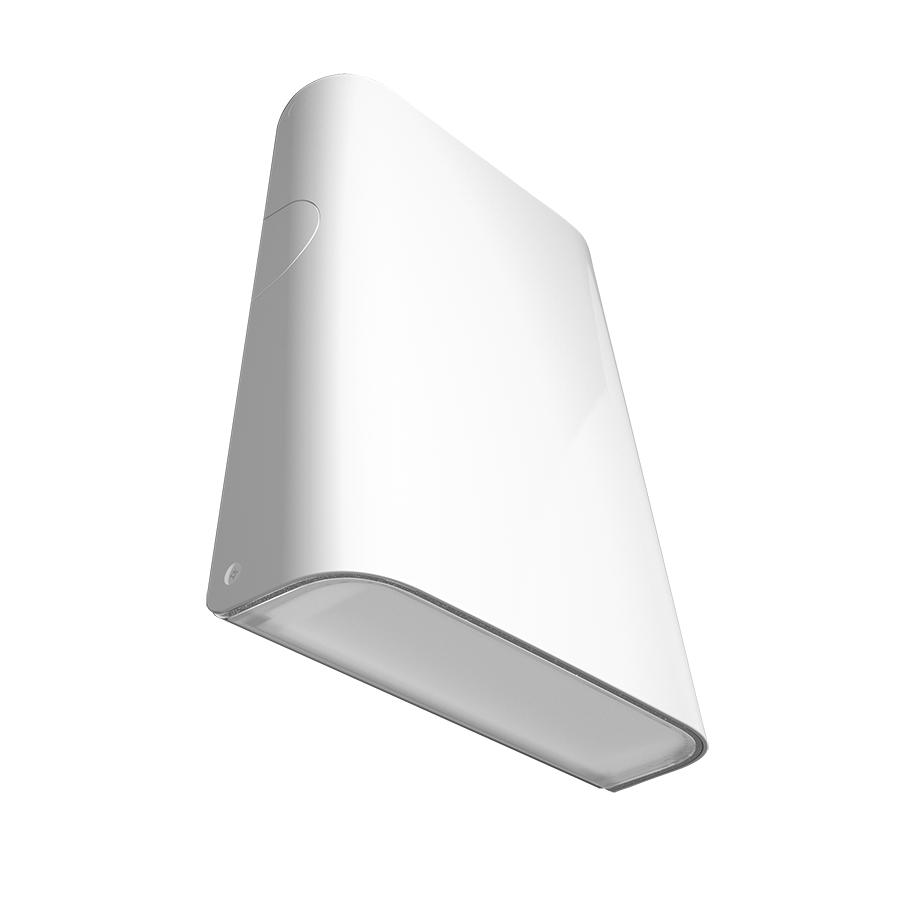

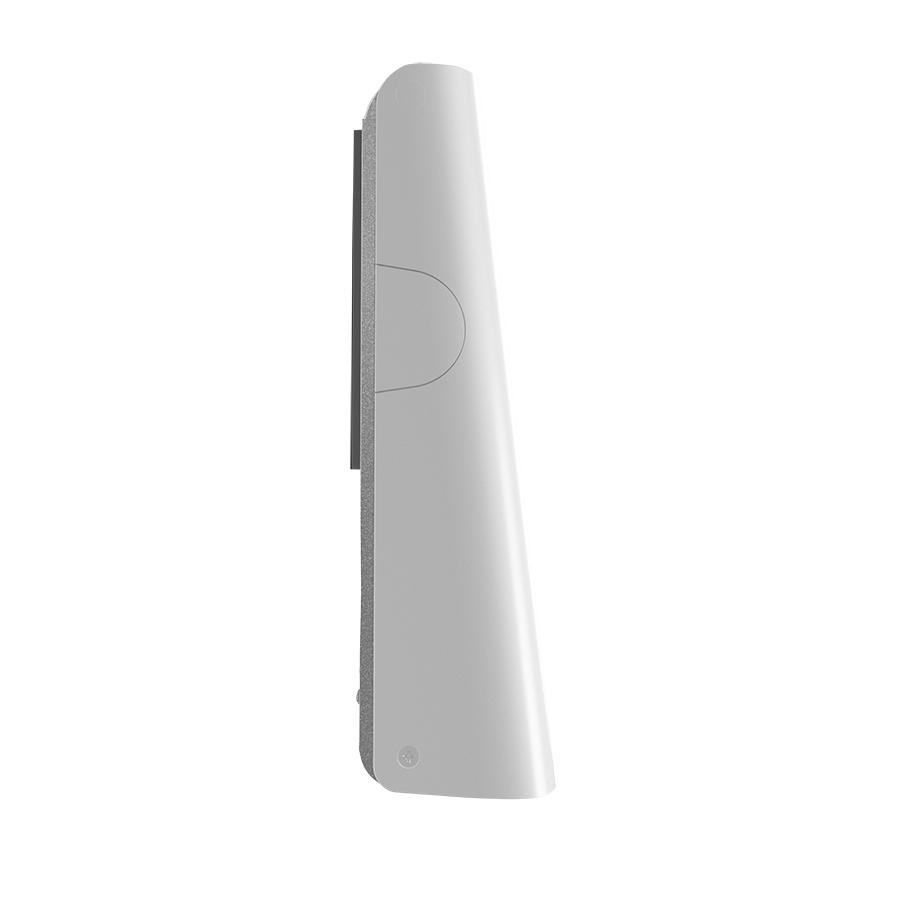

RAB SLIM15NW High Efficacy Slim Wallpack Adjustable, LED Lamp, 34.4/24.3/12.3 W Fixture, 120 to 277 V, White Housing
Brand: RAB
Item ID: 550827
MPN: SLIM15NW
Login for Price
Description
RAB, SLIM15NW, Slim Wallpack Adjustable, High Efficacy, 120 to 277 V, 34.4/24.3/12.3 W Fixture, 0.3/0.21/0.11 A, LED Lamp, 34/25/13 W Lamp, 10.4/11.6/113.7 Lumens/W Light Output, 50000 hr Average Life, 4000 K Color Temperature, 84/85 CRI, 0 to 10 V Dimming Ballast, Polycarbonate Lens, 3695/2711/1398 Lumens, IP65 Enclosure, Snap Mounting, Die Cast Aluminum/Polycarbonate Housing Material, White Housing Finish, 9 in H x 2-1/2 in D Dimensions
Specifications
Amperage Rating |
0.3/0.21/0.11 A |
Average Life |
50000 hr |
Ballast Type |
0 to 10 V Dimming |
Color Rendering Index (CRI) |
84/85 |
Color Temperature |
4000 K |
Dimensions |
9 in H x 2-1/2 in D |
Enclosure Type |
IP65 |
Fixture Wattage |
34.4/24.3/12.3 W |
Housing Finish |
White |
Housing Material |
Die Cast Aluminum/Polycarbonate |
Lamp Type |
LED |
Lamp Wattage |
34/25/13 W |
Lens Type |
Polycarbonate |
Light Output |
10.4/11.6/113.7 Lumens/W |
Lumens |
3695/2711/1398 Lumens |
Mounting Type |
Snap |
Type |
High Efficacy |
Voltage Rating |
120 to 277 V |
Standard Approval |
UL Listed|IESNA LM-79/LM-80|DLC 5.1 Requirements|BAA Compliant|IP65|Trade Agreements Act Compliant|RoHS Compliant |
Application |
Suitable for Wet Locations |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM15_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM15_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM15_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM15_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM15NW_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM15NW_Specification_Sheet.pdf
