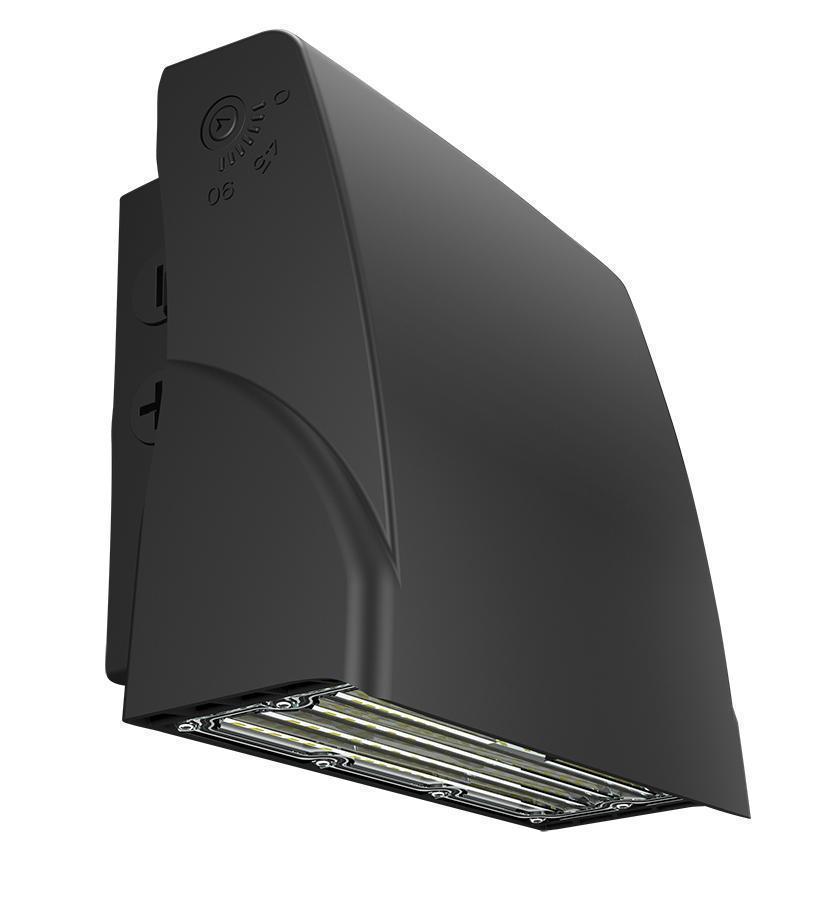

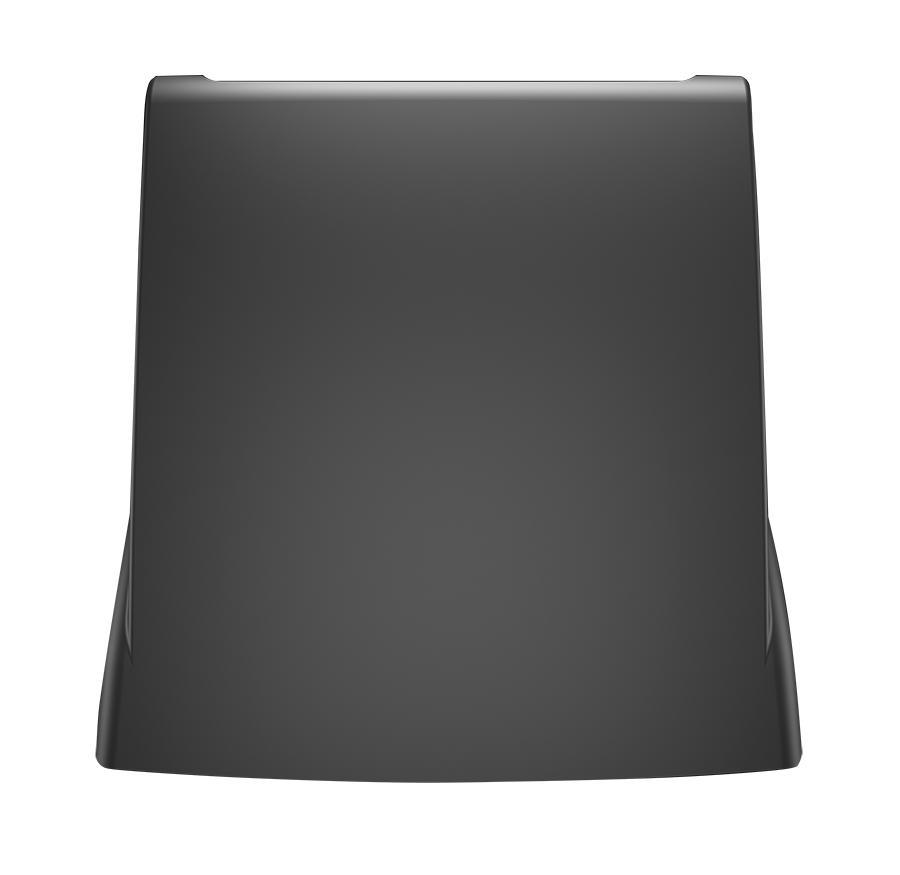

RAB SLIM17FA15ADJ
RAB SLIM17FA15ADJ SLIM Outdoor Wallpack, 14 W Fixture, 120, 208, 240, 277 V, Bronze Housing
Brand: RAB
Item ID: 514914
MPN: SLIM17FA15ADJ
Login for Price
Features
- Selectable CCT
- DLC Premium
- Adjustable cutoff
- Integrated photocell
- 0-10V dimming standard
- 0-10V dimmable
- Adjustable from 0° to 90° (in 15° increments)
- Durable die-cast aluminum housing
- Integrated 120-277V button photocell
- Hinged wiring access and conduit entries on the back, sides, top and bottom make installation a snap
Description
RAB, SLIM17FA15ADJ, Wallpack, Outdoor, Series: SLIM, 120, 208, 240, 277 V, 14 W Fixture, 0.13, 0.07, 0.06, 0.05 A, 15 W Lamp, 124 Lumens/W Light Output, 100000 hrs Average Life, 3000, 4000, 5000 K Color Temperature, 70 CRI, Constant Current Ballast, Polycarbonate Lens, 1761, 1904, 1852 Lumens, IP65 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 7.3 in H x 4.5 in W x 7.16 in D Dimensions
Specifications
Amperage Rating |
0.13, 0.07, 0.06, 0.05 A |
Average Life |
100000 hrs |
Ballast Type |
Constant Current |
Color Rendering Index (CRI) |
70 CRI |
Color Temperature |
3000, 4000, 5000 K |
Dimensions |
7.3 in H x 4.5 in W x 7.16 in D |
Enclosure Type |
IP65 |
Fixture Wattage |
14 W |
Housing Finish |
Bronze |
Housing Material |
Die Cast Aluminum |
Lamp Wattage |
15 W |
Lens Type |
Polycarbonate |
Light Output |
124 Lumens/W |
Lumens |
1761, 1904, 1852 Lumens |
Mounting Type |
Wall |
Series |
SLIM |
Type |
Outdoor |
Voltage Rating |
120, 208, 240, 277 V |
Standard Approval |
UL Listed|BAA Compliant|RoHS-Compliant|DLC Listed|IESNA LM-79 and LM-80 |
Application |
For Wet Locations |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_SLIM17FA15ADJ_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM17FA15ADJ_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_SLIM17FA15ADJ_Specification_Sheet.pdf
