RAB SMS500W

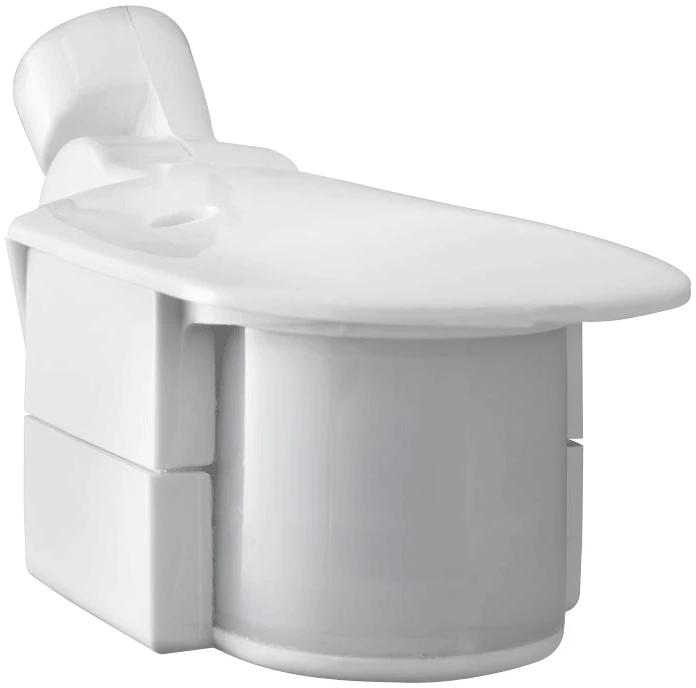

RAB SMS500W Mini Non-Fixture Outdoor Motion Sensor, 120 VAC, Photoelectric Sensor, 30 ft Coverage, 180 deg Viewing, Wall Mount
Brand: RAB
Item ID: 189156
MPN: SMS500W
Login for Price
Features
- Surge protected
- Quick installation with 5 s test time and auto test logic
- LED detection and "on guard" indicator
- Protected manual override with auto-reset after 8 hr or at dawn
- Adjustable ambient light sensing
- Auto mode starts after 4 min of testing, no adjustment needed
- Time, ambient light and sensitivity adjustments
- LED glows red day and night for "on guard" deterrence LED detection indicator
- Withstands up to 3000 VAC
- Relay on/OFF model switches 240 W when lights are mounted to sensor, 500 W incandescent or 240 W fluorescent of remotely mounted lighting at 120 VAC
- Compatible with most electronic ballasts, not compatible with instant start ballasts
- Double flip wall switch logic prevents activation by brief power outages, resets after 8 hr, no extra wiring needed
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
Description
RAB Outdoor Motion Sensor, Mini Non-Fixture, 120 VAC, 5 A, 500 W Power, Photoelectric Sensor, 30 ft Coverage, 180 deg Viewing, 5 s to 15 min Time Delay, Fluorescent/Incandescent Lamp, 60 Hz Response, Wall Mounting, Polycarbonate, White, 1-5/8 in H x 4 in D Dimensions
Specifications
Amperage Rating |
5 A |
Color |
White |
Coverage |
30 ft |
Dimensions |
1-5/8 in H x 4 in D |
Lamp Type |
Fluorescent/Incandescent |
Material |
Polycarbonate |
Mounting Type |
Wall |
Power Rating |
500 W |
Response Frequency |
60 Hz |
Sensor Type |
Photoelectric |
Time Delay |
5 s to 15 min |
Type |
Mini Non-Fixture |
Viewing Angle |
180 deg |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed |
Application |
Wet Locations and Indoor/Outdoor Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SMS500W_Installation_Manual.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4eb84b3ad6a63a935a8ad06915b71fc13c6db90a50f9959ba30520dca5b6bee4.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b7540d767585d8674b104797b271a20c6d1462a02a3a446bd7f2fedd755fa1a3.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SMS500W_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
