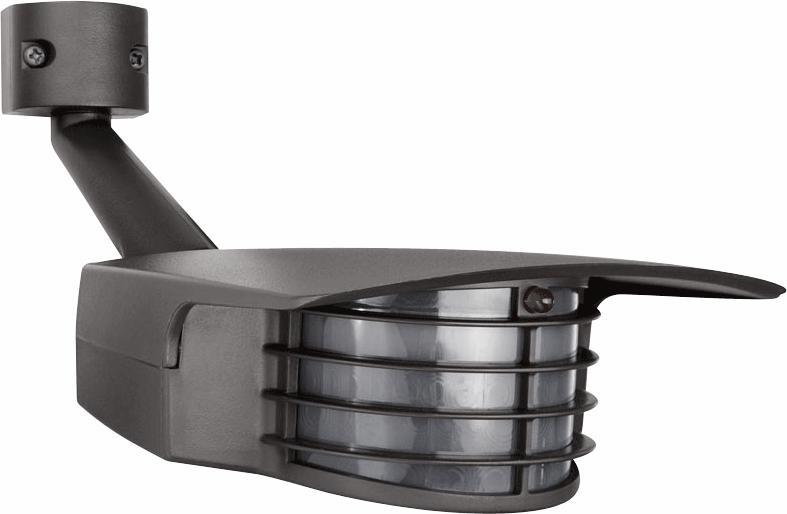

RAB STL200

• Temperature compensation
• Radio frequency immunity
• LED detection and "on guard" indicator
• Color matched vandal-resistant lens and grill
• Protected manual override with auto-reset
• Can be wired in parallel
• Shows when sensor is detecting in daytime and glows red at night for "on guard" deterrence LED detection indicator
• Precision die cast aluminum 1/2 in NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers
• Withstands up to 6000 VAC
• 1000 W incandescent at 120 V, 8 A switching capacity
• Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
• Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
• Circuits fully shielded for maximum radio frequency immunity RF immunity
• Adjustable from 100 to 30% detector sensitivity
• Dark lens with bronze units, white lens with white units color matched lens
• Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
• Keeps sensing pattern level for fast, error free installation horizontal lock, no tool joints

RAB Stealth Sensor, Non-Fixture, 120 VAC, 8 A, 1000 W Power, Photoelectric Sensor, 200 deg Viewing, 5 s to 12 min Time Delay, Incandescent Lamp, 60 Hz Response, Fixture Mounting, Polycarbonate, Bronze, 3-1/2 in H x 5 in W x 5 in D Dimensions
