RAB STL200W-LED

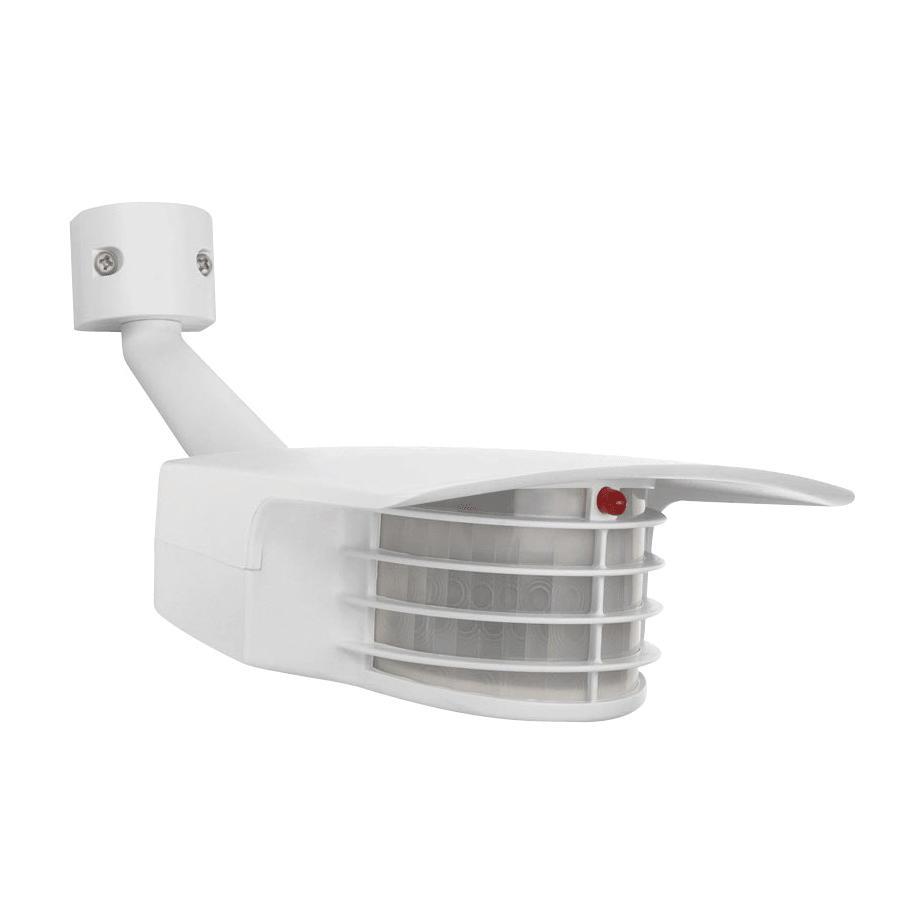

RAB STEALTH STL200W-LED Occupancy Sensor, 120 VAC, 50 ft Coverage, 200 deg Viewing
Brand: RAB
Item ID: 466413
MPN: STL200W-LED
Login for Price
Features
- Temperature compensation
- Radio frequency immunity
- 6000 VAC surge protection
- LED detection and "on guard" indicator
- Color matched vandal resistant lens and grill
- Protected manual override with auto reset
- Can be wired in parallel
Description
RAB STEALTH Occupancy Sensor, 120 VAC, 8 A, 300 W Power, 50 ft Coverage, 200 deg Viewing, 5 s to 12 min Time Delay, LED Lamp, White, 5 in L x 5 in W x 3-1/2 in H Dimensions
Specifications
Amperage Rating |
8 A |
Color |
White |
Coverage |
50 ft |
Dimensions |
5 in L x 5 in W x 3-1/2 in H |
Lamp Type |
LED |
Power Rating |
300 W |
Time Delay |
5 s to 12 min |
Viewing Angle |
200 deg |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed |
Application |
Building Perimeter Protection Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_babc0fe6109aaabd87dcd9485c1e38f9fd630e89651e3d491e79f633a05a8cf6.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6605361512ea4e530039f026d99bfc8fd4576d206b83b66e6bd65fde12273290.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL110_277_Installation_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL200W-LED_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL200W-LED_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_83a7400da2976e8caf7a1e5c2c251b92ddf0a9b1fa1cc3a6128f36df728a2953.webp
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0ff8e5fda4488bf64c7891bbd9e3a7a5b436530064622578a6dac88a2bbbf753.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_364e7c3473de63b9253e337332dade857dbb393278cd3e3fef52c048326945c8.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL200W-LED_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
