RAB STL360

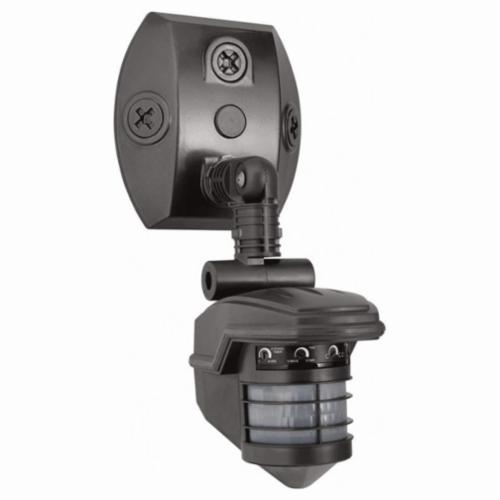

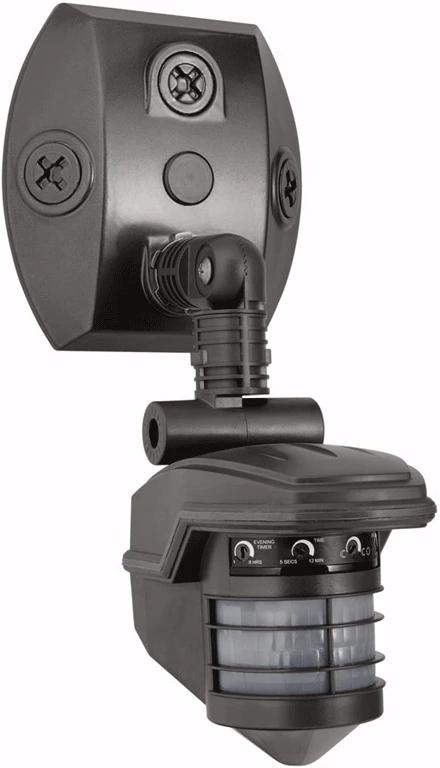

RAB STL360 Non-Fixture Super Stealth Sensor, 120 VAC, Photoelectric Sensor, 360 deg Viewing, Threaded Mount
Brand: RAB
Item ID: 353346
MPN: STL360
Login for Price
Features
- Senses 180 deg out/360 deg down for total detection
- Radio frequency immunity
- Color matched vandal-resistant lens and grill
- 1000 W switching capacity
- Protected manual override with auto-reset
- Can be wired in parallel
- Pre-wired and pre-assembled on CU4 universal EZ plate
- CU4 plate allows the sensor to be mounted under a soffit, customized press apply lens mask included to reduce coverage easily
- Withstands up to 6000 VAC
- Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
- Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- Adjustable from 100 to 30% detector sensitivity
- Keeps lights on for 1 to 8 hr after dusk, then sensor is motion activated until dawn
- STL360's full coverage pattern reduces need for aiming and adjustment
- Minimizes false triggers advanced detection logic
- 3 LEDs continually scan back and forth scanning LEDs
Description
RAB Stealth Sensor, Non-Fixture Super, 120 VAC, 8 A, 1000 W Power, Photoelectric Sensor, 360 deg Viewing, 5 s to 12 min Time Delay, Incandescent Lamp, 60 Hz Response, Threaded Mounting, Aluminum, Ivory, 4-3/8 in H x 3 in W x 4-3/4 in D Dimensions
Specifications
Amperage Rating |
8 A |
Color |
Ivory |
Dimensions |
4-3/8 in H x 3 in W x 4-3/4 in D |
Lamp Type |
Incandescent |
Material |
Aluminum |
Mounting Type |
Threaded |
Power Rating |
1000 W |
Response Frequency |
60 Hz |
Sensor Type |
Photoelectric |
Time Delay |
5 s to 12 min |
Type |
Non-Fixture Super |
Viewing Angle |
360 deg |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed |
Application |
Wet Locations and Indoor/Outdoor Applications |
Documentation
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_RDDLED2R_10D_20NHC_M_BT_Installation_Sheet.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Installation_Manual.pdf
Instruction/Installation Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Installation_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1b5c25da1220edb7e86c3a3e3ae178989d91e37db1fbb1280bbf32f9aa1d0be9.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_948b6a21a9ef9012d644670f17d2e602c9f3b11ab5cb1647305fce1fbb61eacc.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Specification_Sheet.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
