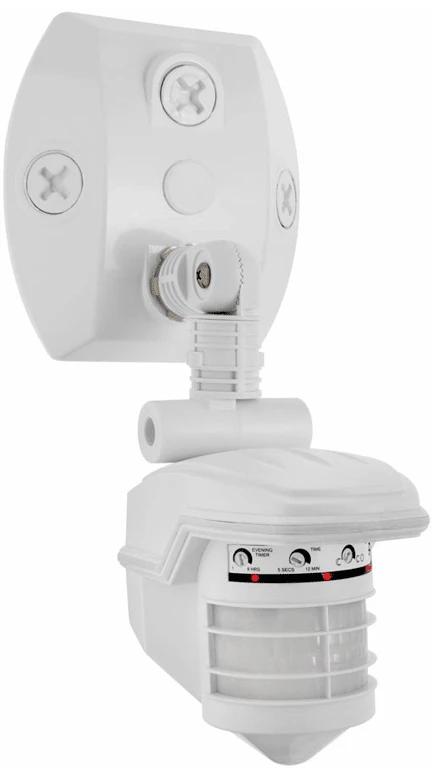

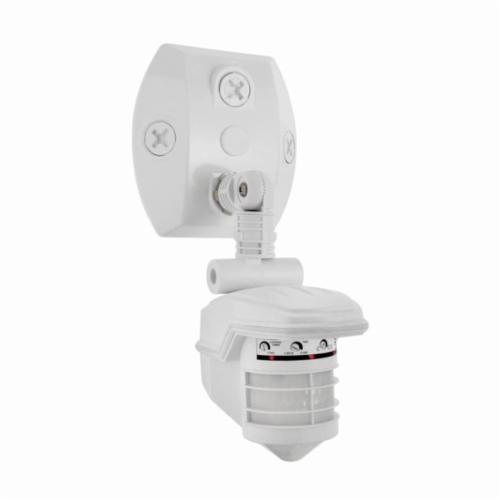

RAB STL360W
RAB STL360W Non-Fixture Super Stealth Sensor, 120 VAC, Photoelectric Sensor, 360 deg Viewing, Fixture Mount
Brand: RAB
Item ID: 353347
MPN: STL360W
Login for Price
Features
- Senses 180 deg out/360 deg down for total detection
- Radio frequency immunity
- Color matched vandal-resistant lens and grill
- 1000 W switching capacity
- Protected manual override with auto-reset
- Can be wired in parallel
- Pre-wired and pre-assembled on CU4 universal EZ plate
- Quick test time
- Withstands up to 6000 VAC
- Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
- Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- Adjustable from 100 to 30% detector sensitivity
- Keeps lights on for 1 to 8 hr after dusk, then sensor is motion activated until dawn
- STL360's full coverage pattern reduces need for aiming and adjustment
- Minimizes false triggers advanced detection logic
- 3 LEDs continually scan back and forth scanning LEDs
Description
RAB Stealth Sensor, Non-Fixture Super, 120 VAC, 8 A, 1000 W Power, Photoelectric Sensor, 360 deg Viewing, 5 s to 12 min Time Delay, Incandescent Lamp, 60 Hz Response, Fixture Mounting, Polycarbonate, White, 4-3/8 in H x 3 in W x 4-3/4 in D Dimensions
Specifications
Amperage Rating |
8 A |
Color |
White |
Dimensions |
4-3/8 in H x 3 in W x 4-3/4 in D |
Lamp Type |
Incandescent |
Material |
Polycarbonate |
Mounting Type |
Fixture |
Power Rating |
1000 W |
Response Frequency |
60 Hz |
Sensor Type |
Photoelectric |
Time Delay |
5 s to 12 min |
Type |
Non-Fixture Super |
Viewing Angle |
360 deg |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed|cULus Listed |
Application |
Wet Locations and Indoor/Outdoor Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Installation_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360_Instruction_Installation_Manual.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2864145d455dddfdf407cf7c5937983b7e4d6f6ed3e657b03c81ae490026aab.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b784b8717907223470571490445a45b88b4b703297de9e2b4da8475e9f66abb7.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_STL360W_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619.pdf
