RAB T34-2X2-30N/D10

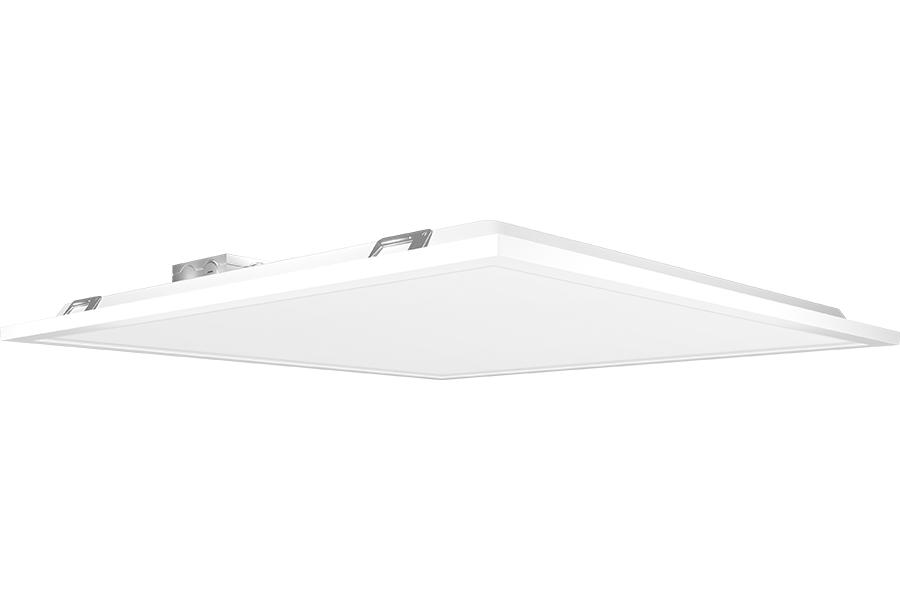

RAB T34-2X2-30N/D10 T17 Backlit Indoor Troffer, LED Lamp, 120/277 VAC, Galvanized Steel/Plastic Housing
Brand: RAB
Item ID: 484475
MPN: T34-2X2-30N/D10
Login for Price
Features
- 0.24 A at 120 VAC, 0.15 A at 208 VAC, 0.13 A at 240 VAC, 0.11 A at 277 VAC amperage rating
Description
RAB Indoor Troffer, Backlit, Series: T17, 120/277 VAC, 0.24 A, LED Lamp, 30 W Lamp, 117.7 Lumens/W Light Output, 50000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 80 CRI, 10% 0 to 10 V Standard Down Dimming Ballast, Frosted Polystyrene Lens, 3284 Lumens, Ceiling Mounting, Galvanized Steel/Plastic Housing Material, 2 ft H x 2 ft W x 2.84 in D Dimensions
Specifications
Amperage Rating |
0.24 A |
Average Life |
50000 hr |
Ballast Type |
10% 0 to 10 V Standard Down Dimming |
Color Rendering Index (CRI) |
80 |
Color Temperature |
4000 K |
Dimensions |
2 ft H x 2 ft W x 2.84 in D |
Housing Material |
Galvanized Steel/Plastic |
Lamp Type |
LED |
Lamp Wattage |
30 W |
Lens Type |
Frosted Polystyrene |
Light Color |
Neutral White |
Light Output |
117.7 Lumens/W |
Lumens |
3284 Lumens |
Mounting Type |
Ceiling |
Series |
T17 |
Type |
Backlit |
Voltage Rating |
120/277 VAC |
Standard Approval |
UL Listed for Damp Locations|ANSI C78.377-2017|CSA Approved |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c4746f30e98c34f739991dbecef537deda4a55c281da8fc3df96785f93521bfb.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34-2X2-30N_D10_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34-2X2-30N_D10_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34-2X2-30_D10_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34_2X2_30_D10_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2231547e46d6ba0563a0bf9b36d5ffe6475063a694507ae6f8173af3c0ddc0d0.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7751a9e30281066916742b6fa0f14fe784871c40140763fa821107c5f28b060a.pdf
Specification Sheet 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34-2X2-30N_D10_Specification_Sheet.pdf
