RAB T34FA-2X2

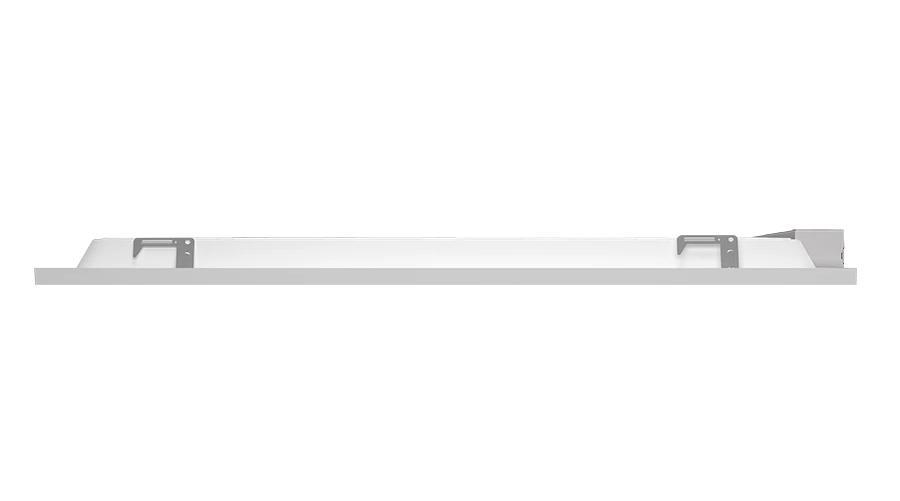

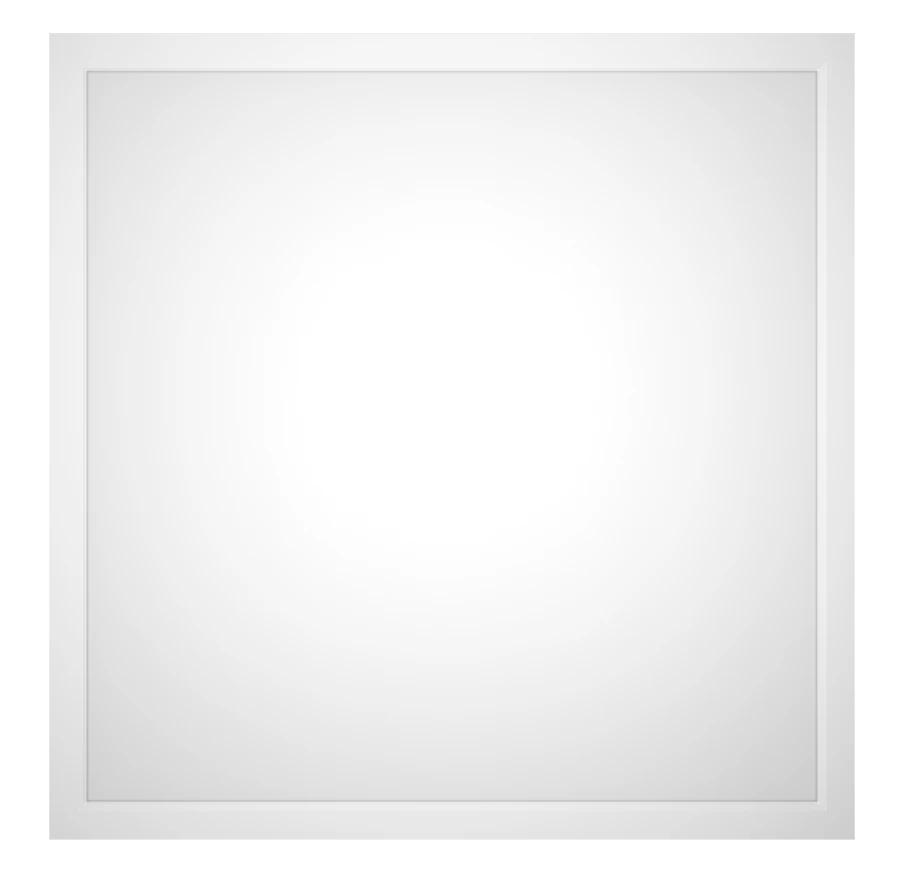

RAB T34FA-2X2 T34 Field-Adjustable Panels & Troffers, LED Lamp, 120 to 277 V, Galvanized Steel Housing
Brand: RAB
Item ID: 526885
MPN: T34FA-2X2
Login for Price
Description
RAB, T34FA-2X2, Panels & Troffers, Field-Adjustable, Series: T34, 120 to 277 V, 0.17, 0.10, 0.09, 0.08, 0.25, 0.15, 0.13, 0.11, 0.34, 0.20 A, LED Lamp, 20, 30, 40 W Lamp, Recessed into T-Grid Ceiling Lamp Base, 118.8 to 134.1 lm/W Light Output, 2 x 2 ft Ceiling Opening, 50000 hr Average Life, Warm Neutral Light, 3500, 4000, 5000 K Color Temperature, 81 to 84 CRI, 0 to 10 V Dimmable Ballast, Frosted Polystyrene Lens, 2279 to 4328 Lumens, Galvanized Steel Housing Material, 603 in H x 603 in W x 40.9 in D Dimensions
Specifications
Amperage Rating |
0.17, 0.10, 0.09, 0.08, 0.25, 0.15, 0.13, 0.11, 0.34, 0.20 A |
Average Life |
50000 hr |
Ballast Type |
0 to 10 V Dimmable |
Ceiling Opening |
2 x 2 ft |
Color Rendering Index (CRI) |
81 to 84 CRI |
Color Temperature |
3500, 4000, 5000 K |
Dimensions |
603 in H x 603 in W x 40.9 in D |
Housing Material |
Galvanized Steel |
Lamp Base Type |
Recessed into T-Grid Ceiling |
Lamp Type |
LED |
Lamp Wattage |
20, 30, 40 W |
Lens Type |
Frosted Polystyrene |
Light Color |
Warm Neutral |
Light Output |
118.8 to 134.1 lm/W |
Lumens |
2279 to 4328 Lumens |
Mounting Type |
Recessed |
Series |
T34 |
Type |
Field-Adjustable |
Voltage Rating |
120 to 277 V |
Standard Approval |
BAA Compliant|CCEA Compliant|DLC Qualified|RoHS|IESNA LM-79 and LM-80|UL Listed |
Application |
Suitable for Indoor |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34FA-2X2_LCB_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34FA_2X2_E_Installation_Manual.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34FA-2X2_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_T34FA_2X2_Specification_Sheet.pdf
