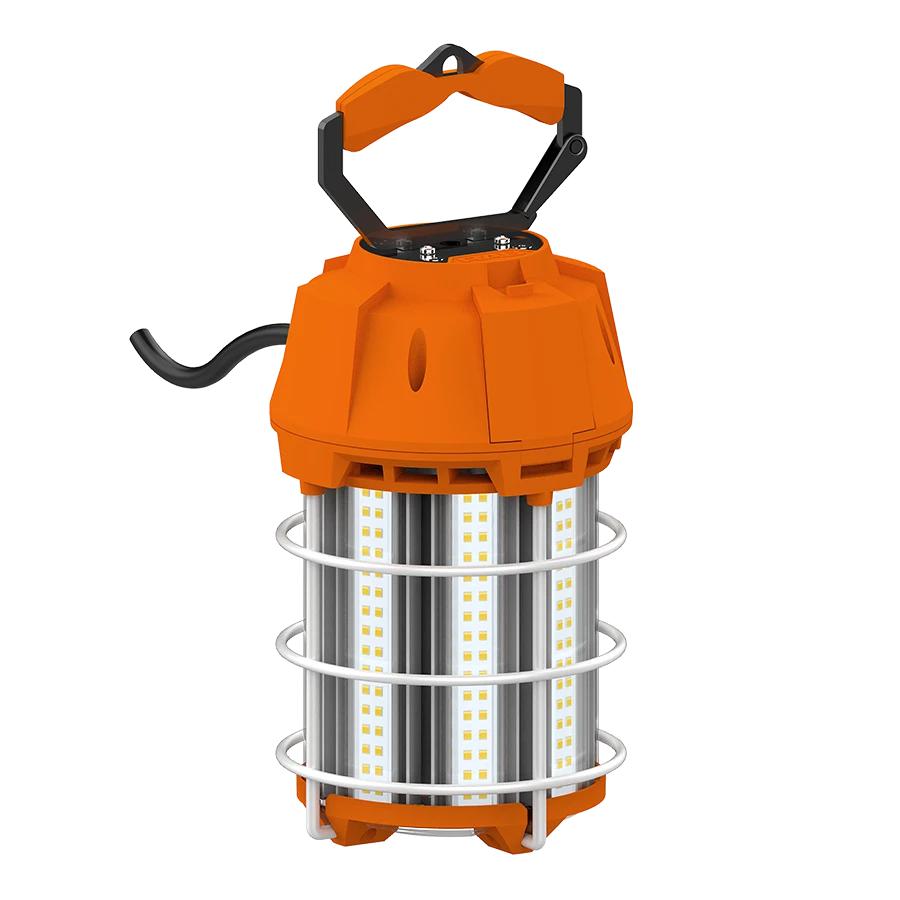

RAB TEMP-100-850
RAB TEMP-100-850 HID Replacement Temporary Work Light, LED Lamp, 120 V
Brand: RAB
Item ID: 511175
MPN: TEMP-100-850
Login for Price
Features
- Impact-resistant, can handle demanding construction site environments
- Lightweight design with high output
- US cord and plug, linkable up to 6 units
- IP64 water and dust-resistant
- 6 kV surge protection built-in
- Meets OSHA compliance standard 1915.82(b) for temporary lighting - 30 ft spacing for minimum of 5 ft candles
Description
RAB HID Replacement Temporary Work Light, 120 V, 100 W Fixture, 60 Hz Frequency, LED Lamp, 12000 Lumens, 50000 hr Average Life, 5000 K Color Temperature, 80 CRI, 6 ft US Plug Cord, Polycarbonate, Construction Orange, 5-1/9 in Dia x 11-5/16 in L Dimensions
Specifications
Average Life |
50000 hr |
Color Rendering Index (CRI) |
80 |
Color Temperature |
5000 K |
Color |
Construction Orange |
Cord Type |
6 ft US Plug |
Dimensions |
5-1/9 in Dia x 11-5/16 in L |
Fixture Wattage |
100 W |
Frequency Rating |
60 Hz |
Lamp Type |
LED |
Lumens |
12000 Lumens |
Material |
Polycarbonate |
Voltage Rating |
120 V |
Standard Approval |
FCC Certified|OSHA 1915.82(b)|UL Listed |
Application |
For use in dry or damp locations |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_CDLED2PC_10W_20D927_K_Catalog.pdf
Instruction/Installation Manual 3 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_CDLED2PC_10W_20D927_K_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_TEMP-100-850_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_TEMP-60-850_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_TEMP-60-850_Instruction_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_TEMP100850_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c9e1dfabc73f0ae06c94dda15e3ccd88d31478c7a4280f34c8bbcc4993ec8da4.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_CDLED4PC_20W_80D940_S_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_TEMP-100-850_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_TEMP-100-850_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_TEMP100850_Specification_Sheet.pdf
