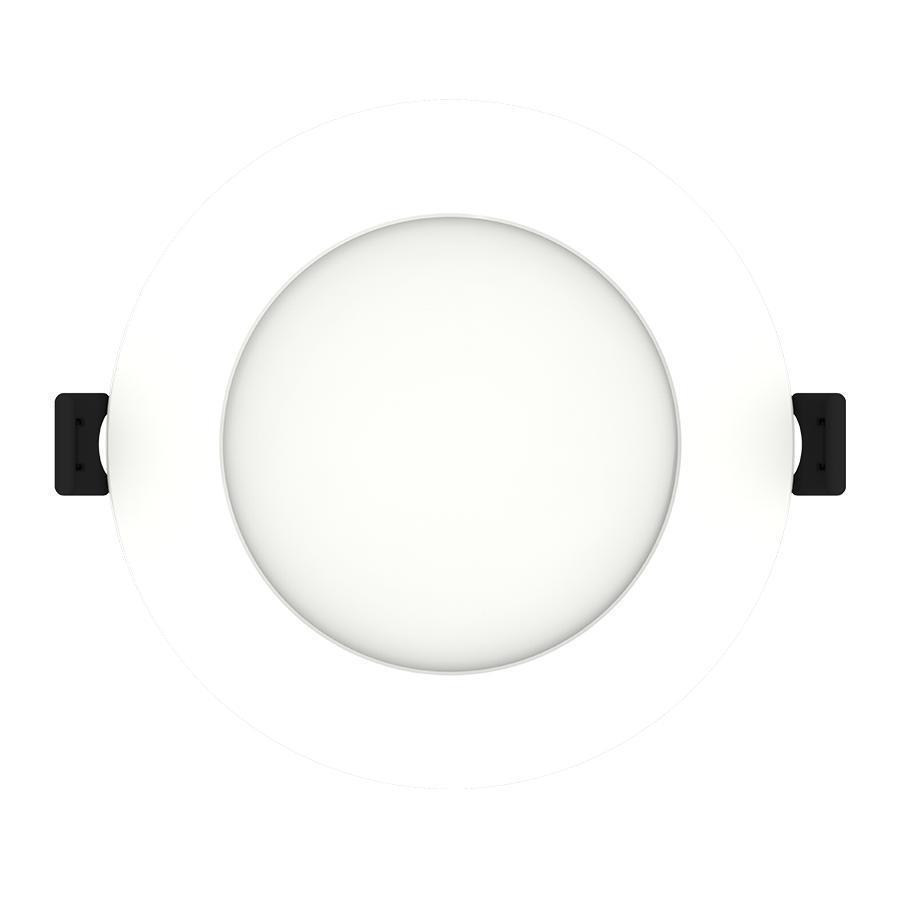

RAB WFRL4R99FA120WS
RAB WFRL4R99FA120WS WFRL Wafer Direct Mount, LED Lamp, 120 V, Plastic Housing
Brand: RAB
Item ID: 525109
MPN: WFRL4R99FA120WS
Login for Price
Features
- IC and airtight rated
- Robust, die cast aluminum construction
- Spring loaded retention clips
- Super slim Edge-lit fixture for thin fixture depth
- High CRI of 90+ for true color rendering
- New construction or retrofit applications
- Super slim and edge-lit
- No recessed housing or J-box required
- Smooth diffused uniform light distribution
- Dimmable down to 5% on compatible dimmers
Description
RAB, WFRL4R99FA120WS, Wafer Direct Mount, Series: WFRL, 120 V, 0.10 A, Edge-Lit Lighting Technology, LED Lamp, 9 W Lamp, 72 Lumens/W Light Output, Baffle Recessed Trim, 50000 hrs Average Life, 2700, 3000, 3500, 4000, 5000 K Color Temperature, 90 CRI, Acrylic Lens, 650, 690, 720, 735 Lumens, Ceiling Mounting, Plastic Housing Material, 0.5 in H x 3.13 in Dia Dimensions
Specifications
Amperage Rating |
0.10 A |
Average Life |
50000 hrs |
Color Rendering Index (CRI) |
90 CRI |
Color Temperature |
2700, 3000, 3500, 4000, 5000 K |
Dimensions |
0.5 in H x 3.13 in Dia |
Housing Material |
Plastic |
Lamp Type |
LED |
Lamp Wattage |
9 W |
Lens Type |
Acrylic |
Light Output |
72 Lumens/W |
Lighting Technology |
Edge-Lit |
Lumens |
650, 690, 720, 735 Lumens |
Mounting Type |
Ceiling |
Recessed Trim Type |
Baffle |
Series |
WFRL |
Voltage Rating |
120 V |
Standard Approval |
UL Listed|BAA Compliant|RoHS-Compliant|Trade Agreements Act|T24 JA8 Compliant|Airtight ASTM E283|Safety Listing |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_WFRL4R99FA120WB_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_WFRL4R99FA120WB_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_WFRL4R99FA120WS_Specification_Sheet.pdf
