RAB WP1XFU29

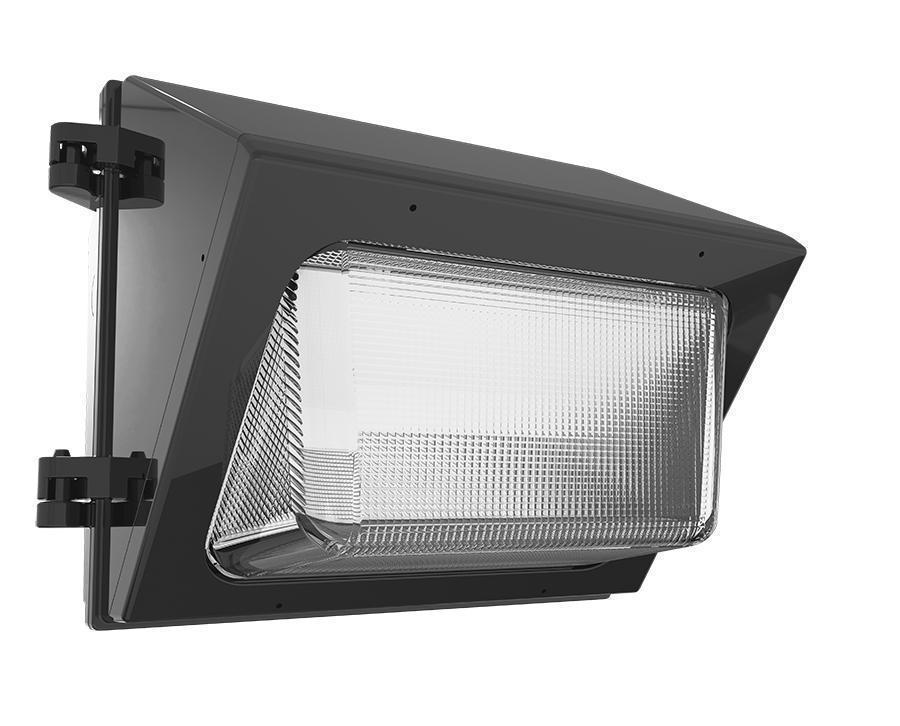

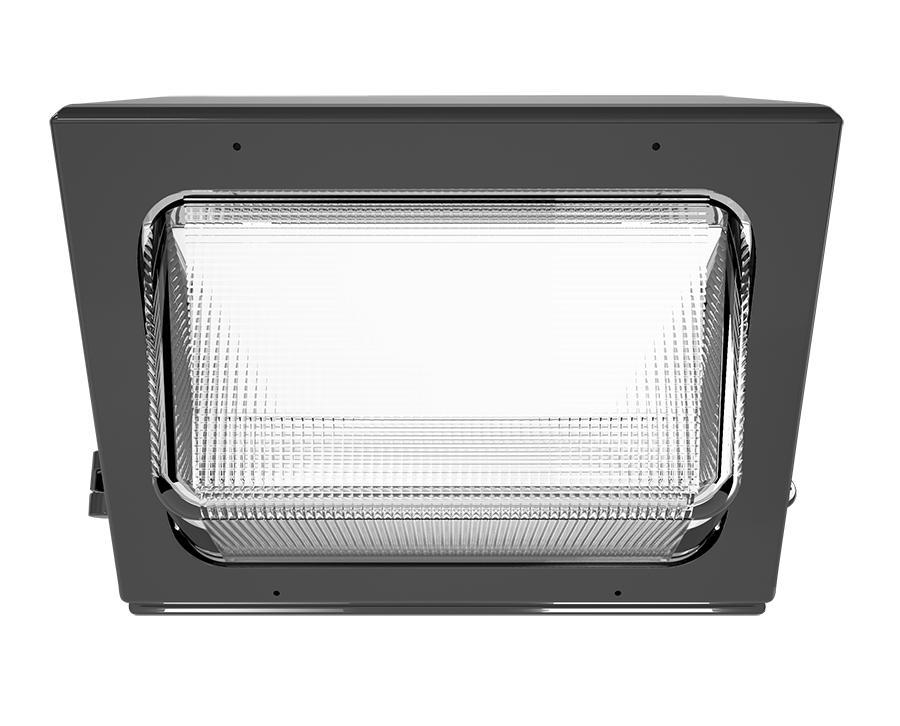

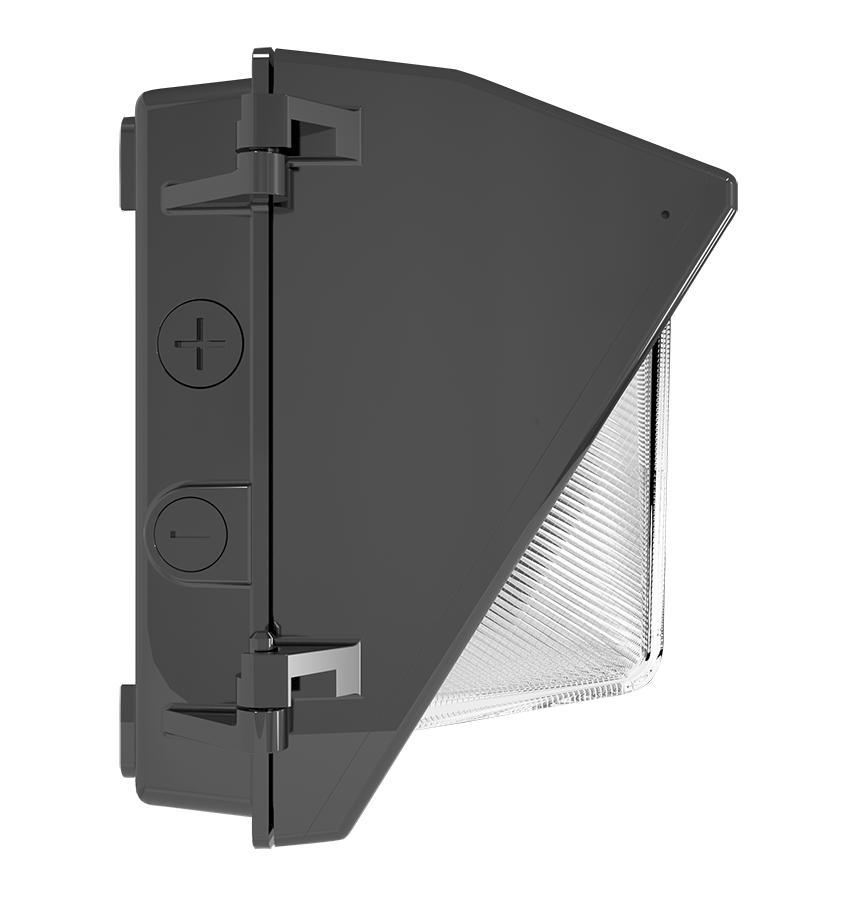

RAB WP1XFU29 WP1 HID Outdoor Wallpack, LED Lamp, 15 W Fixture, 120, 208, 240, 277 V, Bronze Housing
Brand: RAB
Item ID: 515026
MPN: WP1XFU29
Login for Price
Features
- DLC Premium
- Integrated 120-277V button photocell (can be turned off)
- Die-cast aluminum housing and tempered glass lens
- Replaces 125W HID wall packs
- 100,000-Hour LED lifespan
- 0-10V dimmable
- Flicker free
- Traditional form covers existing footprint
- IP65 Rated
Description
RAB, WP1XFU29, Outdoor Wallpack, HID, Series: WP1, 120, 208, 240, 277 V, 15 W Fixture, 0.30, 0.20, 0.15, 0.10 A, LED Lamp, 15 W Lamp, 136 Lumens/W Light Output, 100000 hrs Average Life, 3000, 4000, 5000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Tempered Glass Lens, 2102 Lumens, IP65 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 8-1/4 in H x 10-3/4 in W x 7-11/16 in D Dimensions
Specifications
Amperage Rating |
0.30, 0.20, 0.15, 0.10 A |
Average Life |
100000 hrs |
Ballast Type |
0 to 10 V Dimmable |
Color Rendering Index (CRI) |
80 CRI |
Color Temperature |
3000, 4000, 5000 K |
Dimensions |
8-1/4 in H x 10-3/4 in W x 7-11/16 in D |
Enclosure Type |
IP65 |
Fixture Wattage |
15 W |
Housing Finish |
Bronze |
Housing Material |
Die Cast Aluminum |
Lamp Type |
LED |
Lamp Wattage |
15 W |
Lens Type |
Tempered Glass |
Light Output |
136 Lumens/W |
Lumens |
2102 Lumens |
Mounting Type |
Wall |
Series |
WP1 |
Type |
HID |
Voltage Rating |
120, 208, 240, 277 V |
Standard Approval |
UL Listed|BAA Compliant|RoHS-Compliant|DLC Listed|IESNA LM-79 and LM-80 |
Application |
For Wet Locations |
Documentation
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_WP1XFU29_Instruction_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_WP2XFU80_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_WP1XFU29_Specification_Sheet.pdf
