RAB X34-25L-830/120

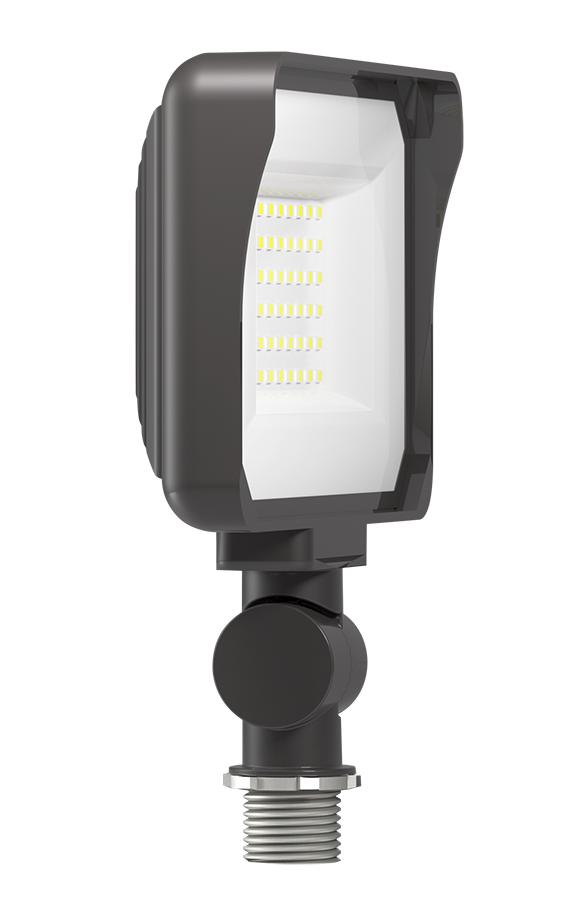

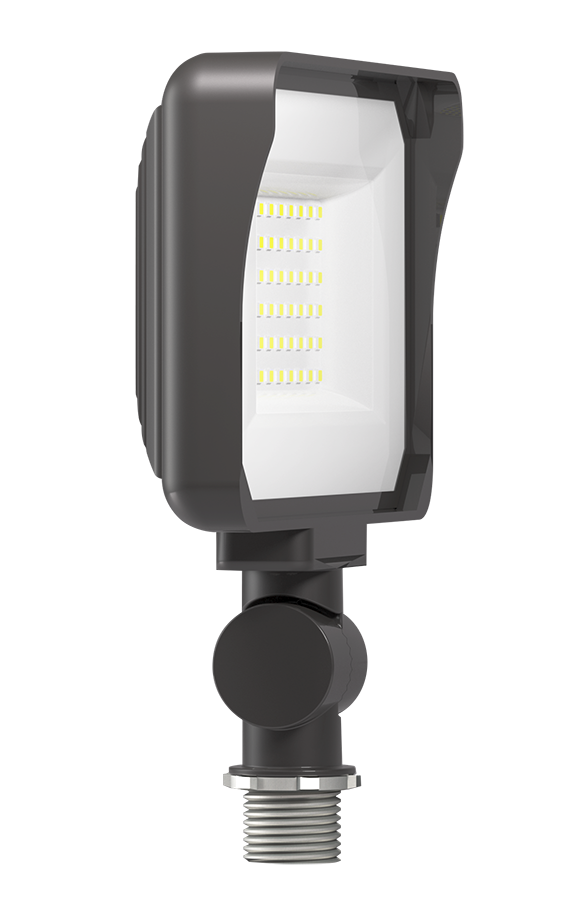

RAB X34-25L-830/120 Floodlight Fixture, LED Lamp, 24.8 W Fixture, 120 VAC, Bronze Housing
Brand: RAB
Item ID: 477444
MPN: X34-25L-830/120
Login for Price
Features
- General purpose floodlight
- Very wide 7H x 7V NEMA distribution
- Low profile and lightweight
- IP65 rating protects against dust and water
Description
RAB Floodlight Fixture, Series: X34, 120 VAC, 24.8 W Fixture, 0.2 A, LED Lamp, 25 W Lamp, 97.4 Lumens/W Light Output, 50000 hr Average Life, Warm White Light, 3000 K Color Temperature, 80 CRI, Constant Current Ballast, Tempered Glass Lens, 2416 Lumens, IP65 Enclosure, Knuckle Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 6-1/8 in L x 1-5/8 in W x 5-3/4 in H Dimensions
Specifications
Amperage Rating |
0.2 A |
Average Life |
50000 hr |
Ballast Type |
Constant Current |
Color Rendering Index (CRI) |
80 |
Color Temperature |
3000 K |
Dimensions |
6-1/8 in L x 1-5/8 in W x 5-3/4 in H |
Enclosure Type |
IP65 |
Fixture Wattage |
24.8 W |
Housing Finish |
Bronze |
Housing Material |
Die Cast Aluminum |
Lamp Type |
LED |
Lamp Wattage |
25 W |
Lens Type |
Tempered Glass |
Light Color |
Warm White |
Light Output |
97.4 Lumens/W |
Lumens |
2416 Lumens |
Mounting Type |
Knuckle |
Series |
X34 |
Voltage Rating |
120 VAC |
Standard Approval |
Buy American Act Compliant|UL Listed for Wet Locations|DLC Listed |
Application |
For ground mounting and outdoor applications |
