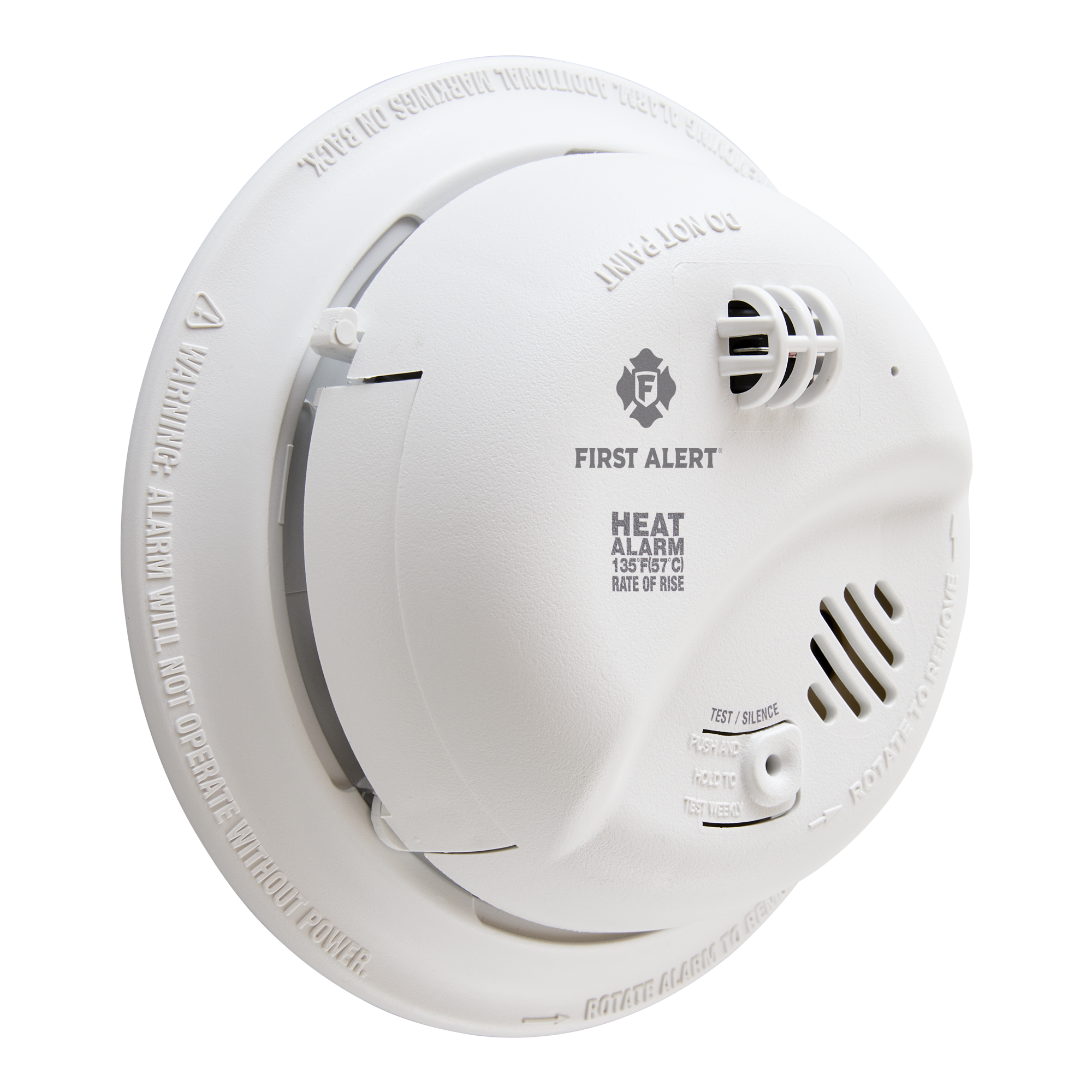

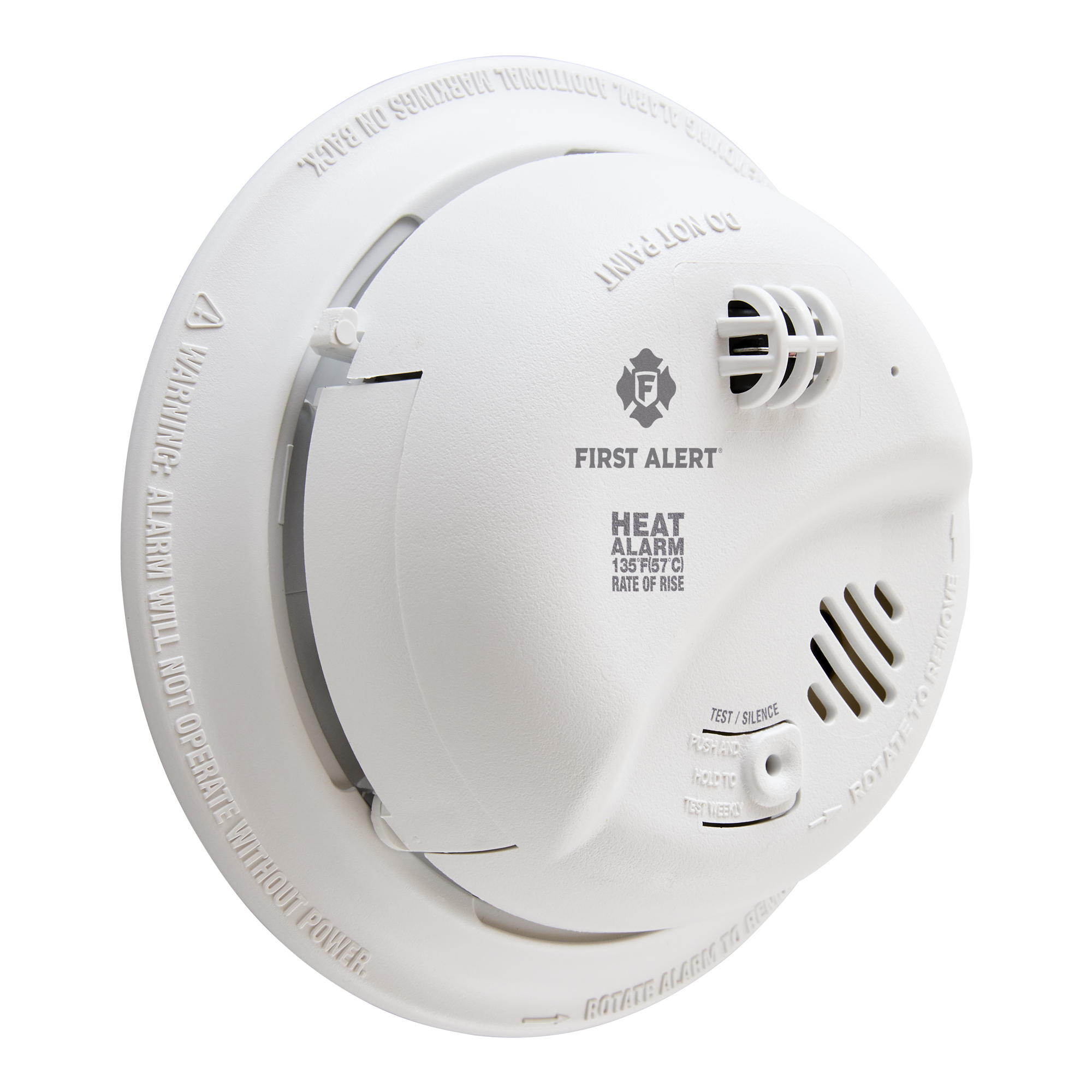

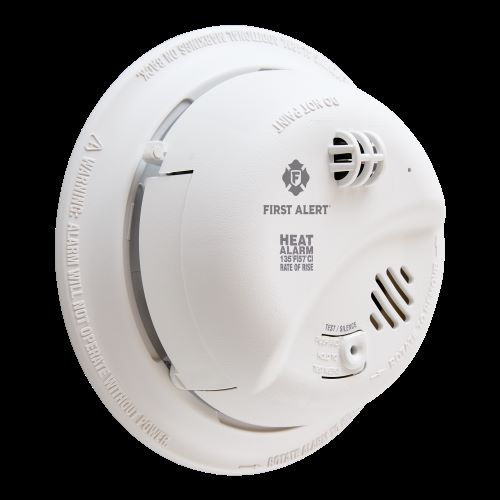

BRK® HD6135FB
BRK® HD6135FB Heat Alarm, Thermistor Sensor, 120 VAC/VDC, LED Display, 85 dB at 10 ft, CSFM Certified, HUD Certified, FHA Certified, NFPA 72, UL539
Brand: BRK®
Item ID: 469338
MPN: HD6135FB
Login for Price
Features
- 135 deg F fixed temperature and rate of rise
- Thermistor heat sensor
- 9 VDC battery backup
- Latching alarm indicator remembers which unit initiated an alarm
- Two silence features can silence the low battery chirp for up to eight hours or temporarily silence an unwanted nuisance alarm
Description
The most feature rich heat alarm for residential use in its class. Features advanced rate-of-rise technology found in more expensive commercial/industrial alarms at an economical cost.
BRK® Heat Alarm, 120 VAC/VDC Power Source, Thermistor Sensor, Alarm: Latching, Up to 18 Units of First Alert or BRK Smoke, CO and Heat Alarms, Maximum of 12 Smoke Alarms Interconnection, 85 dB at 10 ft Alert, 10 to 95 % Humidity, LED Display, Specifications Met: CSFM Certified, HUD Certified, FHA Certified, NFPA 72, UL539, Quick-Connect Wiring, -10 to 100 deg F Operating, White, 5.6 in Dia x 2 in H
Specifications
Alarm Type |
Latching |
Audible Alert |
85 dB at 10 ft |
Color |
White |
Dimensions |
5.6 in Dia x 2 in H |
Display Type |
LED |
Humidity Rating |
10 to 95 % |
Interconnection Capability |
Up to 18 Units of First Alert or BRK Smoke, CO and Heat Alarms, Maximum of 12 Smoke Alarms |
Operating Temperature |
-10 to 100 deg F |
Power Source |
120 VAC/VDC |
Sensor Type |
Thermistor |
Specifications Met |
CSFM Certified, HUD Certified, FHA Certified, NFPA 72, UL539 |
Wiring Type |
Quick-Connect |
Standard Approval |
Buy American Act Compliant|CSFM Certified|HUD Certified|FHA Certified|NFPA 72|UL 539 |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_90f658c59cd1d63fa31589fc75426ed94d9eb0f61a401aafacbb9ee57d3cab13.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BRK_Electronics_HD6135FB_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_37430d42afa9a1878c69115fafa6ed03a1e53b4b5265ef8446ec7d40da55ca54.pdf
