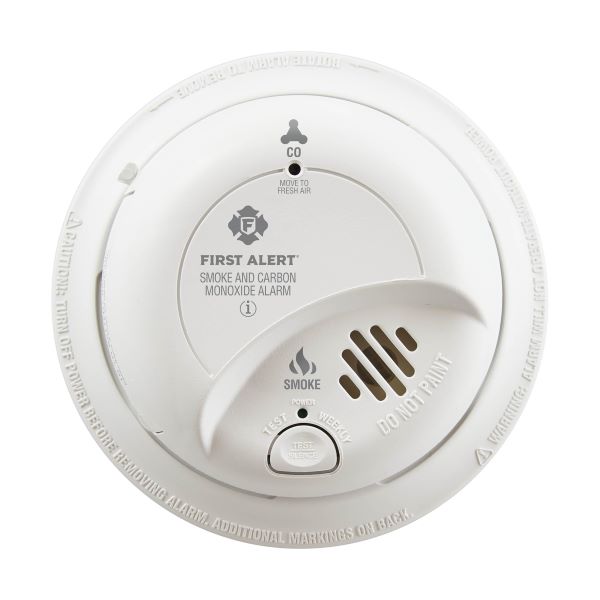

BRK® SC9120LBL

• 120 VAC/VDC ionization smoke/carbon monoxide alarm with a 10 years lithium battery backup
• The battery drawer is shipped pre-locked so battery will not be discarded prematurely
• Under normal conditions you should not have to replace the battery for the life of the alarm
• 10 years lithium battery backup
• Locked battery drawer
• Electrochemical carbon monoxide sensor the most accurate sensor available as compared to other sensing technologies
• Latching alarm indicator remembers which unit initiated an alarm
• Intelligent sensing Technology™ helps reduce the number of nuisance alarms
• Perfect mount allows for easy alignment of alarm
• Single button test/silence
• Easy installation/maintenance, preferred features include a large opening in the mounting bracket for easy access to wiring
• Keyhole slots in the mounting bracket eliminate the need to remove the electrical box screws for installation
• A battery pull tab keeps the battery fresh until the home is occupied
• Battery installation and removal can occur while the unit is mounted to the ceiling or wall via the side load battery compartment
• Two locking features are provided to prevent battery theft and/or theft of the unit, connection to AC power is made with a quick-connect wiring harness
• Installation is quick, easy and cost effective
• 10 to 90% relative humidity
• 85 dB at 10 ft audible alarm

The BRK® C9120LBL (model SC9120B) is a wire-in, 120 VAC 60 Hz single and/or multiple station smoke and carbon monoxide alarm specifically designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels, dormitories and other multi-family dwellings as defined in standard NFPA 101. The SC9120LBL complies with UL 217, UL 2034, CSFM, NFPA 72, NFPA 720, HUD, FHA and other agencies that model their codes after the above agencies. They meet building codes where AC/DC with silence smoke and carbon monoxide alarms are required either separately or in combination. The alarms are interconnectable with up to 18 devices, of which 12 can be smoke alarms.

BRK® Smoke and Carbon Monoxide Alarm, Combination Wire-In, Dual Ionization/Electrochemical Sensor, Alarm: Audio, 18 Units Interconnection, 85 dB Alert, Green/Red LED Visual Alert, 10 to 90% Humidity, Quick-Connect Wiring, 40 to 100 deg F Operating, Plastic, White, 5.6 in Dia x 2 in H
