SATCO® S1952

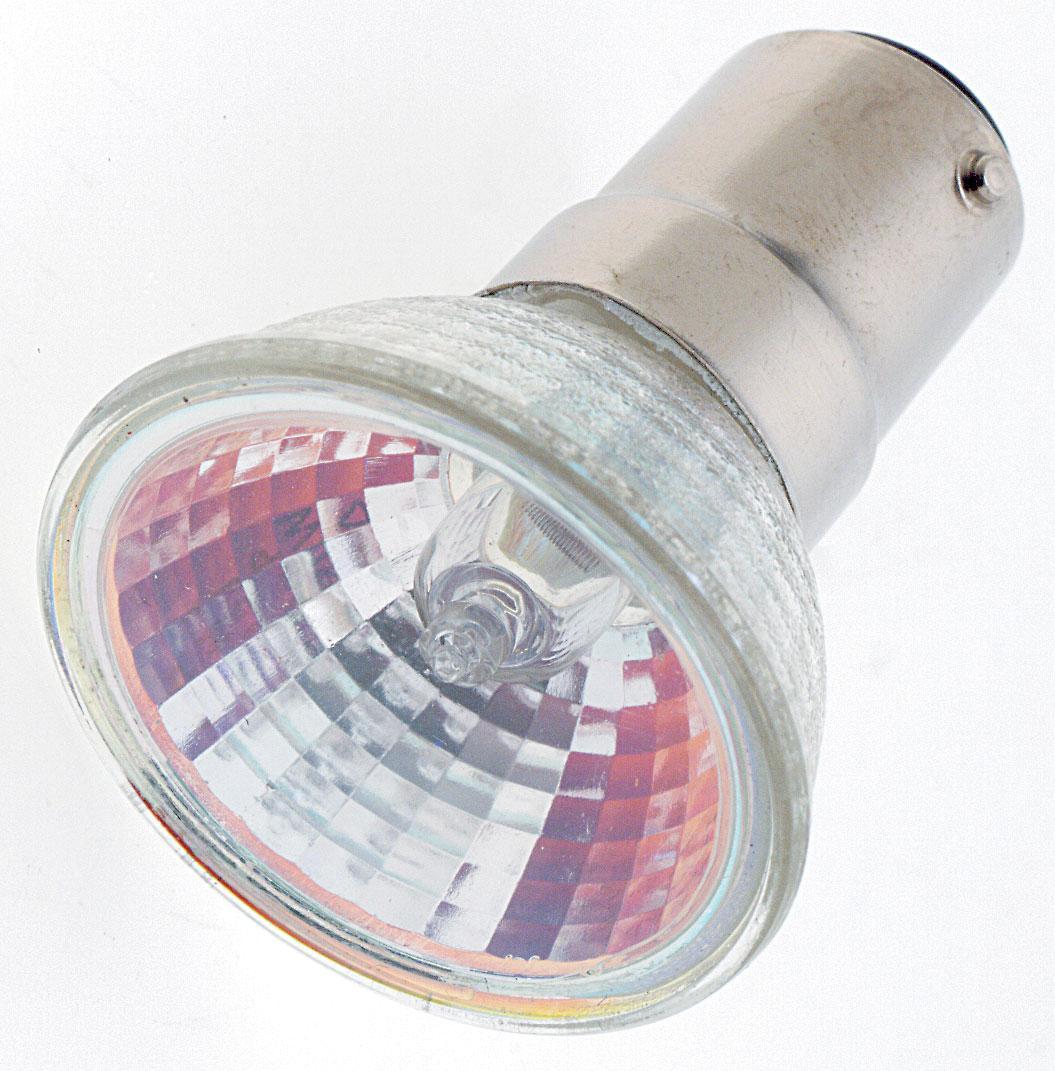

SATCO® S1952 Dimmable Halogen Lamp, 20 W, Double Contact Bayonet Halogen Lamp, MR11 Shape
Brand: SATCO®
Item ID: 360834
MPN: S1952
UPC: 045923019524
Login for Price
Features
- Bright, crisp light
- UV filter halogen capsule
- Uniform light output
Description
SATCO® Halogen Lamp, Dimmable, 20MR11/NFL/DC Designation, 20 W Wattage, 12 VAC, 1.67 A, Halogen Lamp, Double Contact Bayonet Lamp Base, MR11 Shape, 2000 hr Average Life, Warm White, 99 CRI, 2900 K Color Temperature, Clear Glass Lamp, C-6 Filament, Narrow Flood Beam, 24 deg Beam, 1-3/8 in Dia x 1-5/8 in L
Specifications
Amperage Rating |
1.67 A |
Average Life |
2000 hr |
Beam Angle |
24 deg |
Beam Type |
Narrow Flood |
Color Rendering Index (CRI) |
99 |
Color Temperature |
2900 K |
Color |
Warm White |
Designation |
20MR11/NFL/DC |
Dimensions |
1-3/8 in Dia x 1-5/8 in L |
Filament |
C-6 |
Lamp Base Type |
Double Contact Bayonet |
Lamp Finish |
Clear Glass |
Lamp Type |
Halogen |
Shape |
MR11 |
Type |
Dimmable |
Voltage Rating |
12 VAC |
Wattage |
20 W |
Standard Approval |
RoHS Compliant|ANSI FSV/C Specified|CSA Approved |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S1952_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S1952_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S1952_Warranty.pdf
