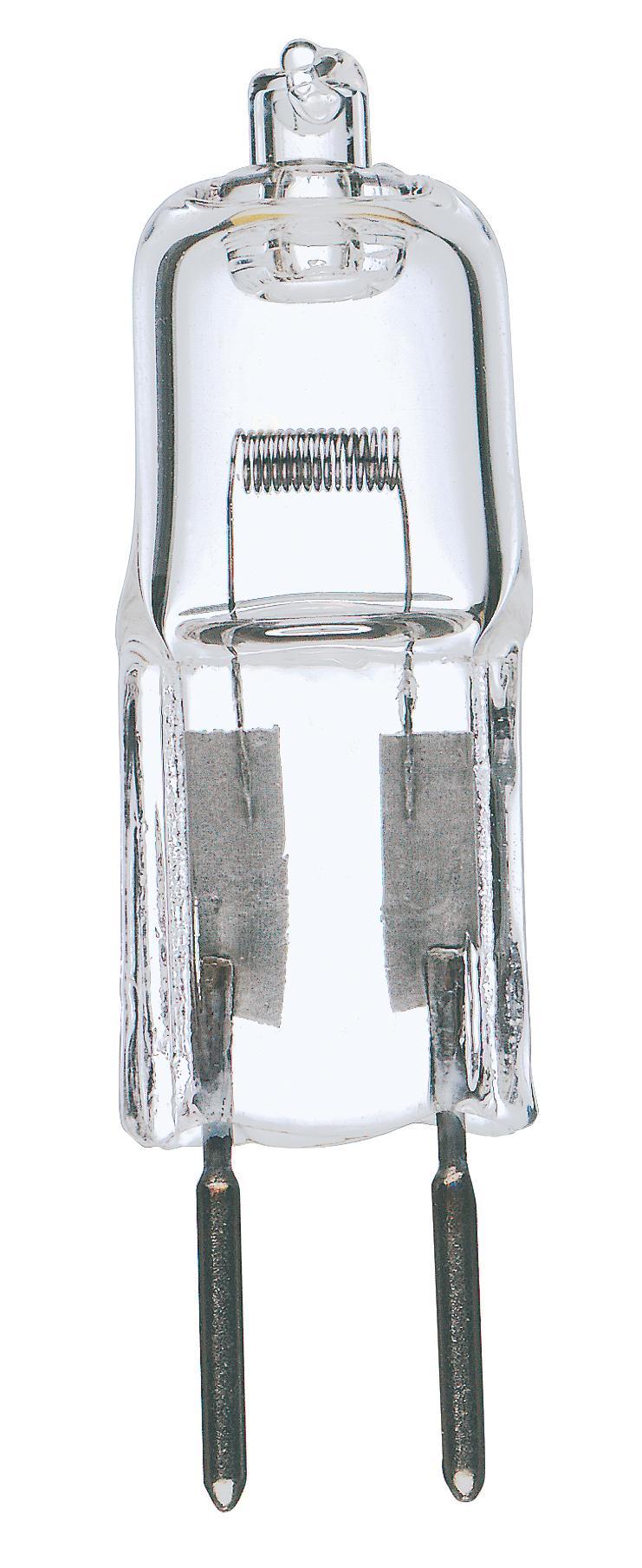

SATCO® S1986 Dimmable Halogen Lamp, 20 W, G4 Bi-Pin Halogen Lamp, T3 Shape, 260 Lumens Initial
Brand: SATCO®
Item ID: 406162
MPN: S1986
Login for Price
Features
Description
Halogen lamps come in more sizes, shapes and base variations than most other technologies and with good reason - brilliant white light, great color temperature and color rendering properties, long life and superior lumen maintece combine to make them very popular. Satco stocks virtually every variation there is. our wide inventory allows you to get the types you need, whether a specialty size or an incandescent A19 replacement, that meets government regulations. When it comes to halogen lamps, we can confidently say "Yes, we have that".
SATCO® Halogen Lamp, Dimmable, 20T3/CL/24V Designation, 20 W Wattage, 24 VAC, 0.83 A, Halogen Lamp, G4 Bi-Pin Lamp Base, T3 Shape, 260 Lumens Initial, 2000 hr Average Life, Warm White, 99 CRI, 2900 K Color Temperature, Clear Lamp, CC-6 Filament, 3/8 in Dia x 1-1/4 in L Dimensions
Specifications
Amperage Rating |
0.83 A |
Average Life |
2000 hr |
Color Rendering Index (CRI) |
99 |
Color Temperature |
2900 K |
Color |
Warm White |
Designation |
20T3/CL/24V |
Dimensions |
3/8 in Dia x 1-1/4 in L |
Filament |
CC-6 |
Lamp Base Type |
G4 Bi-Pin |
Lamp Finish |
Clear |
Lamp Type |
Halogen |
Lumens |
260 Lumens Initial |
Shape |
T3 |
Type |
Dimmable |
Voltage Rating |
24 VAC |
Wattage |
20 W |
Standard Approval |
RoHS Compliant |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S1986_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S1986_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S1986_Warranty.pdf
