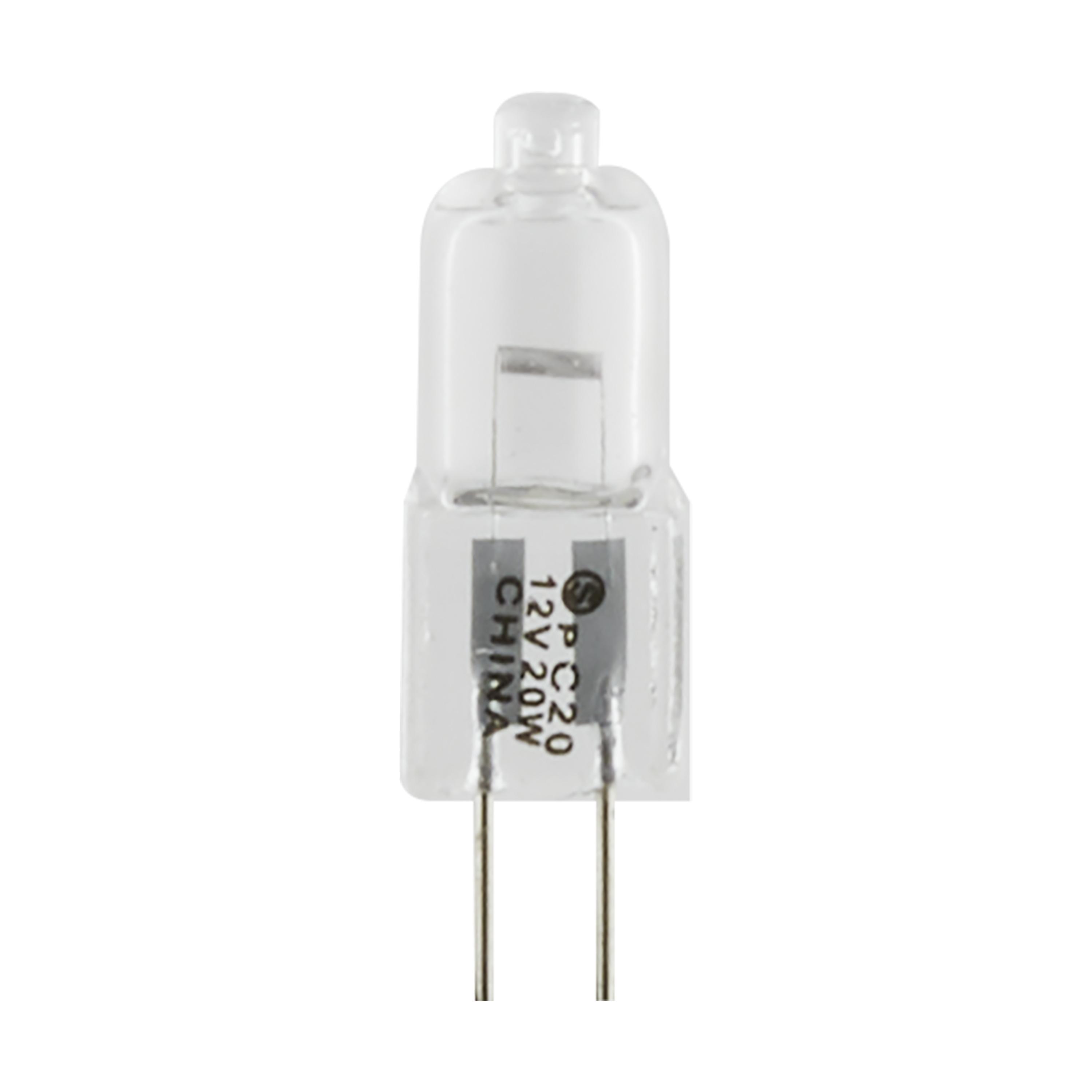

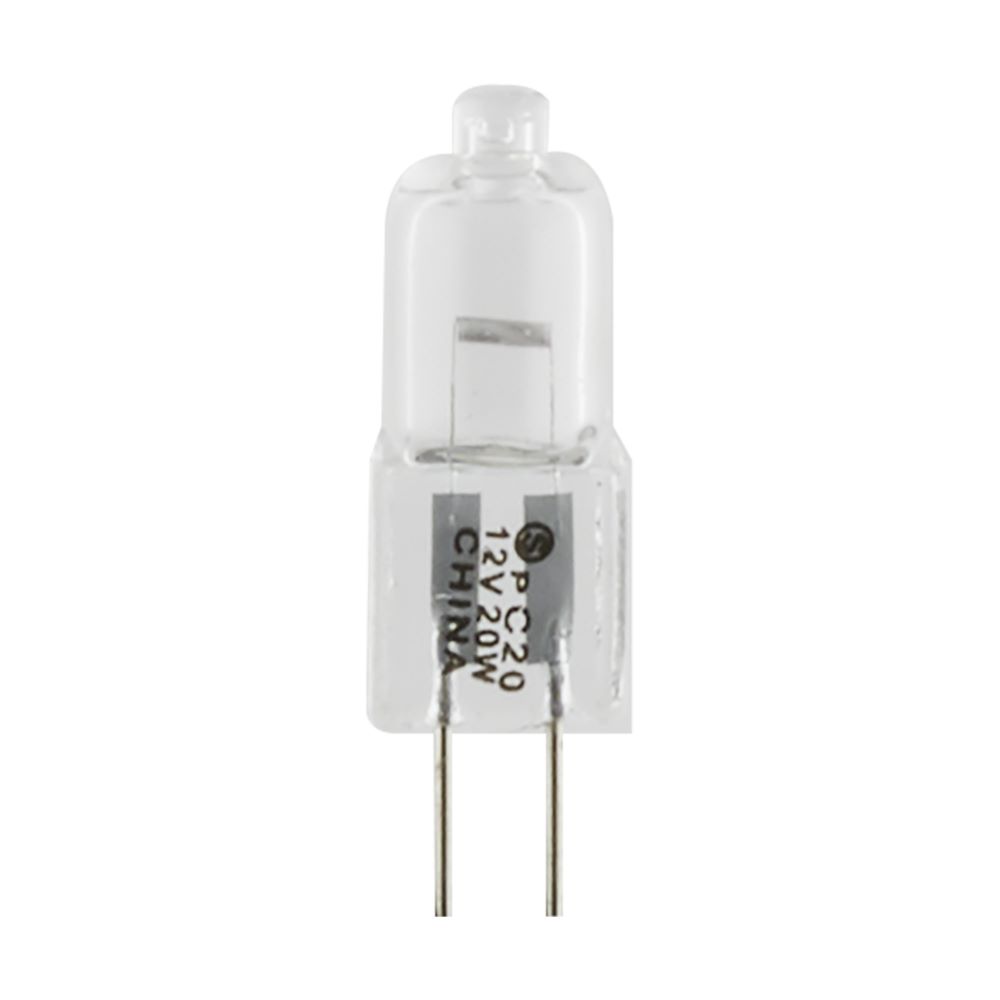

SATCO® S3120
SATCO® S3120 Dimmable Halogen Lamp, 20 W, G4 Bi-Pin Halogen Lamp, T3 Shape, 300 Lumens Initial
Brand: SATCO®
Item ID: 400756
MPN: S3120
Login for Price
Features
- Bright, crisp light
- UV filter halogen capsule
- Uniform light output
Description
Satco miniatures are perfectly suited for those applications requiring specific sizes and a long lifespan. Miniature bulbs are, by definition, generally small in size and find their way into many applications and are available in a wide variety of filament constructions, bases and wire terminal leads. Most are designed for operation with low voltage power sources such as battery/generator systems, dry cell or storage batteries, or transformers. Most common uses include flashlights, indicator lights, landscape lights and appliances.
SATCO® Halogen Lamp, Dimmable, 20T3/CL Designation, 20 W Wattage, 12 VAC, Halogen Lamp, G4 Bi-Pin Lamp Base, T3 Shape, 300 Lumens Initial, 2000 hr Average Life, Warm White, 99 CRI, 2900 K Color Temperature, Clear Lamp, C-6 Filament, Sealed Beam, 3/8 in Dia x 1-1/4 in L Dimensions
Specifications
Average Life |
2000 hr |
Beam Type |
Sealed |
Color Rendering Index (CRI) |
99 |
Color Temperature |
2900 K |
Color |
Warm White |
Designation |
20T3/CL |
Dimensions |
3/8 in Dia x 1-1/4 in L |
Filament |
C-6 |
Lamp Base Type |
G4 Bi-Pin |
Lamp Finish |
Clear |
Lamp Type |
Halogen |
Lumens |
300 Lumens Initial |
Shape |
T3 |
Type |
Dimmable |
Voltage Rating |
12 VAC |
Wattage |
20 W |
Standard Approval |
RoHS Compliant |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S3120_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S3120_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S3120_Warranty.pdf
