SATCO® S6944

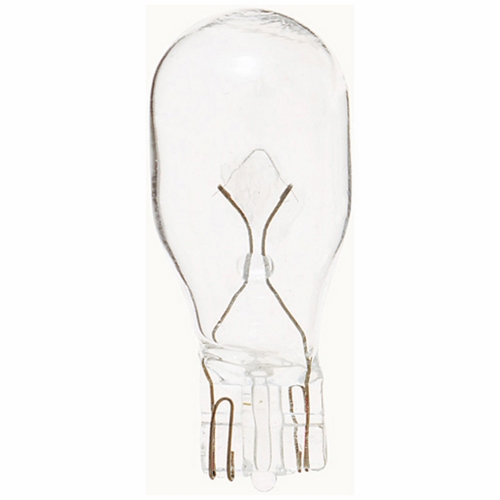

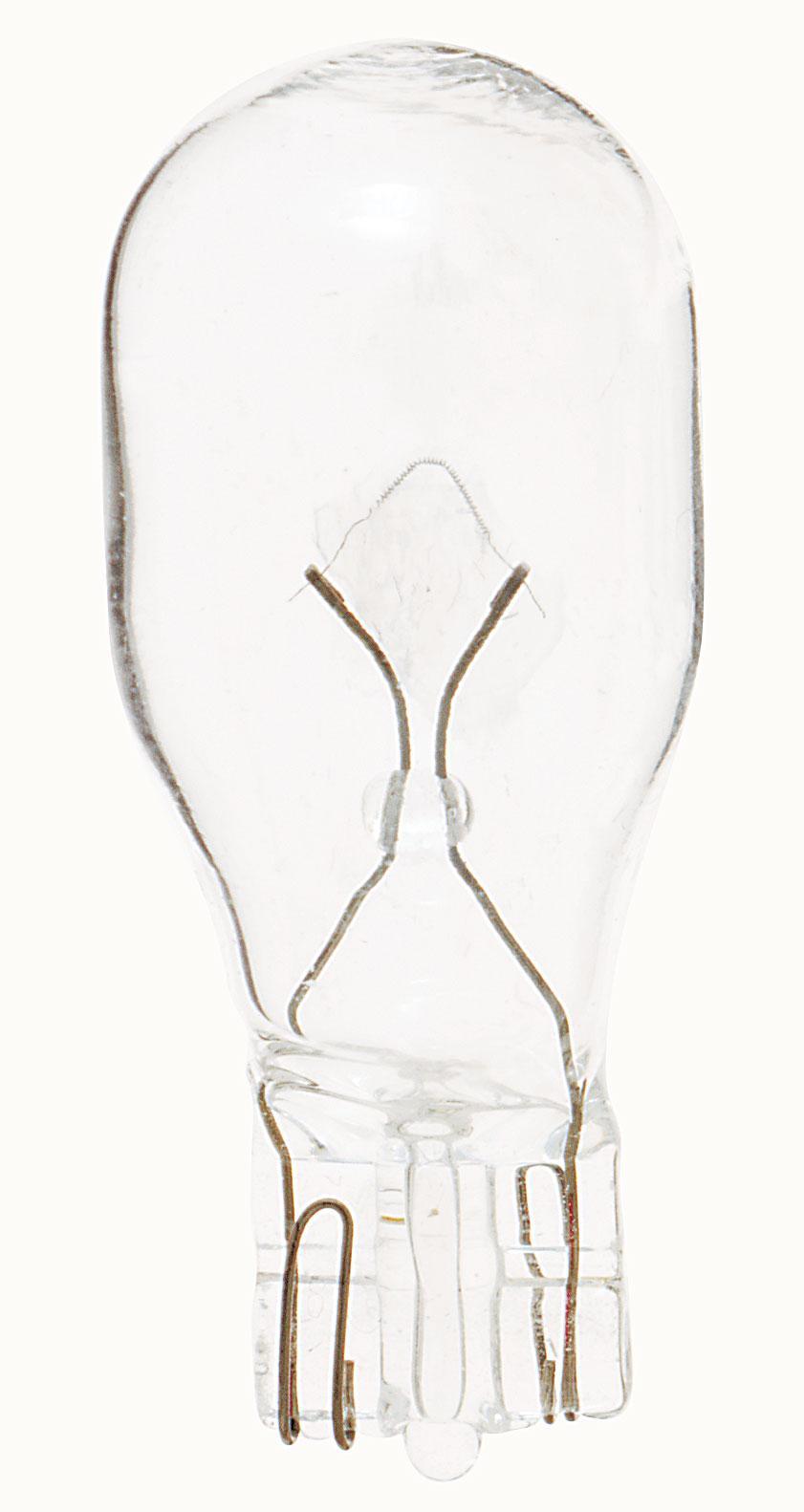

SATCO® S6944 Miniature Lamp, 7.17 W, W2.1x9.5d Miniature Wedge Incandescent Lamp, T5 Shape
Brand: SATCO®
Item ID: 383646
MPN: S6944
Login for Price
Features
- Special application miniature lamp
- Low wattage
- Long life
Description
Satco miniatures are perfectly suited for those applications requiring specific sizes and a long lifespan. Miniature bulbs are, by definition, generally small in size and find their way into many applications and are available in a wide variety of filament constructions, bases and wire terminal leads. Most are designed for operation with low voltage power sources such as battery/generator systems, dry cell or storage batteries, or transformers. Most common uses include flashlights, indicator lights, landscape lights and appliances.
SATCO® Miniature Lamp, 918 Designation, 7.17 W Wattage, 12.8 VAC, 0.56 A, Incandescent Lamp, W2.1x9.5d Miniature Wedge Lamp Base, T5 Shape, 500 hr Average Life, Clear Lamp, C-2R Filament, Sealed Beam, 0.63 in Dia x 1.5 in L Dimensions
Specifications
Amperage Rating |
0.56 A |
Average Life |
500 hr |
Beam Type |
Sealed |
Designation |
918 |
Dimensions |
0.63 in Dia x 1.5 in L |
Filament |
C-2R |
Lamp Base Type |
W2.1x9.5d Miniature Wedge |
Lamp Finish |
Clear |
Lamp Type |
Incandescent |
Shape |
T5 |
Voltage Rating |
12.8 VAC |
Wattage |
7.17 W |
Standard Approval |
RoHS Compliant |
Application |
Auto, Indicator, Special and Service |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6944_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6944_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6944_Warranty.pdf
