SATCO® S6964

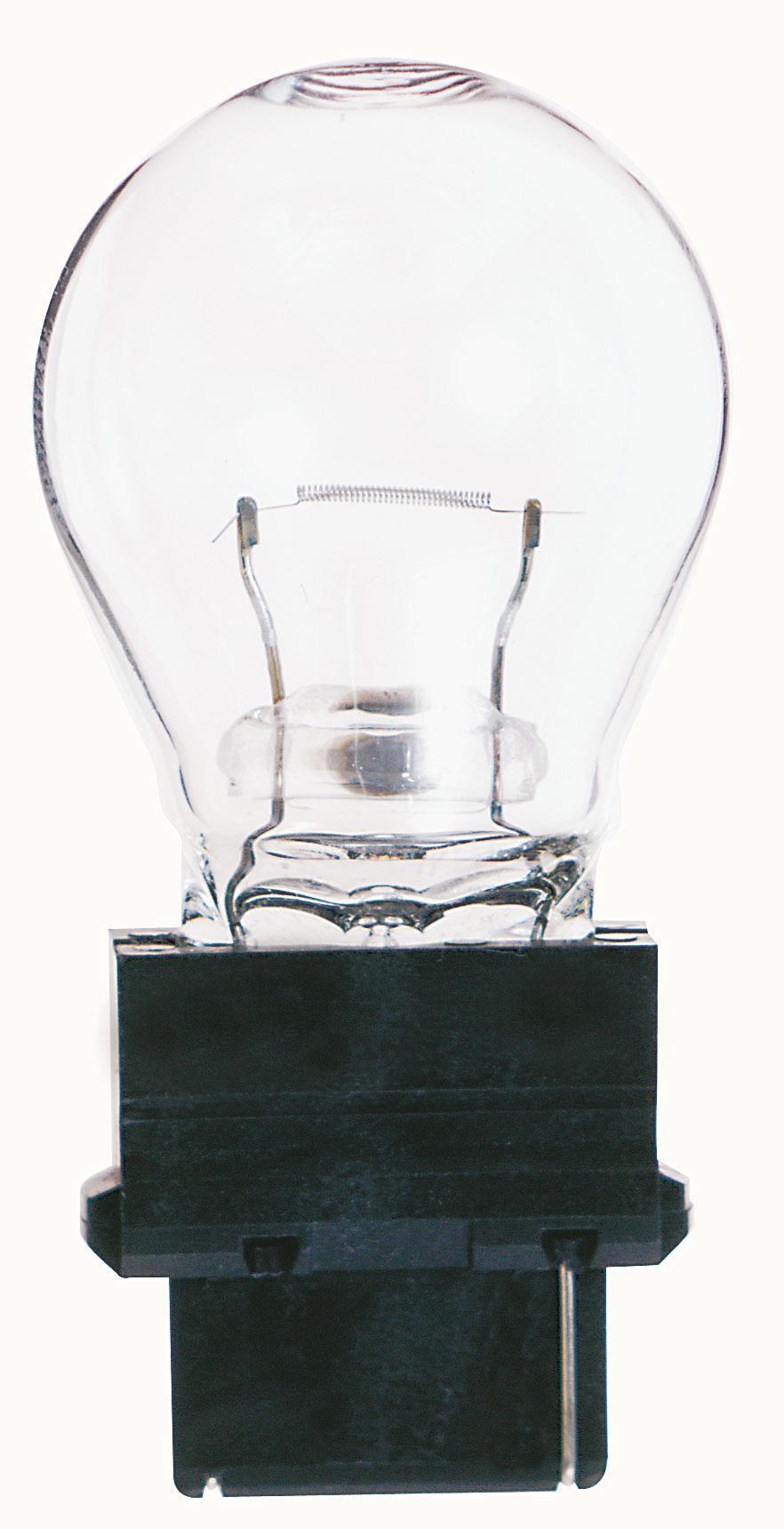

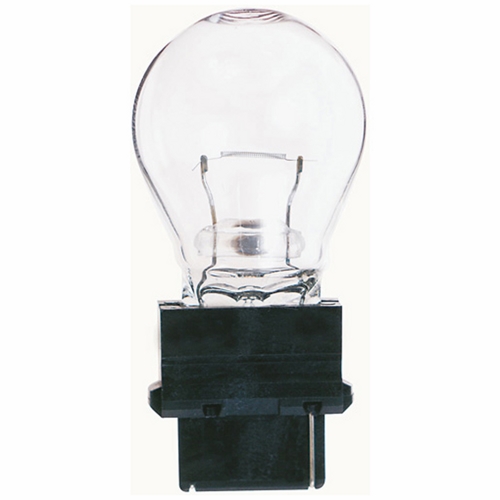

SATCO® S6964 Miniature Lamp, 26.88 W, W3x16q Plastic Wedge Incandescent Lamp, S6 Shape
Brand: SATCO®
Item ID: 426492
MPN: S6964
Login for Price
Features
- Special application miniature lamp
- Low wattage
- Long life
Description
Satco miniatures are perfectly suited for those applications requiring specific sizes and a long lifespan. Miniature bulbs are, by definition, generally small in size and find their way into many applications and are available in a wide variety of filament constructions, bases and wire terminal leads. Most are designed for operation with low voltage power sources such as battery/generator systems, dry cell or storage batteries, or transformers. Most common uses include flashlights, indicator lights, landscape lights and appliances.
SATCO® Miniature Lamp, 3156 Designation, 26.88 W Wattage, 12.8 VAC, 2.1 A, Incandescent Lamp, W3x16q Plastic Wedge Lamp Base, S6 Shape, 1200 hr Average Life, Clear Lamp, C-6 Filament, Sealed Beam, 1 in Dia x 2.94 in L Dimensions
Specifications
Amperage Rating |
2.1 A |
Average Life |
1200 hr |
Beam Type |
Sealed |
Designation |
3156 |
Dimensions |
1 in Dia x 2.94 in L |
Filament |
C-6 |
Lamp Base Type |
W3x16q Plastic Wedge |
Lamp Finish |
Clear |
Lamp Type |
Incandescent |
Shape |
S6 |
Voltage Rating |
12.8 VAC |
Wattage |
26.88 W |
Standard Approval |
RoHS Compliant |
Application |
Auto, Aircraft, Indicator and Marine |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6964_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6964_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6964_Warranty.pdf
