SATCO® S6989

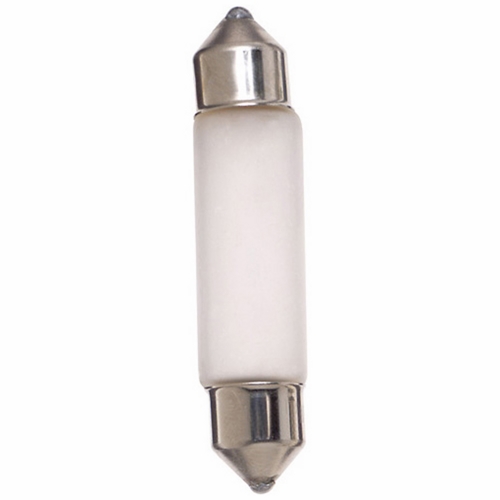

SATCO® S6989 Miniature Lamp, 5 W, Festoon SV8.5-8 Xenon Lamp, T1.75 Shape, 50 Lumens Initial
Brand: SATCO®
Item ID: 354691
MPN: S6989
Login for Price
Features
- Special application miniature lamp
- Low wattage
- Long life
Description
Satco miniatures are perfectly suited for those applications requiring specific sizes and a long lifespan. Miniature bulbs are, by definition, generally small in size and find their way into many applications and are available in a wide variety of filament constructions, bases and wire terminal leads. Most are designed for operation with low voltage power sources such as battery/generator systems, dry cell or storage batteries, or transformers. Most common uses include flashlights, indicator lights, landscape lights and appliances.
SATCO® Miniature Lamp, X5T3 1/4 F Festoon Designation, 5 W Wattage, 12 VAC, 0.37 A, Xenon Lamp, Festoon SV8.5-8 Lamp Base, T1.75 Shape, 50 Lumens Initial Lumens, 20000 hr Average Life, Frosted Lamp, C-8 Filament, Sealed Beam, 0.41 in Dia x 1.72 in L Dimensions
Specifications
Amperage Rating |
0.37 A |
Average Life |
20000 hr |
Beam Type |
Sealed |
Designation |
X5T3 1/4 F Festoon |
Dimensions |
0.41 in Dia x 1.72 in L |
Filament |
C-8 |
Lamp Base Type |
Festoon SV8.5-8 |
Lamp Finish |
Frosted |
Lamp Type |
Xenon |
Lumens |
50 Lumens Initial |
Shape |
T1.75 |
Voltage Rating |
12 VAC |
Wattage |
5 W |
Standard Approval |
RoHS Compliant |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6989_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6989_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6989_Warranty.pdf
