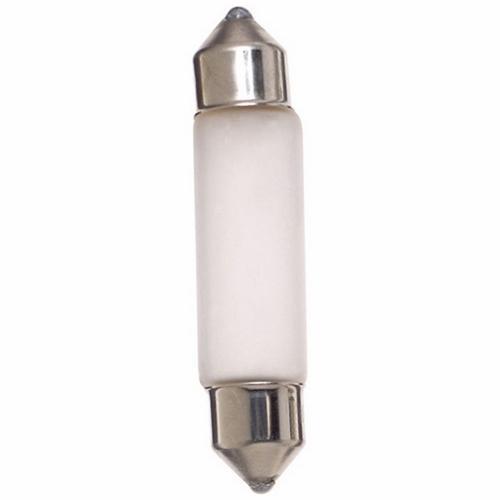

SATCO® S6991
SATCO® S6991 Miniature Lamp, 5 W, Festoon SV8.5-8 Xenon Lamp, T1.75 Shape, 50 Lumens Initial
Brand: SATCO®
Item ID: 537251
MPN: S6991
Login for Price
Features
- Special application miniature lamp
- Low wattage
- Long life
Description
Satco miniatures are perfectly suited for those applications requiring specific sizes and a long lifespan. Miniature bulbs are, by definition, generally small in size and find their way into many applications and are available in a wide variety of filament constructions, bases and wire terminal leads. Most are designed for operation with low voltage power sources such as battery/generator systems, dry cell or storage batteries, or transformers. Most common uses include flashlights, indicator lights, landscape lights and appliances.
SATCO® Miniature Lamp, X5T3 1/4 F 24V Festoon Designation, 5 W Wattage, 24 VAC, 0.19 A, Xenon Lamp, Festoon SV8.5-8 Lamp Base, T1.75 Shape, 50 Lumens Initial Lumens, 15000 hr Average Life, Frosted Lamp, C-8/Single Coil Axial Filament, Sealed Beam, 0.41 in Dia x 1.72 in L Dimensions
Specifications
Amperage Rating |
0.19 A |
Average Life |
15000 hr |
Beam Type |
Sealed |
Designation |
X5T3 1/4 F 24V Festoon |
Dimensions |
0.41 in Dia x 1.72 in L |
Filament |
C-8/Single Coil Axial |
Lamp Base Type |
Festoon SV8.5-8 |
Lamp Finish |
Frosted |
Lamp Type |
Xenon |
Lumens |
50 Lumens Initial |
Shape |
T1.75 |
Voltage Rating |
24 VAC |
Wattage |
5 W |
Standard Approval |
RoHS Compliant |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6991_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6991_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S6991_Warranty.pdf
