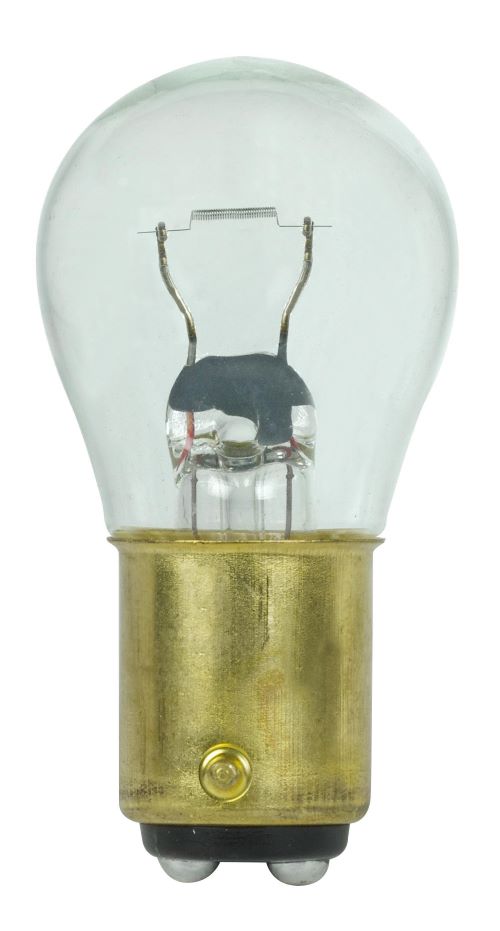

SATCO® S7042
SATCO® S7042 Miniature Lamp, 18.43 W, BA15d Double Contact Bayonet Incandescent Lamp, S6 Shape
Brand: SATCO®
Item ID: 370125
MPN: S7042
Login for Price
Features
- Special application miniature lamp
- Low watt
- Long life
Description
Satco miniatures are perfectly suited for those applications requiring specific sizes and a long lifespan. Miniature bulbs are, by definition, generally small in size and find their way into many applications and are available in a wide variety of filament constructions, bases, and wire terminal leads. Most are designed for operation with low voltage power sources such as battery/generator systems, dry cell or storage batteries, or transformers. Most common uses include flashlights, indicator lights, landscape lights, and appliances.
SATCO® Miniature Lamp, 1142 Designation, 18.43 W Wattage, 12.8 VAC, 1.6 A, Incandescent Lamp, BA15d Double Contact Bayonet Lamp Base, S6 Shape, 1500 hr Average Life, Clear Lamp, C-6 Filament, Sealed Beam, 1.04 in Dia x 2 in L Dimensions
Specifications
Amperage Rating |
1.6 A |
Average Life |
1500 hr |
Beam Type |
Sealed |
Designation |
1142 |
Dimensions |
1.04 in Dia x 2 in L |
Filament |
C-6 |
Lamp Base Type |
BA15d Double Contact Bayonet |
Lamp Finish |
Clear |
Lamp Type |
Incandescent |
Shape |
S6 |
Voltage Rating |
12.8 VAC |
Wattage |
18.43 W |
Standard Approval |
RoHS Compliant |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/HYGRADE_S2924_Catalog.pdf
