SATCO® S8306

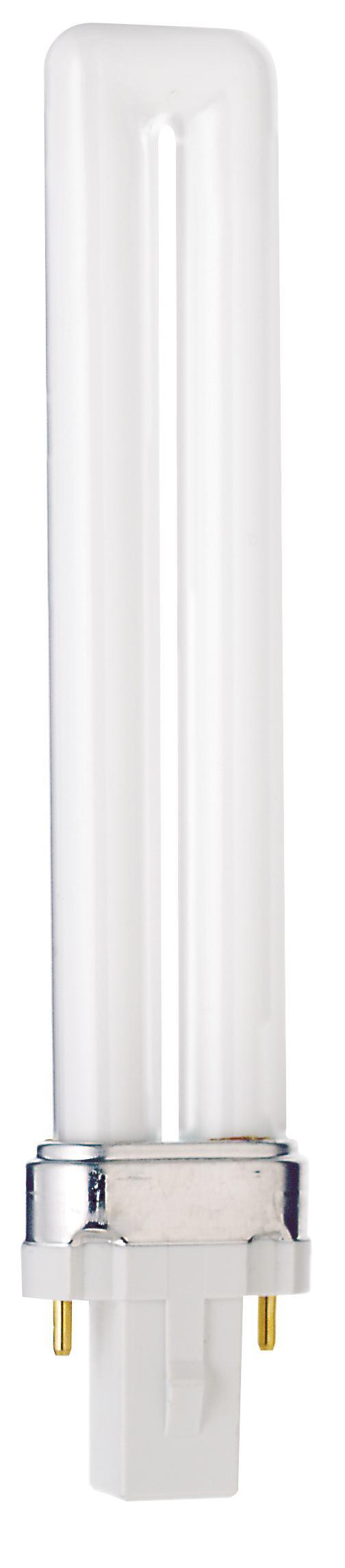

SATCO® HyGrade™ S8306 Single Twin Compact Fluorescent Lamp, 9 W, Bi-Pin G23 CFL Lamp, T4 Shape, 580 Lumens Initial
Brand: SATCO®
Item ID: 400669
MPN: S8306
Login for Price
Features
- Non-integrated pin based CFL
- Uses 75% less energy than equivalent incandescent lamps
- TCLP compliant for low mercury
Description
SATCO® HyGrade™ Compact Fluorescent Lamp, Single Twin, CFS9W/827, 9 W, 120 VAC, CFL Lamp, Bi-Pin G23 Lamp Base, T4, 580 Lumens Initial, 12000 hr Average Life, Warm White, 82 CRI, 2700 K Color, Tri-Phosphor Lamp, Instant On Start, Magnetic Ballast, 360 deg Beam, 1-1/4 in Dia x 6-1/2 in L
Specifications
Average Life |
12000 hr |
Ballast Type |
Magnetic |
Beam Angle |
360 deg |
Color Rendering Index (CRI) |
82 |
Color Temperature |
2700 K |
Color |
Warm White |
Designation |
CFS9W/827 |
Dimensions |
1-1/4 in Dia x 6-1/2 in L |
Lamp Base Type |
Bi-Pin G23 |
Lamp Finish |
Tri-Phosphor |
Lamp Type |
CFL |
Lumens |
580 Lumens Initial |
Shape |
T4 |
Start Type |
Instant On |
Type |
Single Twin |
Voltage Rating |
120 VAC |
Wattage |
9 W |
Standard Approval |
CEC Certified|ECCN: EAR99|ETL Listed|RoHS Compliant|UL Listed |
Documentation
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S8306_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S8306_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S8306_Warranty.pdf
