NUVO® by SATCO 62-1854

NUVO® by SATCO 62-1854 Cloud Fixture Lighting, 11 W Fixture, 120 V

Brand: NUVO® by SATCO

Item ID: 575729

MPN: 62-1854

UPC: 045923622908

Login for Price

Features

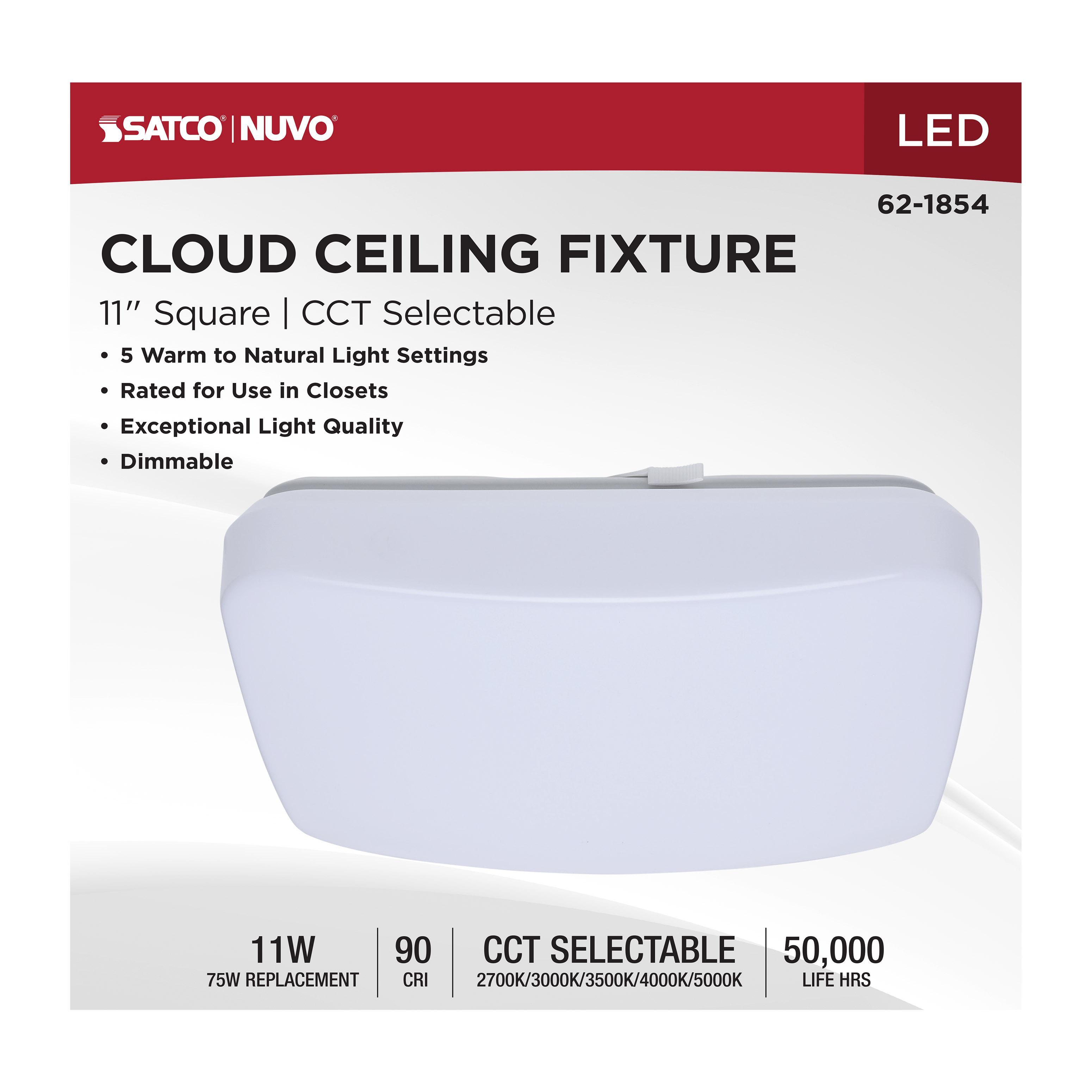

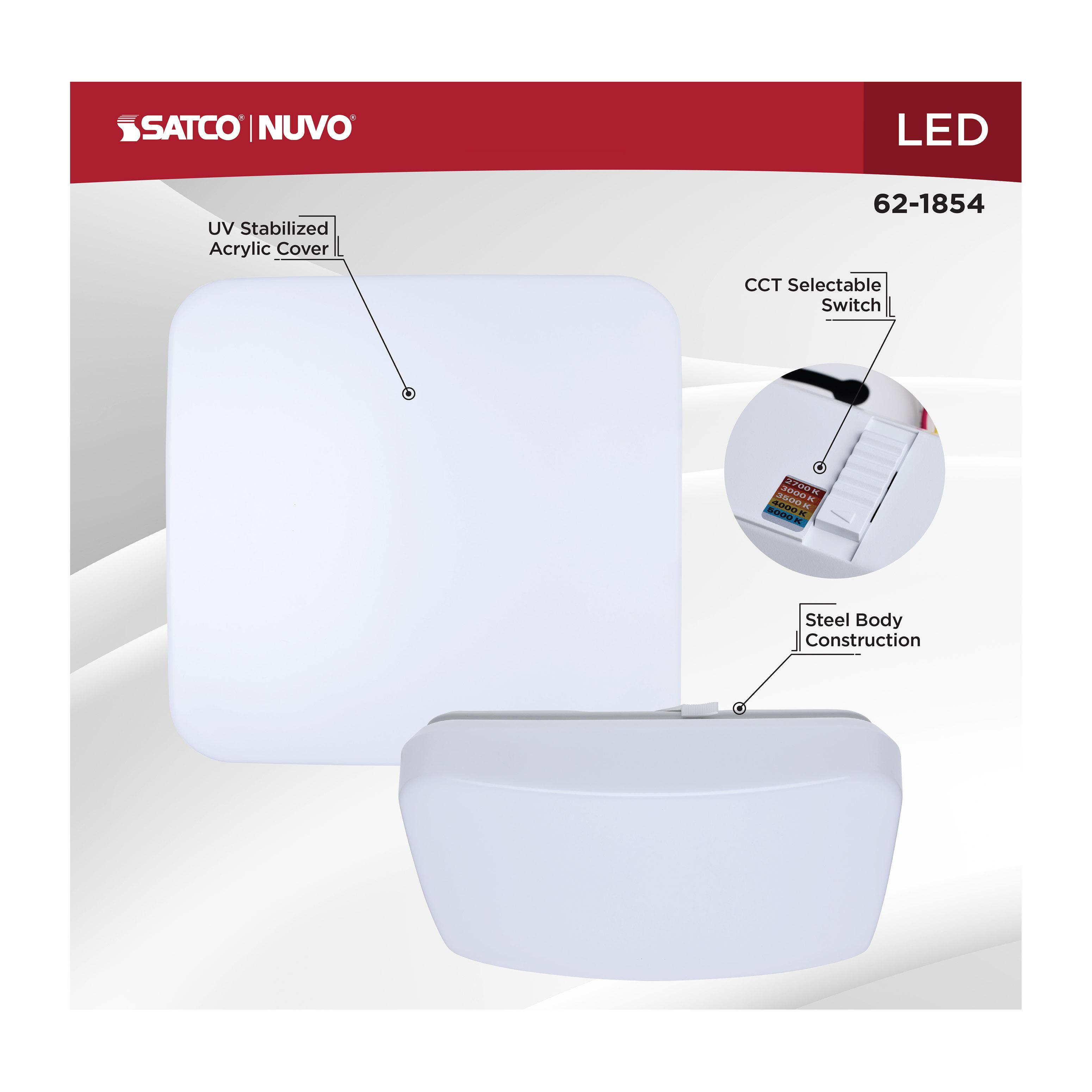

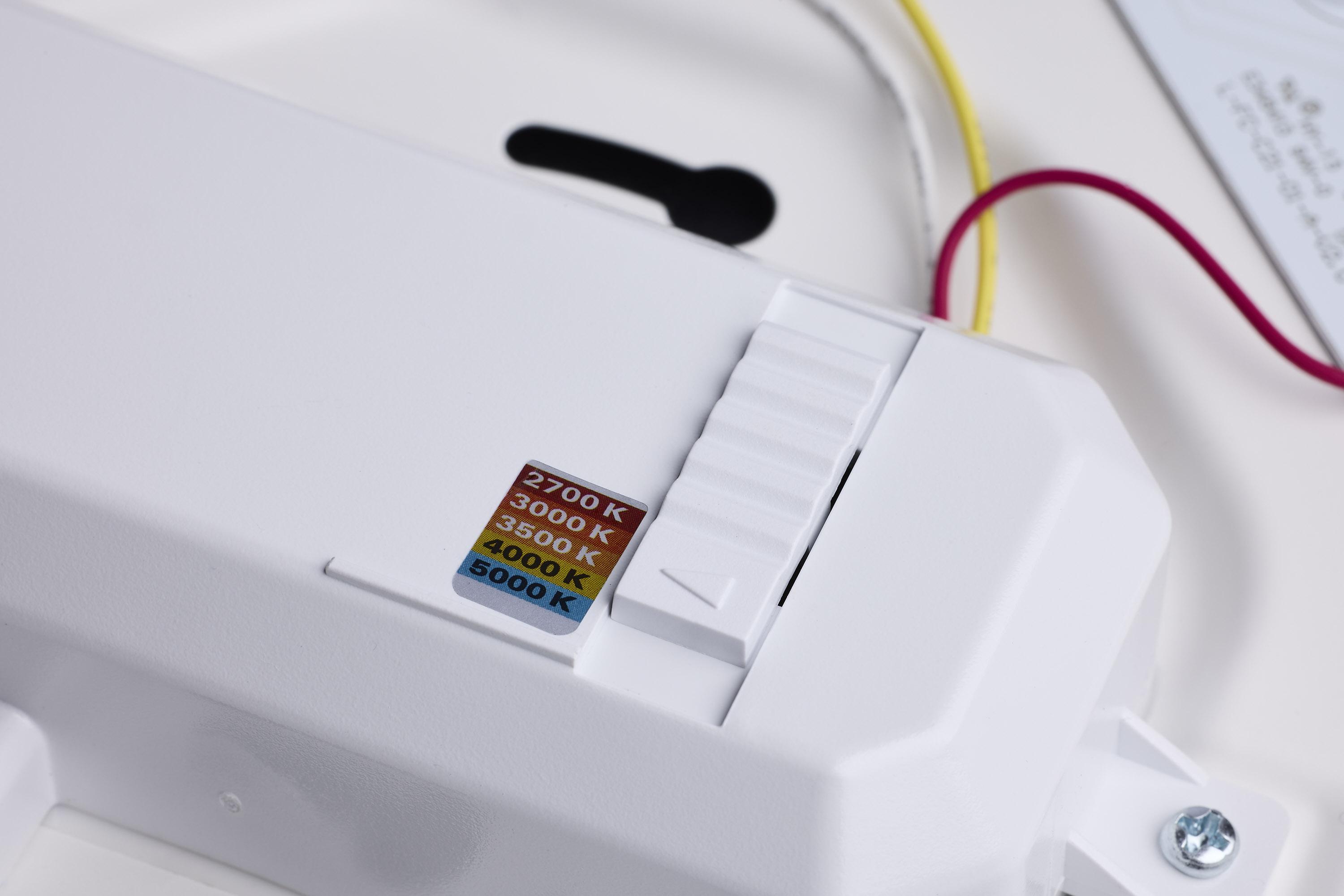

  • The SATCO NUVO 62-1854, 11 in square LED Cloud fixture features 5 CCT selectable technology and a high 90 CRI rating, ensuring exceptional and uniform illumination
  • It is crafted with a durable, non-yellowing PMMA lens and is rated for damp locations, m
  • Dimmable down to 10 percent

Description

SATCO NUVO's LED Cloud fixtures offer 5 CCT selectable technology and a high 90 CRI rating for exceptional, uniform illumination. Available in round or square designs with durable, non-yellowing PMMA lenses, they are rated for damp locations, making them ideal for various settings. Select models feature integrated microwave sensors for energy saving, motion-activated lighting, while others are NEC-compliant for closet rated use, with some combining both features for a wide variety of applications. With clean designs that blend seamlessly into any space, these fixtures are available in 0-10V dimmable, 10 percent dimming, and non-dimmable options. Designed to last 50,000 hours, they provide a hassle-free solution for living rooms, bedrooms, offices, hallways, and more, enhancing both ambiance and functionality.|The SATCO NUVO 62-1854, 11-inch square LED Cloud fixture features 5 CCT selectable technology and a high 90 CRI rating, ensuring exceptional and uniform illumination. It is crafted with a durable, non-yellowing PMMA lens and is rated for damp locations, making it suitable for a range of environments. It is also NEC-compliant for closet use and dimmable down to 10 percent, offering flexible lighting control for various settings. With a clean design that seamlessly integrates into different spaces and a long 50,000-hour lifespan, this fixture provides a hassle-free solution for living rooms, bedrooms, offices, hallways, and more, enhancing both ambiance and functionality.

NUVO by SATCO 62-1854 is an 11-inch square LED cloud flush-mount fixture rated 11W at 120V. It provides 1100–1180 lumens, 90+ CRI and five selectable CCT settings from 2700K to 5000K. The dimmable white steel fixture is rated for damp locations and clothes-closet installations when installed to applicable code.

Specifications

Amperage Rating

0.092 A

Average Life

50000 hr

Ballast Type

Dimmable

Color Rendering Index (CRI)

90+

Color Temperature

2700/3000/3500/4000/5000 K

Cord Type

Hardwired

Dimensions

3.15 in H x 11.02 in W x 11.02 in L

Fixture Wattage

11 W

Housing Finish

White

Housing Material

Steel

Light Color

Warm White to Natural Light

Lumens

1100 to 1180 Lumens

Mounting Type

Flush

Voltage Rating

120 V

Standard Approval

cETLus Listed|RoHS Compliant|FCC Compliant|Canadian Standard ICES-005|California T24 Listed|NEC Compliance|PROP65: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer, or birth defects, or other reproductive harm. For more information go to: http://www.P65Warnings.ca.gov.

Documentation

Installation Instructions https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_by_SATCO_62_1854_Instruction_Installation_Manual.pdf

Dimensional Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_by_SATCO_62_1854_Line_Drawing.pdf

NUVO 62-1854 LED Cloud Fixture Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_by_SATCO_62_1854_Specification_Sheet.pdf
