NUVO® by SATCO 65-625R1

NUVO® by SATCO 65-625R1 Round Wide Beam Angle Canopy Light, 40 W Fixture, 120 to 277 V

Brand: NUVO® by SATCO

Item ID: 571699

MPN: 65-625R1

Login for Price

Features

  • Integrated Sensor Port
  • IK08 Impact Rated
  • 50,000 Functional Life

Description

SATCO NUVO's LED Round Canopy Lights are the perfect combination of durability and versatile functionality. With ColorQuick technology, easily select 3000K, 4000K, or 5000K CCT during installation. Also, these canopy lights feature an integrated sensor port, providing a convenient option to add a microwave or PIR motion sensor for even more energy savings and enhanced security. Crafted from premium die-cast aluminum, these fixtures are IK10 impact rated and designed to withstand the toughest environments. Whether brightening up a parking garage, illuminating a loading dock, or adding extra security to your outdoor space, these canopy fixtures are a versatile lighting solution.|SATCO NUVO's 65-625R1 LED Round Canopy Light offers durable and versatile lighting with ColorQuick technology for easy color temperature selection. With an integrated sensor port, adding microwave or PIR motion sensors is effortless. This canopy light is made of premium die-cast aluminum, with an IK10 impact rating and 4kV surge protection. Wet location rated, this canopy light is perfect for outdoor spaces, parking garages, and loading docks. With an efficacy of up to 155 lumens per watt, this canopy light is a versatile and energy-efficient lighting solution.

NUVO® by SATCO, 65/625R1, Wide Beam Angle Canopy Light, Round, 120 to 277 V, 40 W Fixture, LED Lighting Technology, 155 Lumens/W Light Output, 50000 hr Average Life, Cool White/Warm White Light, 3000/4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Ballast, Polycarbonate Lens, 5785, 6215, 5909 Lumens, IP65 Enclosure, Ceiling/Pendant Mounting, Die-Cast Aluminum Housing Material, 3.15 in H x 10.04 in W Dimensions

Specifications

Average Life

50000 hr

Ballast Type

0 to 10 V Dimming

Color Rendering Index (CRI)

80

Color Temperature

3000/4000/5000 K

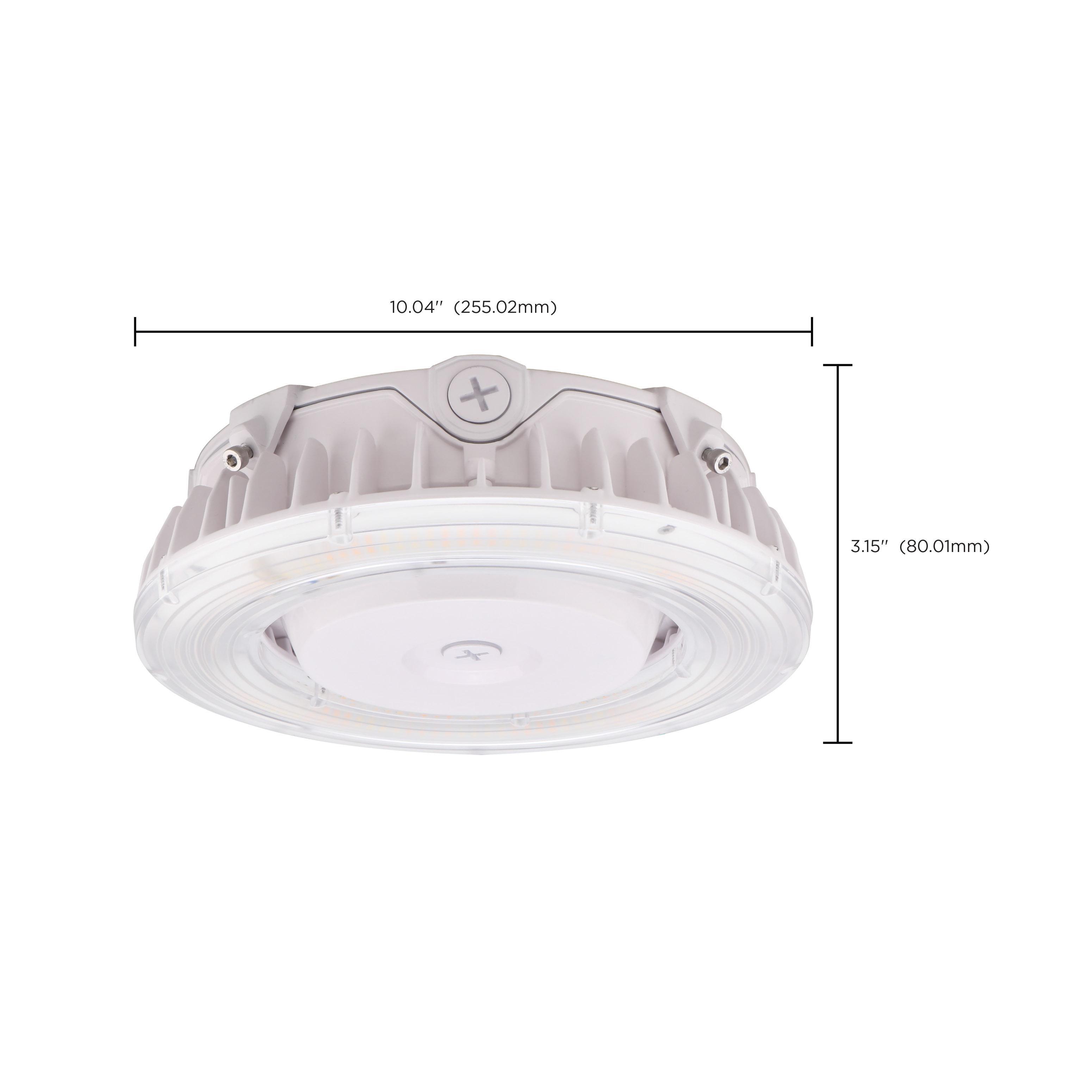

Dimensions

3.15 in H x 10.04 in W

Enclosure Type

IP65

Fixture Wattage

40 W

Housing Finish

White

Housing Material

Die-Cast Aluminum

Lens Type

Polycarbonate

Light Color

Cool White/Warm White

Light Output

155 Lumens/W

Lighting Technology

LED

Lumens

5785, 6215, 5909 Lumens

Mounting Type

Ceiling/Pendant

Type

Round

Voltage Rating

120 to 277 V

Standard Approval

cULus Certified|DLC Approved|FCC|RoHS Compliant

Application

Recommended for Mounting Height, Multiple half-inch knockouts, Three quarter inch back knockout for pendant applications

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_65_625R1_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_65_625R1_Instruction_Installation_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_65_625R1_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_65_625R1_Line_Drawing.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_65_625R1_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_65_625R1_Specification_Sheet.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_65_625R1_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NUVO_65_625R1_Technical_Bulletin.pdf
