SATCO® S11835R1 LED, 9 W, 800 Lumens
Brand: SATCO®
Item ID: 548471
MPN: S11835R1
Login for Price
Features
Description

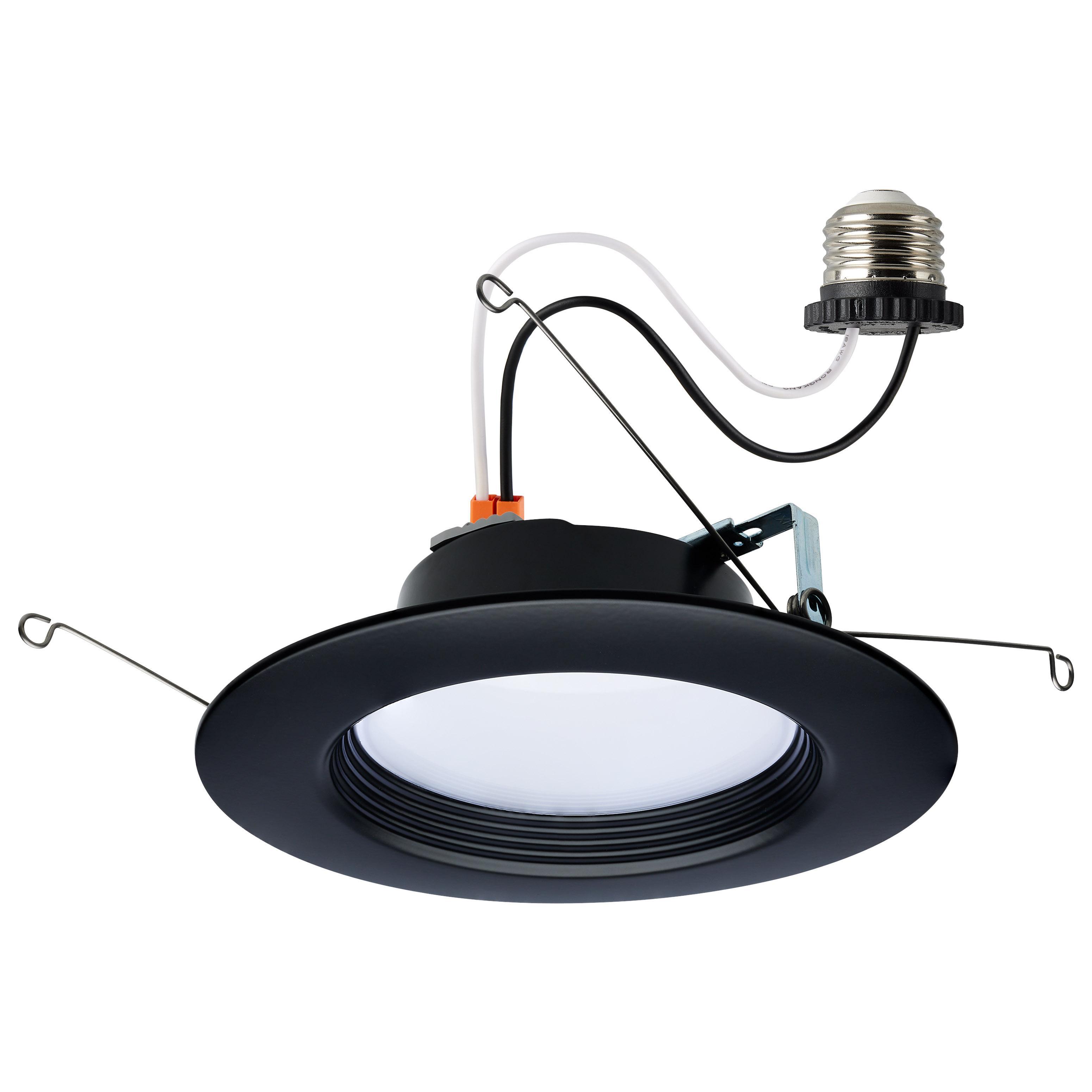

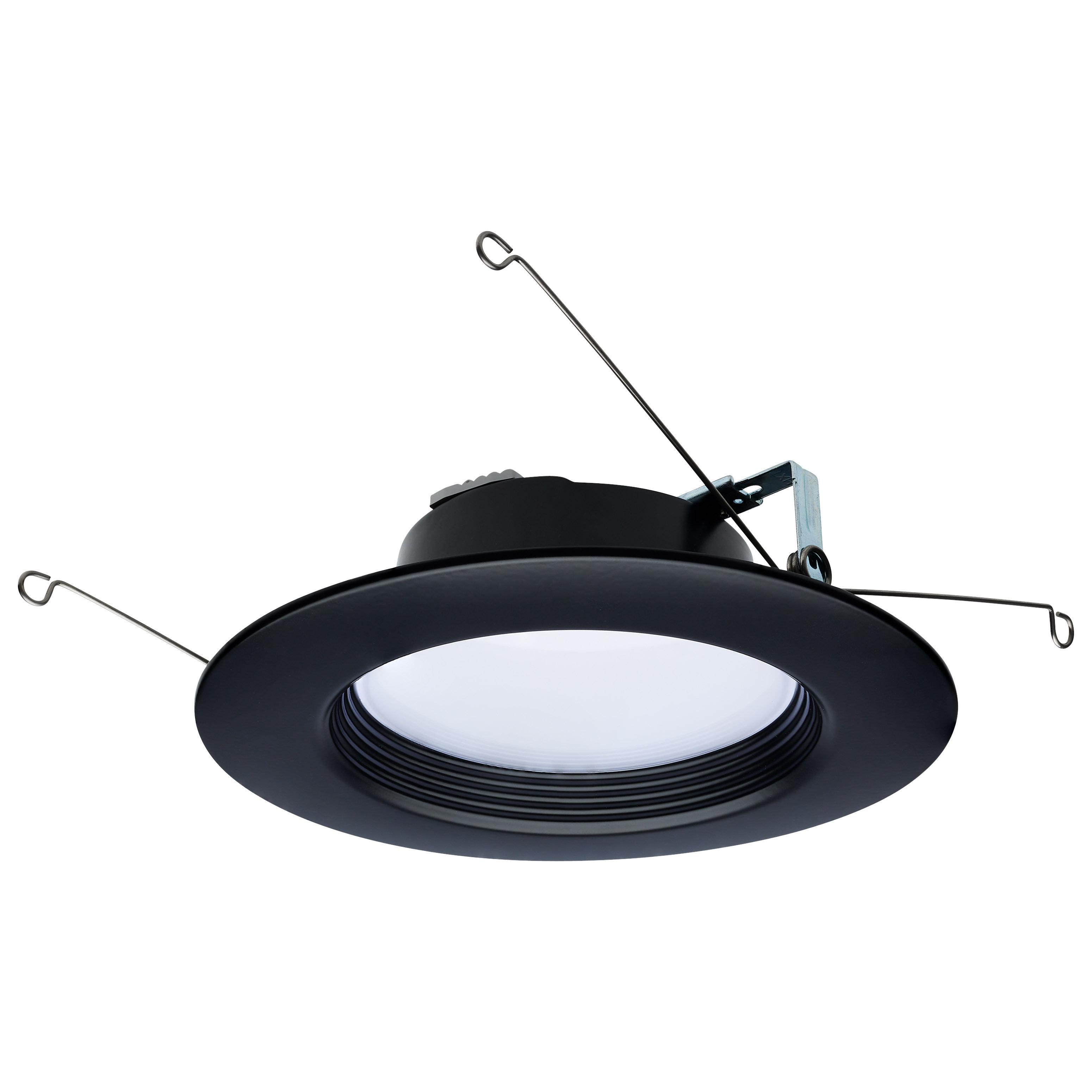

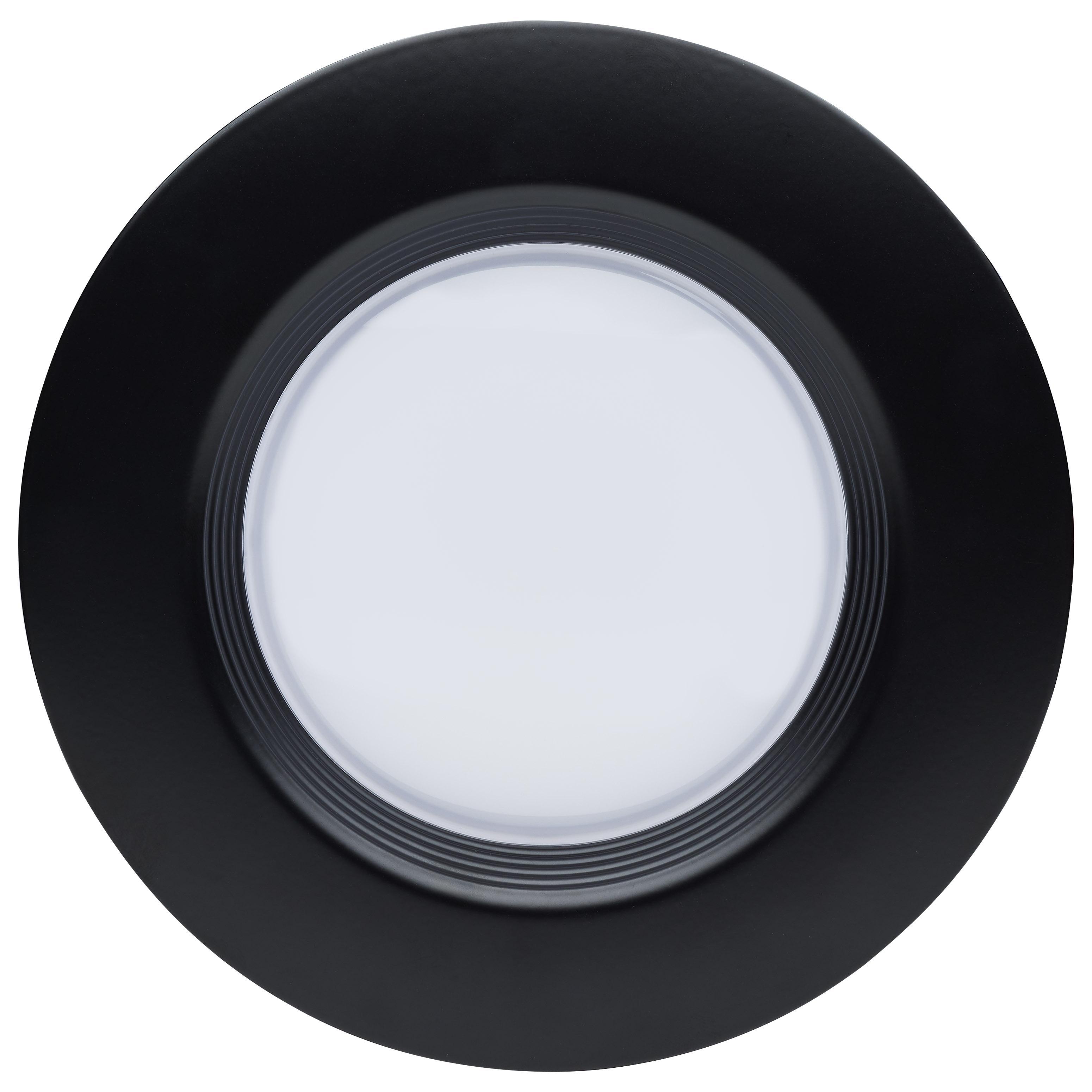

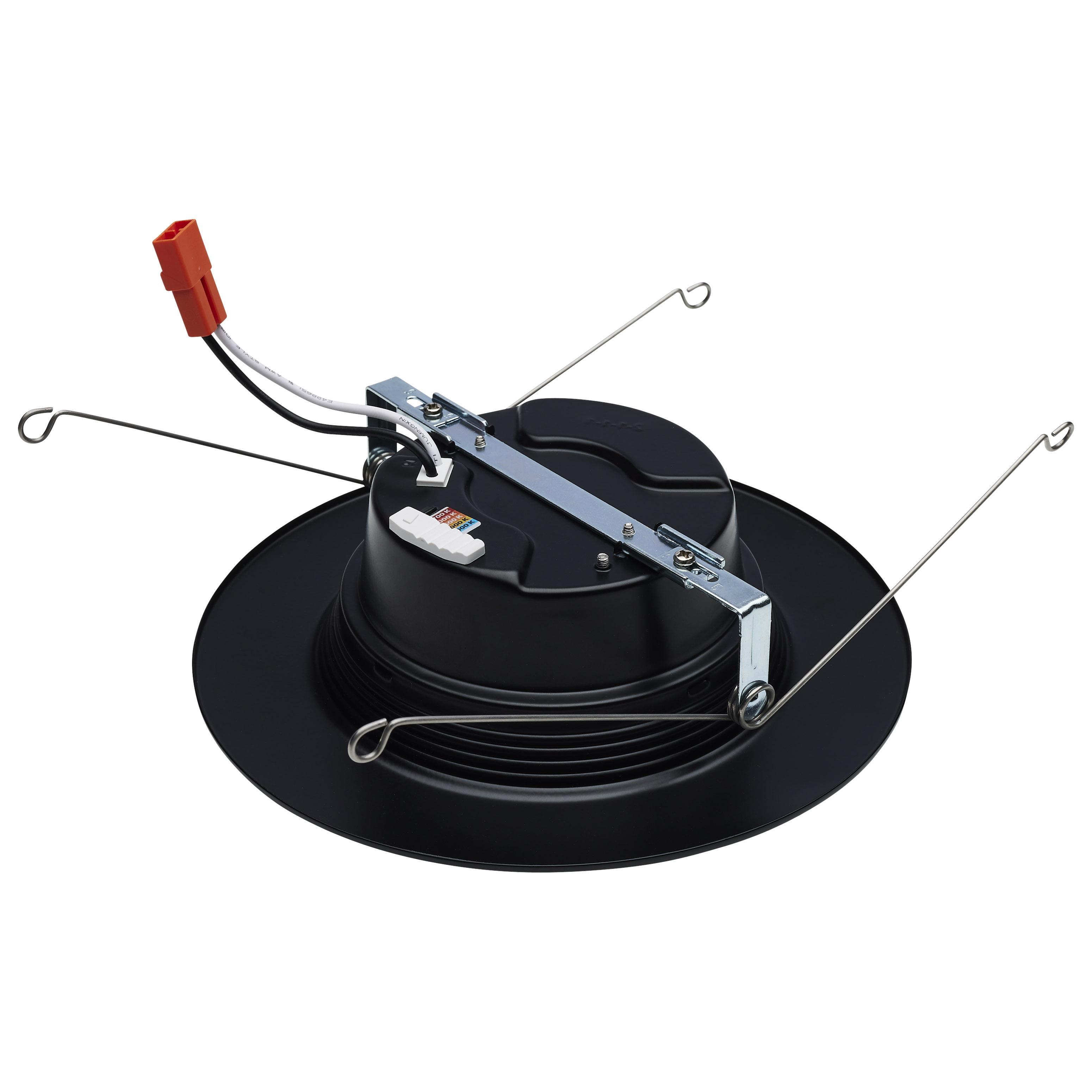

SATCO NUVO's LED Retrofit Downlights are the easy way to convert traditional recessed lighting to LED. Offered in 4-inch and 5/6-inch models, these fixtures are sized for, and come ready with, an E26 base adapter for instant illumination when installed with existing cans. The stepped baffle design reduces glare and the fixture produces exceptional color rendering to enhance any environment from home to office.|SATCO NUVO's S11835R1 LED Retrofit Downlight is the easy way to convert traditional recessed lighting to high-lumen LED. This 5/6-inch round fixture is sized for, and comes ready with, an E26 base adapter for instant illumination when installed with existing cans. The stepped baffle design reduces glare and the fixture produces exceptional color rendering to enhance any environment from home to office.
SATCO®, S11835R1, LED, 9WLED/DLR/5-6/CCT-SEL/RD/BL Designation, 9 W Wattage, 120 V, 800 Lumens, 50000 hr Average Life, 90 CRI, 2700/3000/3500/4000/5000 K Color Temperature, Black Lamp, Indoor Fixture, 90 deg Beam, 2.32 in H x 7.41 in W Dimensions
Specifications
Average Life |
50000 hr |
Beam Angle |
90 deg |
Color Rendering Index (CRI) |
90 CRI |
Color Temperature |
2700/3000/3500/4000/5000 K |
Designation |
9WLED/DLR/5-6/CCT-SEL/RD/BL |
Dimensions |
2.32 in H x 7.41 in W |
Fixture Type |
Indoor |
Lamp Finish |
Black |
Lumens |
800 Lumens |
Voltage Rating |
120 V |
Wattage |
9 W |
Standard Approval |
cETLus - Classified|ADA Compliant|RoHS Compliant|FCC Compliant|Energy Star Certified|Air Tight Rated|IC Rated|California T24 Listed |
Application |
For Recessed Lighting |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11835R1_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11835R1_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11835R1_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11835R1_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11835R1_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S11835R1_Specification_Sheet.pdf
SATCO® S11835R1
