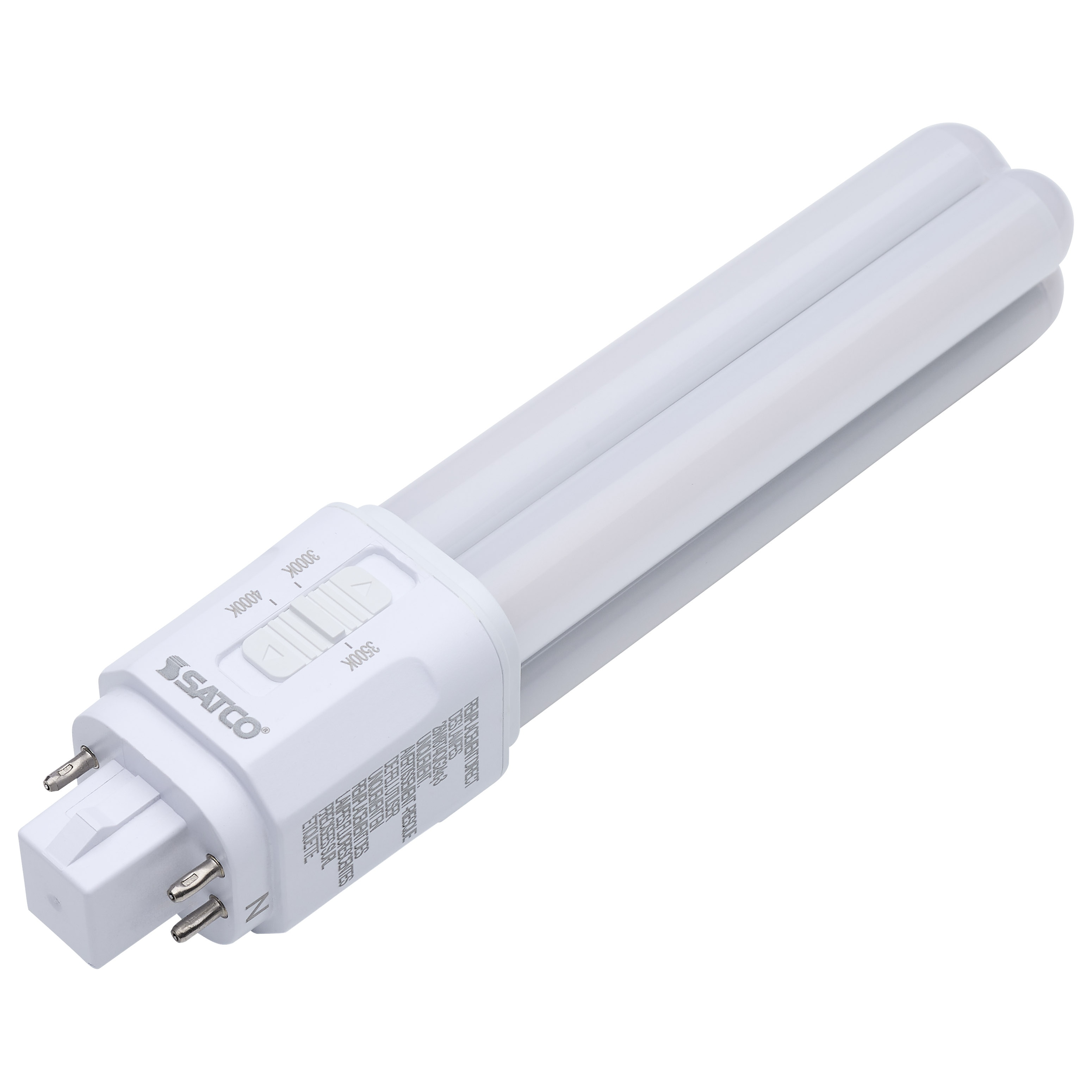

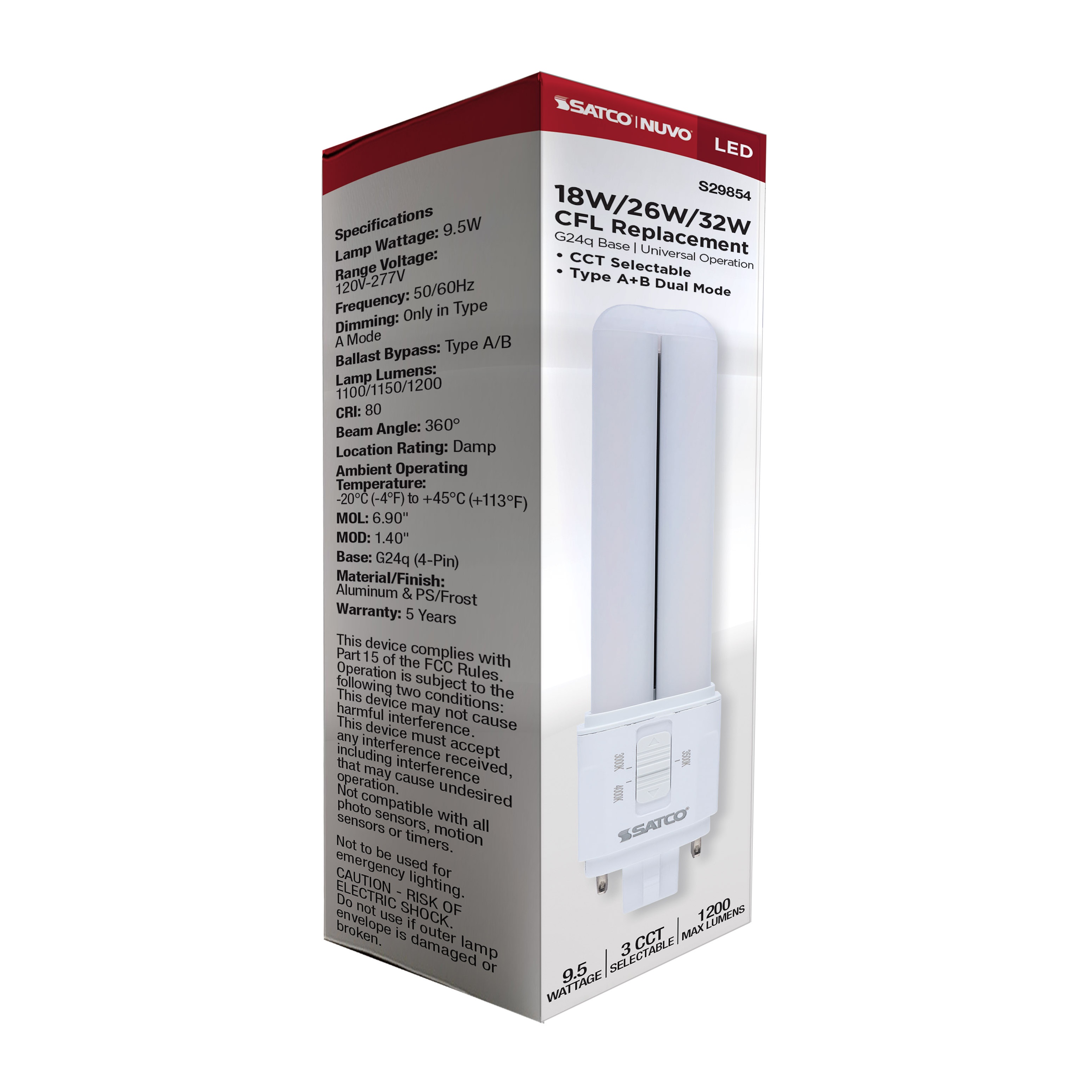

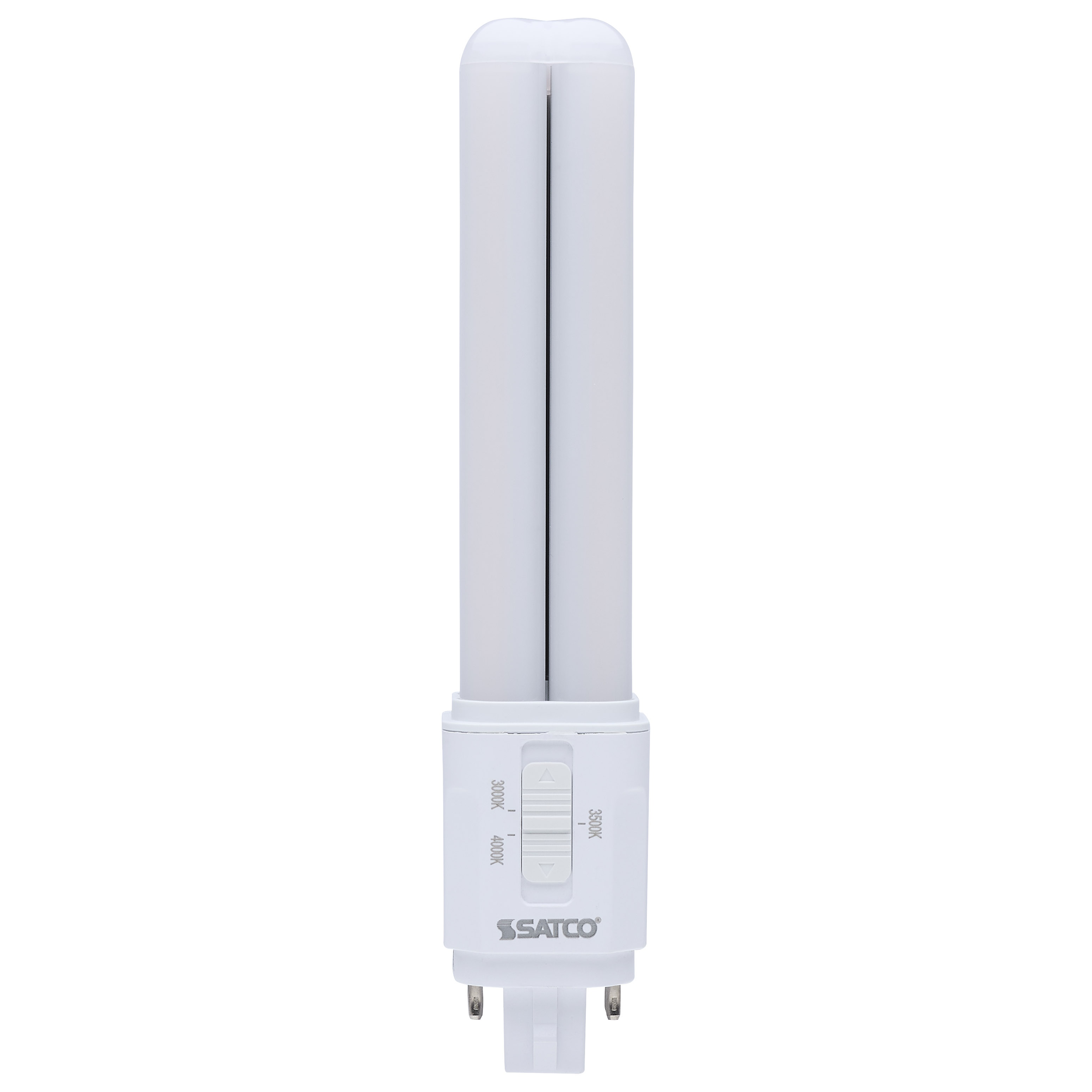

SATCO® S29854

SATCO® S29854 Type A/B LED Linear and Tubular, 9.5 W, 18, 26, 32 W Incandescent Equivalent, G24Q Lamp Base, 1100, 1150, 1200 Lumens

Brand: SATCO®

Item ID: 559564

MPN: S29854

Login for Price

Features

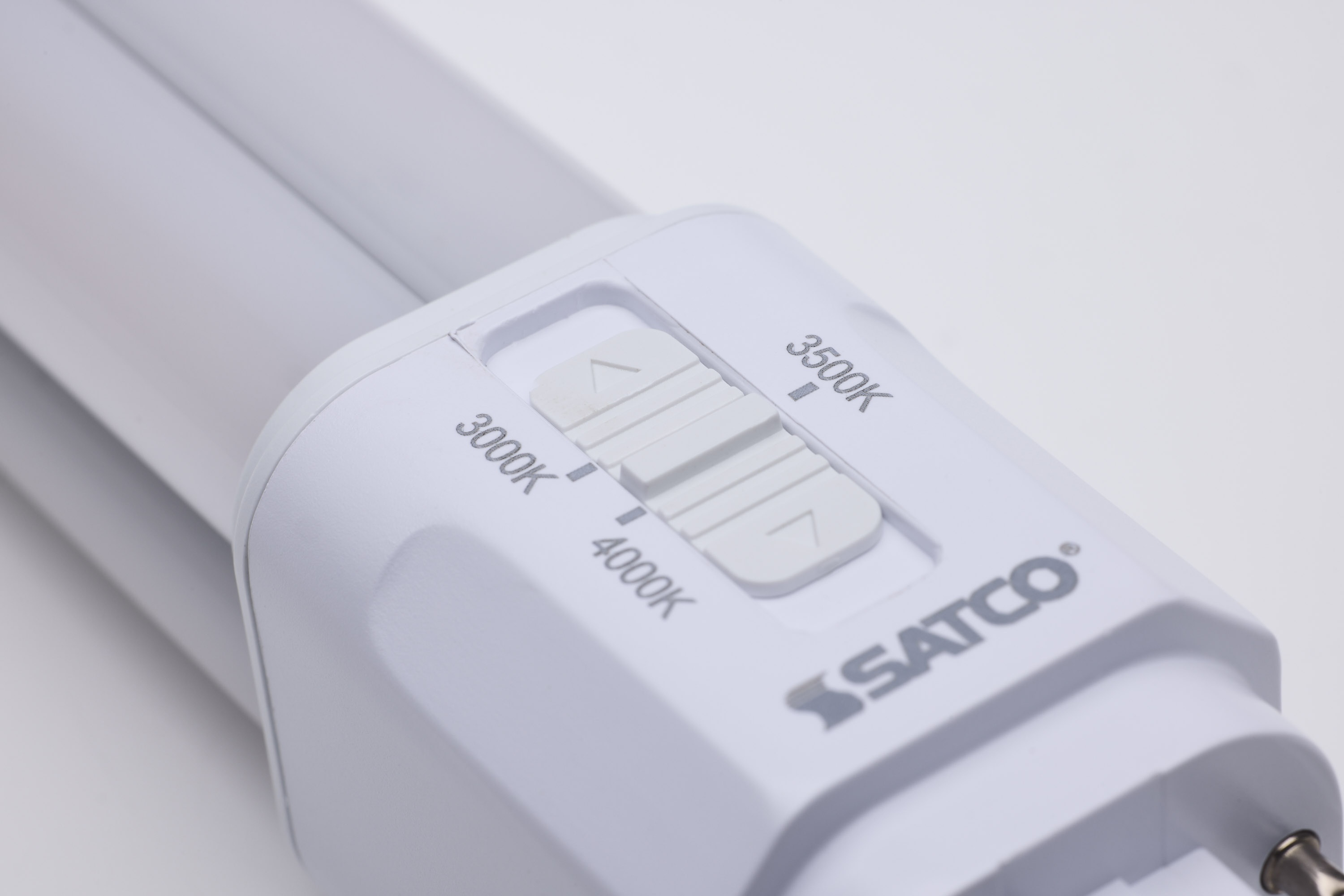

  • 3 CCT Selectable
  • Type A/B Ballast Bypass

Description

SATCO NUVO's innovative CFL replacement lamps provide an efficient solution for upgrading older 18W, 26W, or 32W CFL fixtures to the energy-saving advantages of LED technology. These lamps are compatible with three distinct ballast options, providing flexibility for your existing setup. Type A/B and Type A lamps are ideal for replacing older CFLs without requiring rewiring, while Type B lamps are perfect for installations without a ballast. With two base options available-G24q (4-pin) and G24d (2-pin)-and color temperatures from 2700K to 4000K, users can tailor their lighting to suit diverse environments. Delivering a broad range of lumen outputs, our lamps offer exceptional versatility and long-lasting performance, making them an excellent choice for both residential and commercial spaces.|SATCO NUVO's S29854 9.5-watt PL lamp offers a versatile replacement for traditional 18W, 26W, and 32W CFL lamps. Designed with a G24q (4-pin) base, it supports both Type A and Type B ballast bypass operation, making it ideal for retrofitting without rewiring. With selectable CCT options of 3000K, 3500K, and 4000K, this lamp delivers adaptable lighting for a range of environments. Crafted from durable aluminum and plastic, it is damp-location rated, boasting a 50,000-hour lifespan and a 5-year warranty. This energy-efficient solution upgrades lighting with ease for both commercial and residential applications.

SATCO®, S29854, LED Linear and Tubular, Type A/B, 9.5 W Wattage, 18, 26, 32 W Incandescent Equivalent, 120 to 277 V, 0.07 to 0.03 A, G24Q Lamp Base, 1100, 1150, 1200 Lumens, 50000 hr Average Life, Warm to Cool White, 80 CRI, 3000, 3500, 4000 K Color Temperature, Frost Lamp, Type A/B Bypass Ballast, Enclosed Fixture, LED Filament, 360 deg Beam, 7.01 in H x 1.46 in W x 1.46 in L Dimensions

Specifications

Amperage Rating

0.07 to 0.03 A

Average Life

50000 hr

Ballast Type

Type A/B Bypass

Beam Angle

360 deg

Color Rendering Index (CRI)

80

Color Temperature

3000, 3500, 4000 K

Color

Warm to Cool White

Dimensions

7.01 in H x 1.46 in W x 1.46 in L

Filament

LED

Fixture Type

Enclosed

Incandescent Equivalent

18, 26, 32 W

Lamp Base Type

G24Q

Lamp Finish

Frost

Lumens

1100, 1150, 1200 Lumens

Type

Type A/B

Voltage Rating

120 to 277 V

Wattage

9.5 W

Standard Approval

NSF Approved|FCC Compliant|cULus|Damp Location Rated|cULus Classified|RoHS Compliant

Application

Suitable for Use in Enclosed Fixtures

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S29854_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S29854_Installation_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S29854_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SATCO_S29854_Specification_Sheet.pdf
