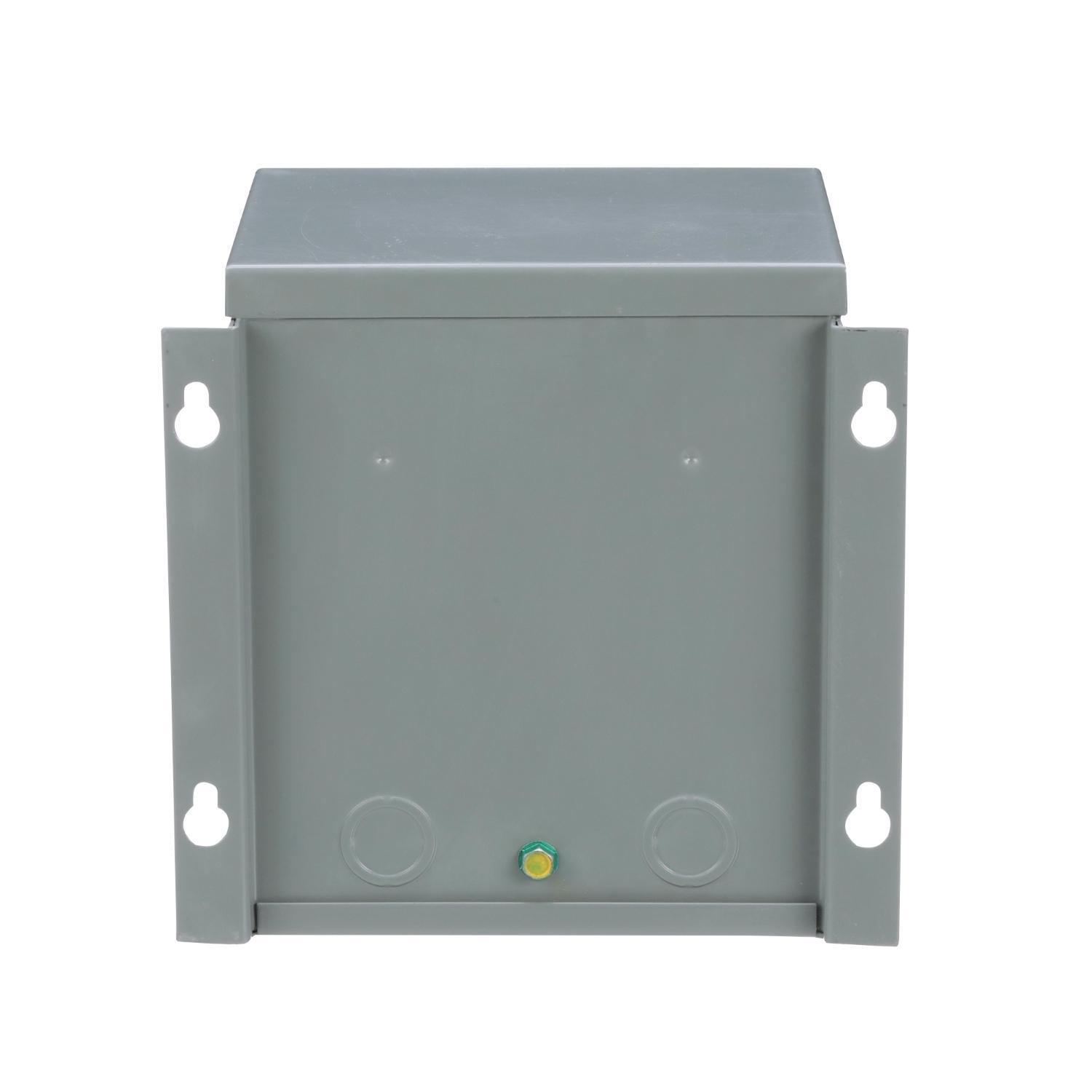

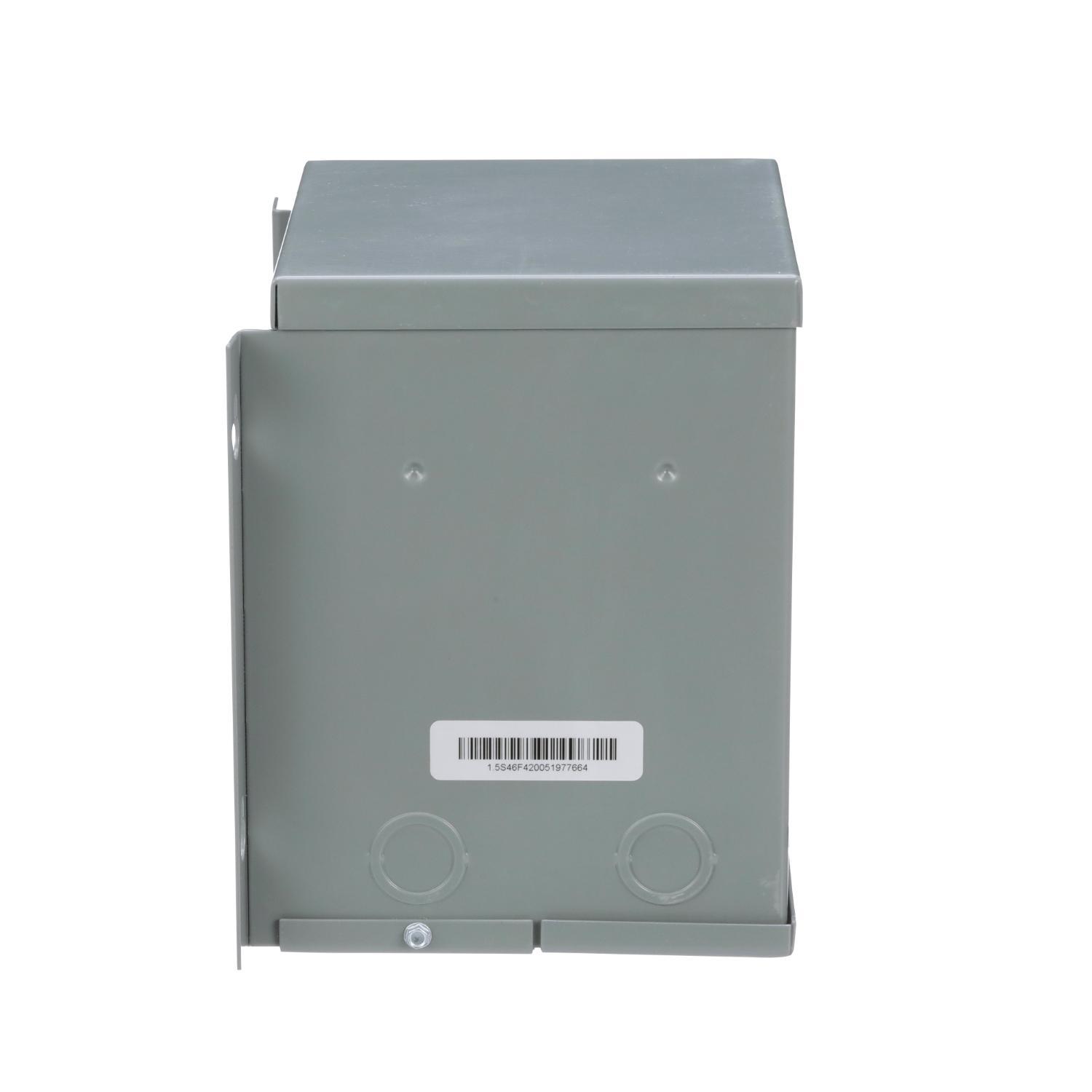

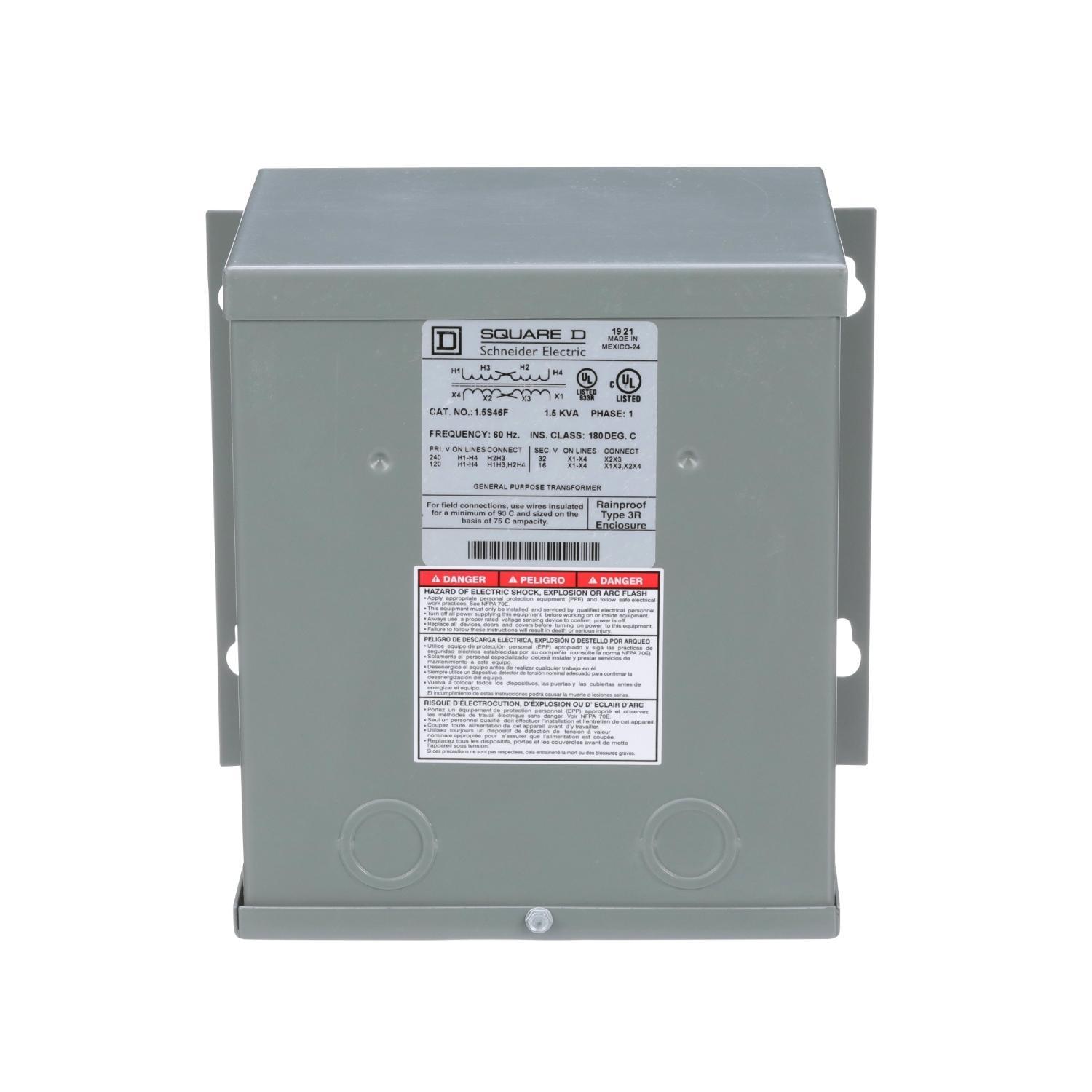

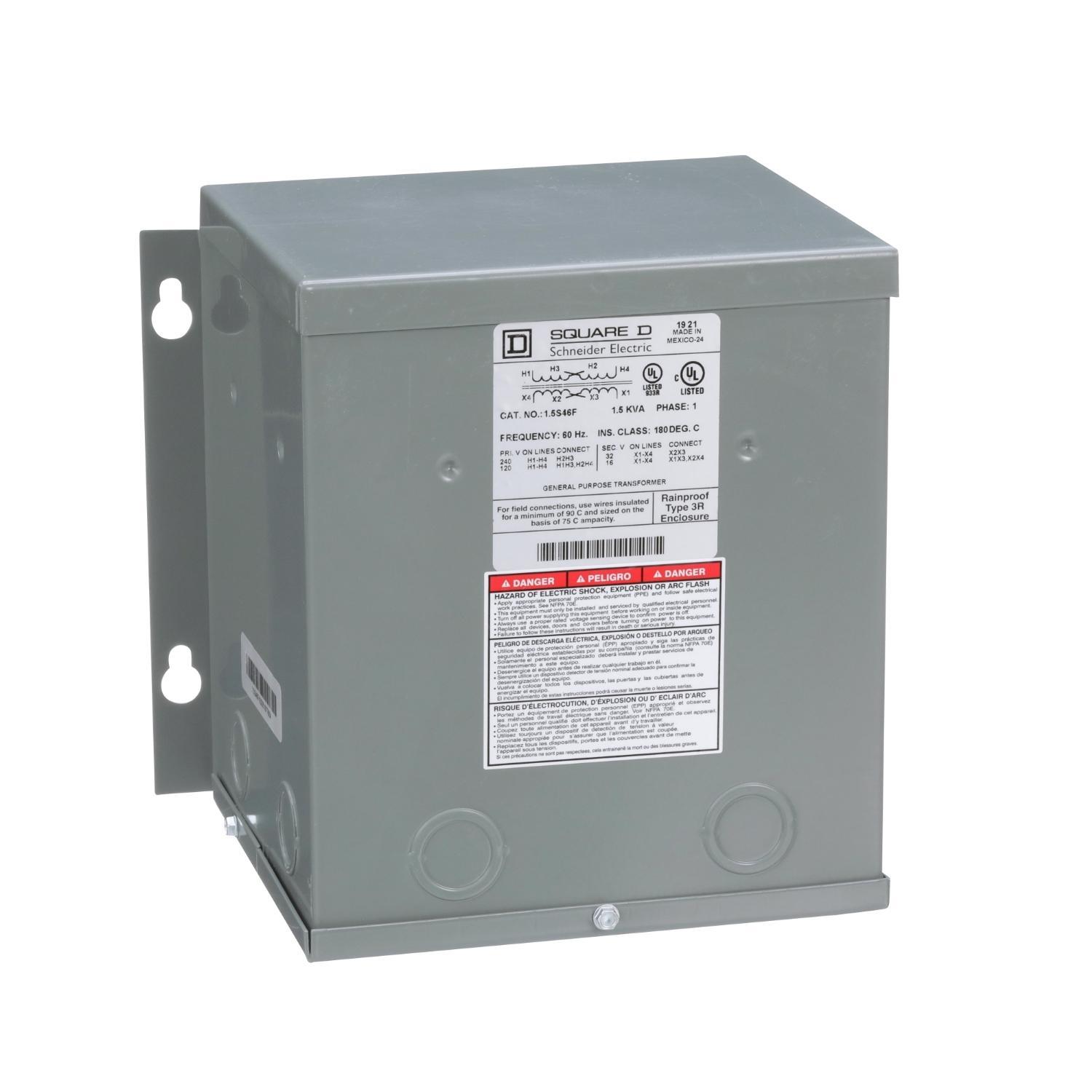

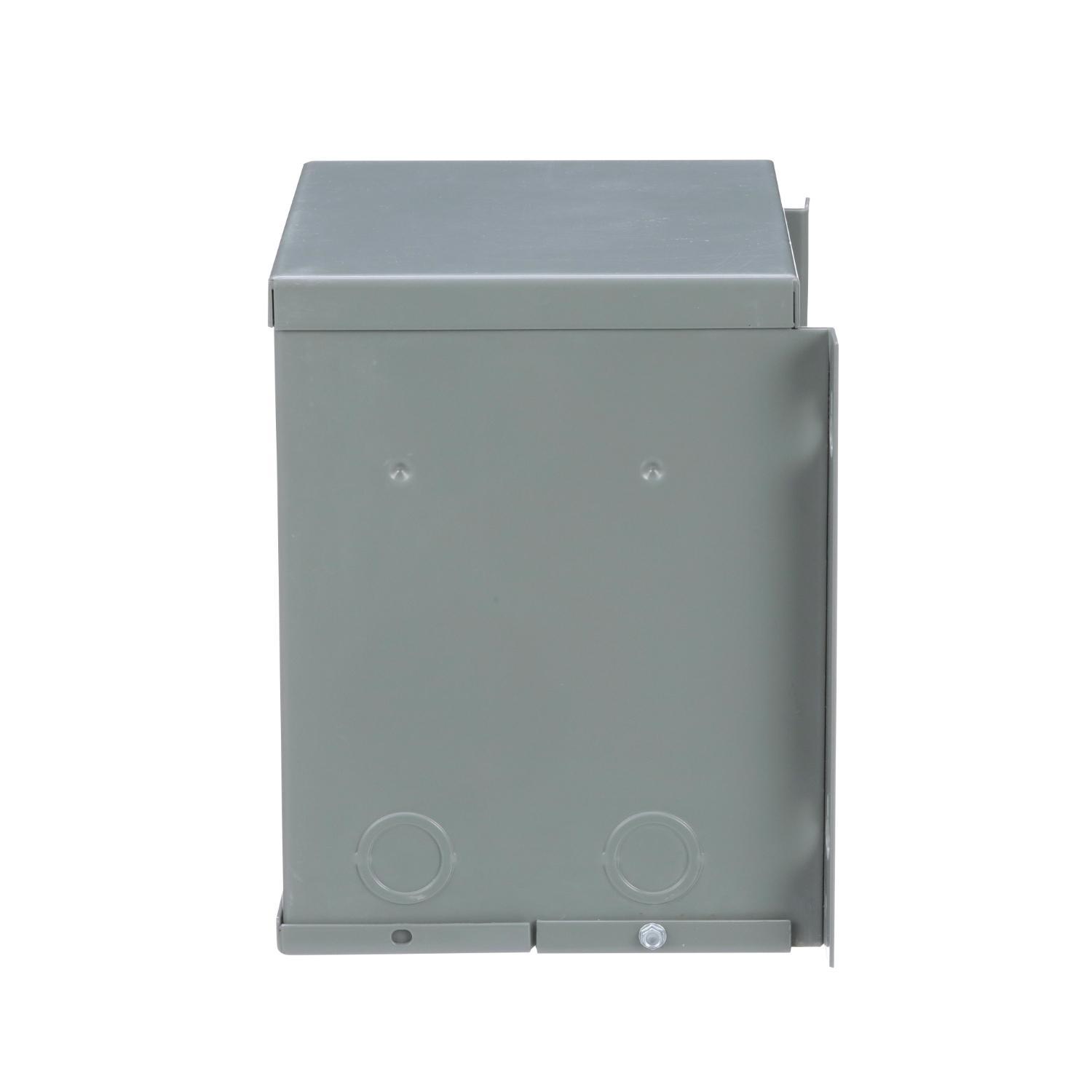

Square D™ 1.5S46F
Square D™ 1.5S46F Dry Buck And Boost Transformer, 120/240 VAC Primary, 16/32 VAC Secondary, 1.5 kVA Power Rating, 60 Hz, 1 ph Phase
Brand: Square D™
Item ID: 526571
MPN: 1.5S46F
UPC: 785901876458
Login for Price
Features
- The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R-rated
- Carry the full load stated on the nameplate isolation transformer
- Can carry loads in excess of their nameplate rating
- Numerous voltage ratios and current ratings can be obtained by varying the connection between the two primary windings and the two secondary windings
- Increased ampacity depends upon the ratio and the voltage to which the transformer is subjected
- Economical, compact means of slightly adjusting an applications voltage up or down
- Gray color
- Powder coated painted steel enclosure
- Sealed and resin filled
- 180 deg C insulation temperature
Description
Square D™, 1.5S46F, Buck And Boost Transformer, Dry, 120/240 VAC Primary, 16/32 VAC Secondary, 1.5 kVA Power, 60 Hz Frequency, 1 ph, Wall Mounting, 180 deg C Insulation, NEMA 3R/IP54 Enclosure, 115 deg C, Steel Housing Material, 8.25 in H x 8.68 in W x 6.56 in D Dimensions
Specifications
Dimensions |
8.25 in H x 8.68 in W x 6.56 in D |
Enclosure Type |
NEMA 3R/IP54 |
Frequency Rating |
60 Hz |
Housing Material |
Steel |
Insulation |
180 deg C |
Mounting Type |
Wall |
Phase |
1 ph |
Power Rating |
1.5 kVA |
Primary Voltage |
120/240 VAC |
Secondary Voltage |
16/32 VAC |
Temperature Rating |
115 deg C |
Type |
Dry |
Standard Approval |
RoHS Compliant|CSA Certified|cULus Listed|UL Listed|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov. |
Application |
For buck and boost primary use is that the primary and secondary can be interconnected for use as an autotransformer |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3S46F_Installation_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_1_5S46F_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_1_5S46F_Specification_Sheet.pdf
Technical Bulletin 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_15S40F_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3S67F_Technical_Bulletin.pdf
