Square D™ 15T2F

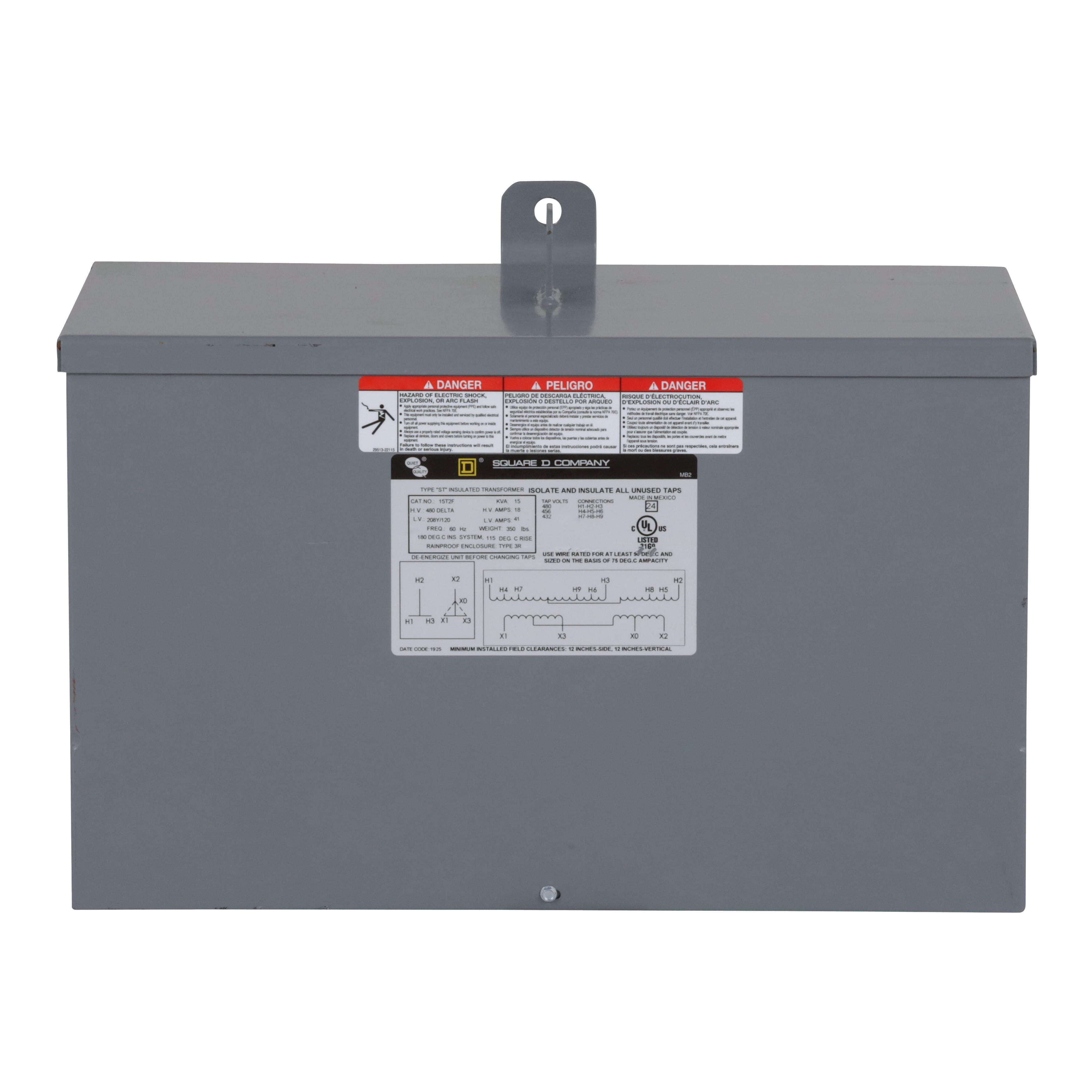

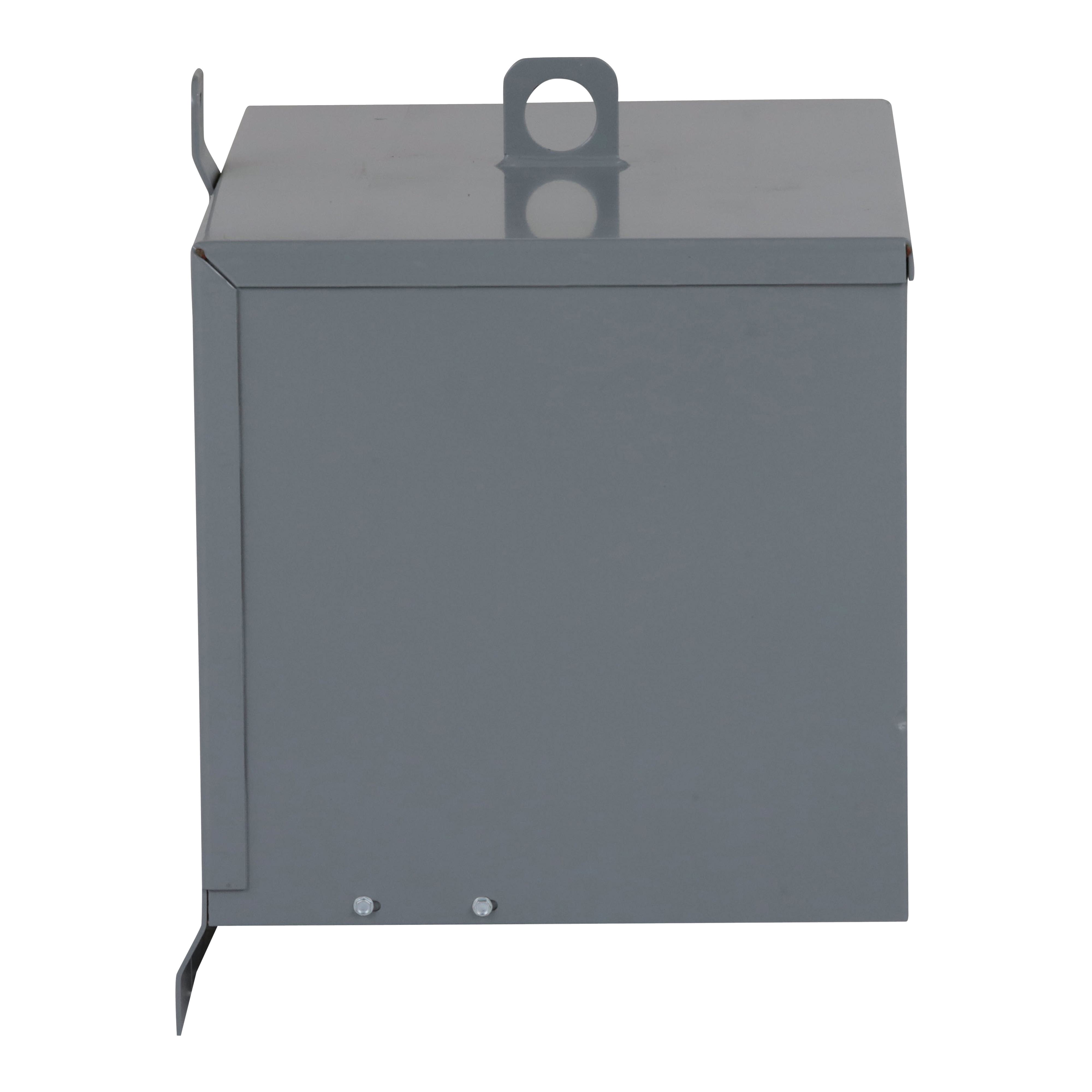

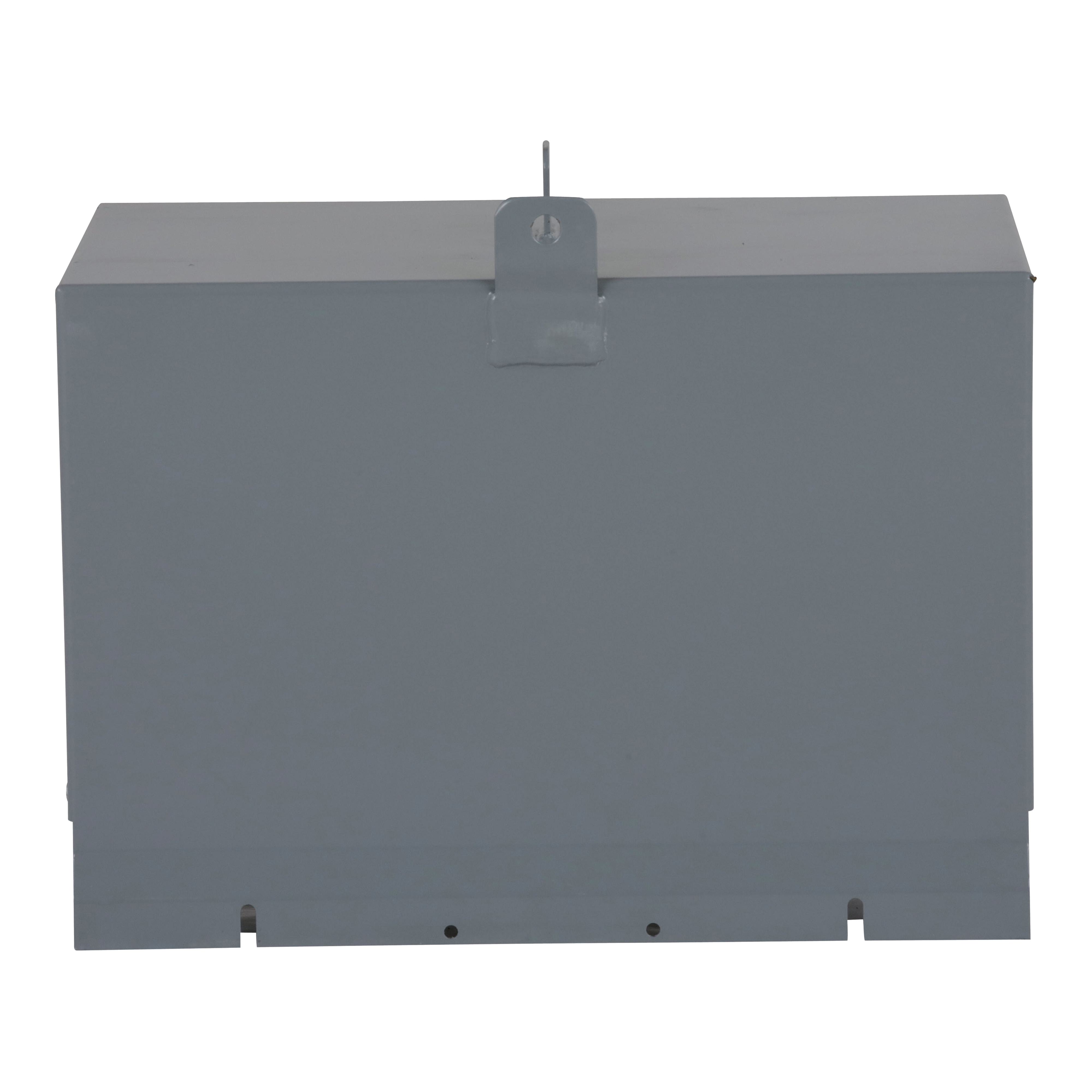

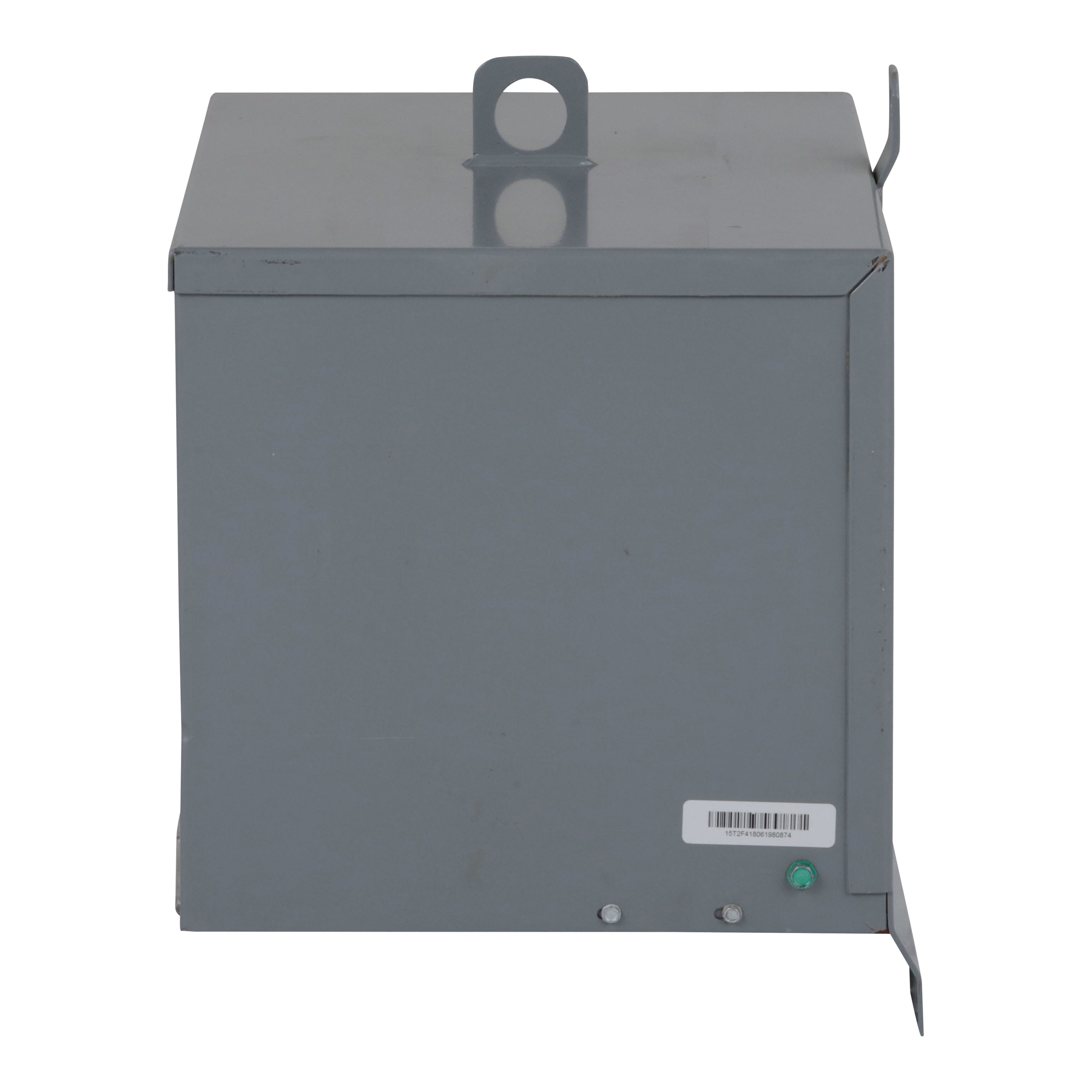

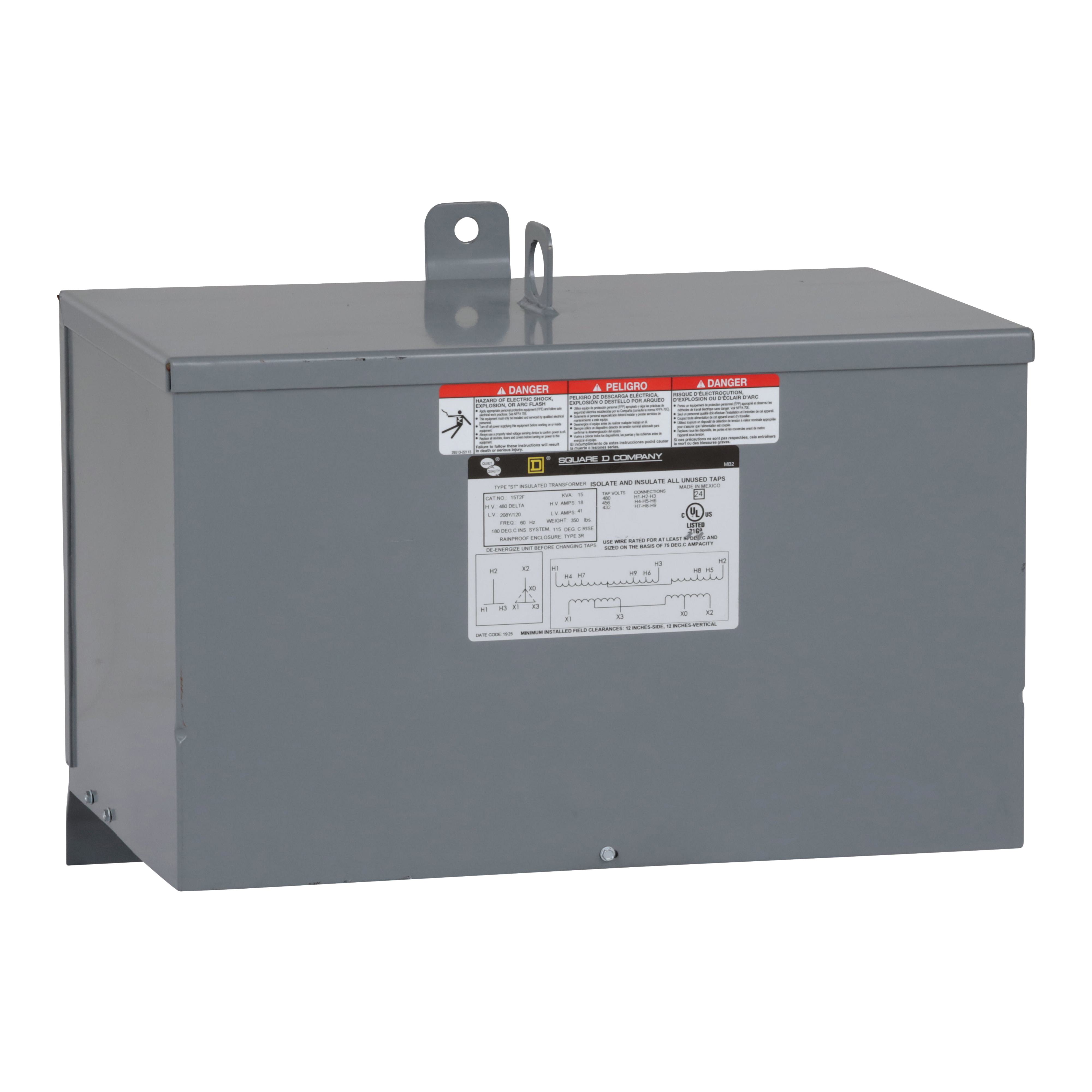

Square D™ 15T2F Dry Sealed Encapsulated General Purpose Transformer, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase
Brand: Square D™
Item ID: 535706
MPN: 15T2F
UPC: 785901359500
Login for Price
Features
- Resin filled general purpose transformers are epoxy encapsulated
- The enclosure has no openings, making resin filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation
- The core and coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection
- Painted steel enclosure
Description
As the industry leading designer, manufacturer and supplier of low voltage, general purpose transformers, Schneider Electric has the expertise necessary to meet your increased demands by providing reliable products and outstanding support services.
Square D™ Transformer, Dry Sealed Encapsulated General Purpose, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 15 kVA Power, 60 Hz Frequency, 3 ph, 2 Taps, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, Steel Housing Material, 12.25 in L x 19.1 in W x 14.75 in H Dimensions
Specifications
Dimensions |
12.25 in L x 19.1 in W x 14.75 in H |
Enclosure Type |
NEMA 3R |
Frequency Rating |
60 Hz |
Housing Material |
Steel |
Insulation |
180 deg C |
Mounting Type |
Wall |
Number of Taps |
2 |
Phase |
3 |
Power Rating |
15 kVA |
Primary Voltage |
480 Delta VAC |
Secondary Voltage |
208Y/120 VAC |
Temperature Rating |
115 deg C |
Type |
Dry Sealed Encapsulated General Purpose |
Standard Approval |
RoHS Compliant|cULus Listed|UL Listed|PROP65: This product can expose you to chemicals including: Phenyl Glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For intended power, heating and lighting applications |
