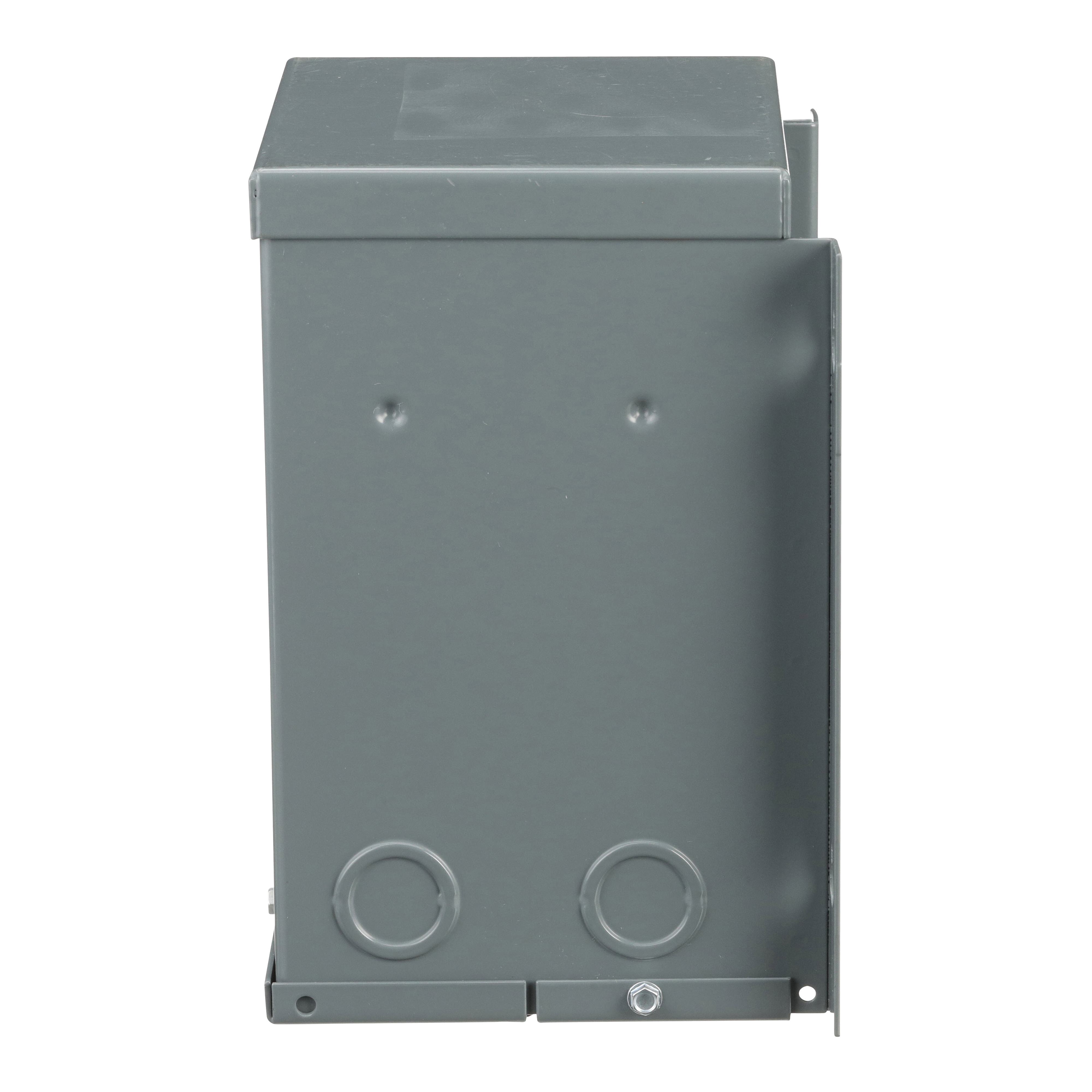

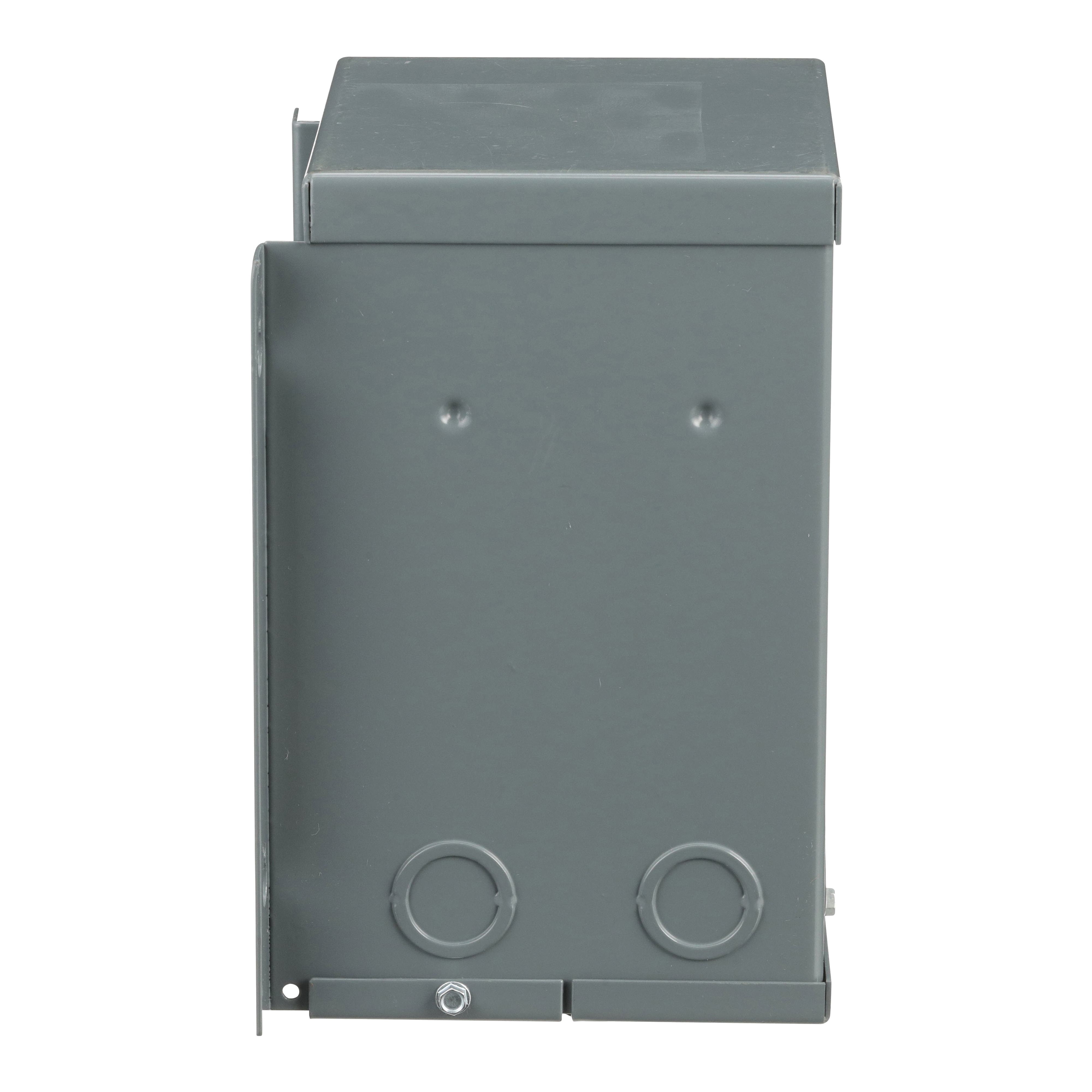

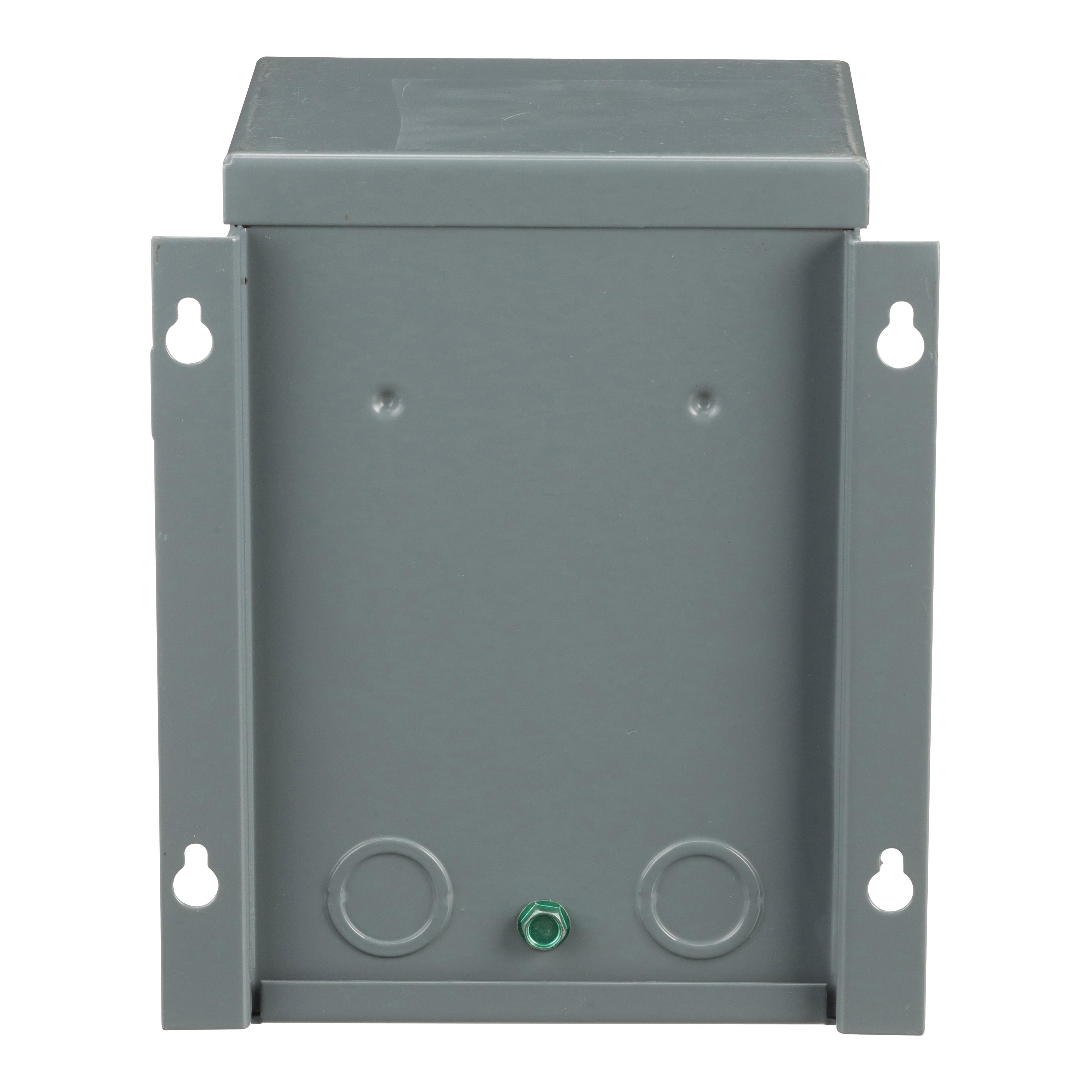

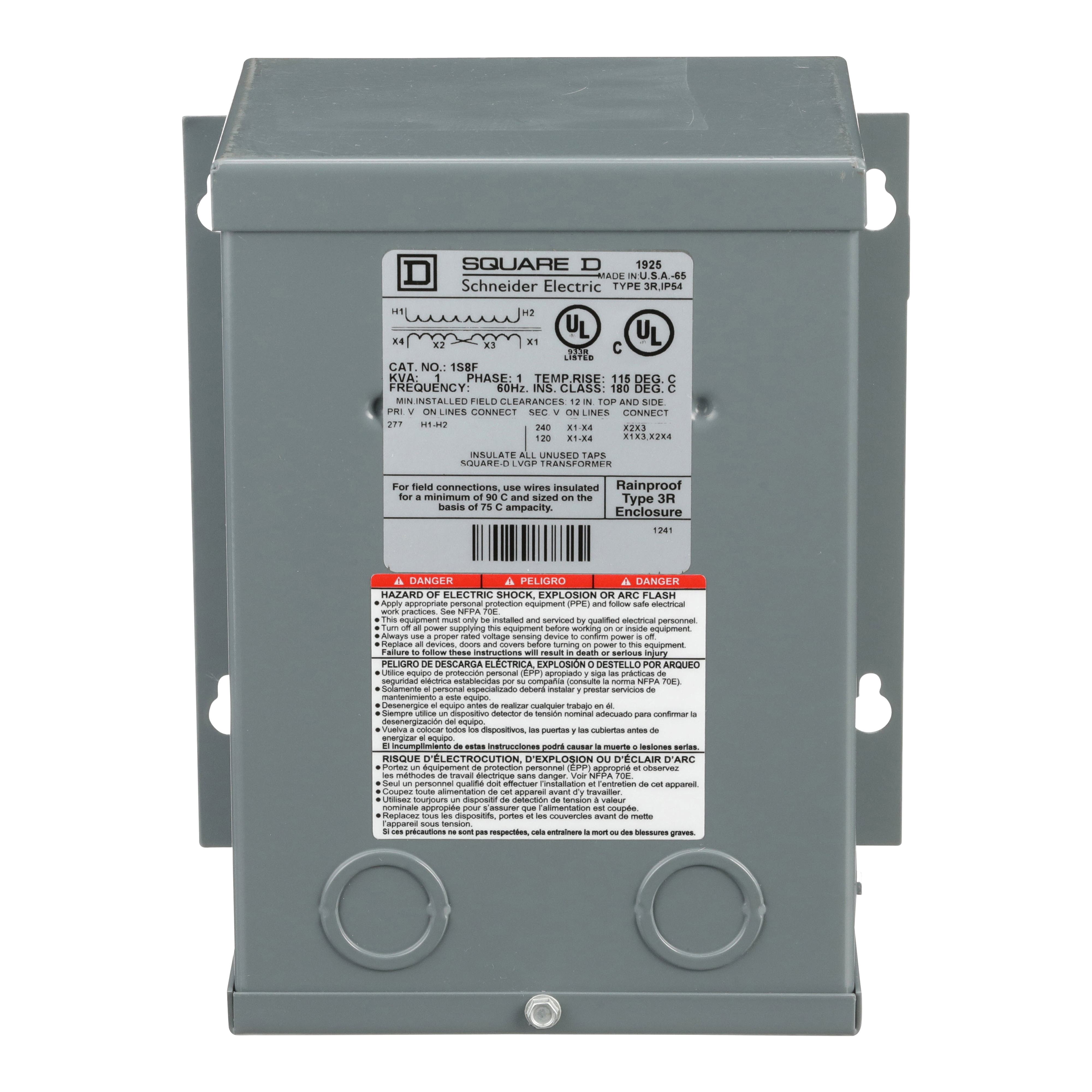

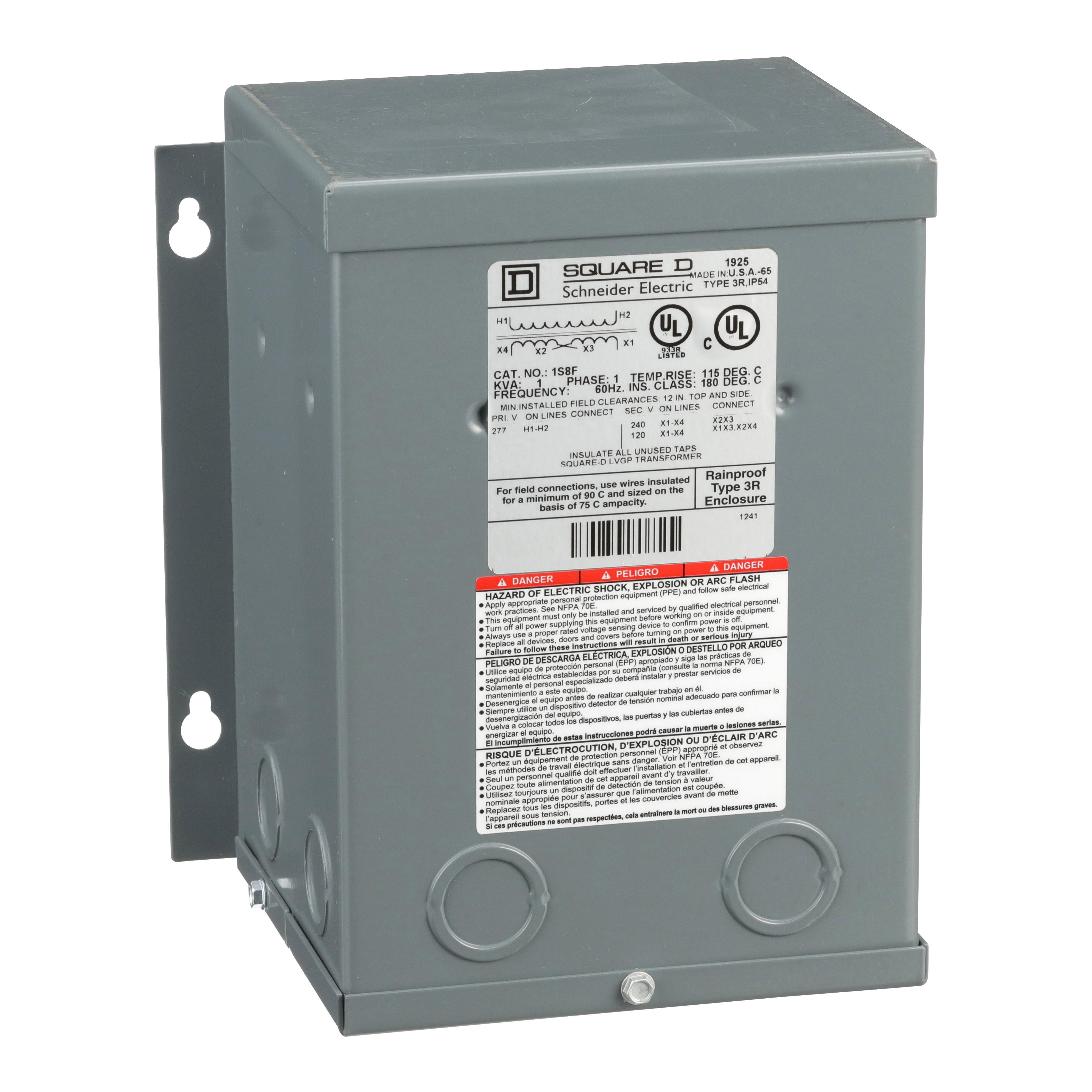

Square D™ 1S8F

• Painted finish
• Individual enclosures from 50 VA through 5 kVA allowing for the most compact solutions in the industry
• Large stock level of the product located in 2 Square D™ distribution centers, allowing customer to obtain product quickly
• Can be field connected for 3-phase applications, when codes limit size of transformers (other air handling space - not to exceed 50 kVA) or where floor space is limited but wall space is abundant
• Can be configured into autotransformer open delta to convert 480 delta to 380 delta or 400 delta or can supply isolation solution from 480 delta to 415Y/240 for overseas equipment arriving in the United states - eliminating the need to wait for customer built transformer
• General purpose - intended for power, heating and lighting applications, these units can be used outdoors without accessories
• Resin filled transformers

Resin filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. These units can be used outdoors without accessories. Units are UL listed and CSA Certified.

Square D™ Low Voltage Transformer, Dry Sealed, 277 VAC Primary, 120/240 VAC Secondary, 1 kVA Power, 60 Hz Frequency, 1 ph, Wall Mounting, 180 deg C Insulation, NEMA 3R/7A Enclosure, 115 deg C, Sheet Steel Housing Material, 5.31 in L x 6.94 in W x 8.13 in H Dimensions
