Square D™ 2510FG2

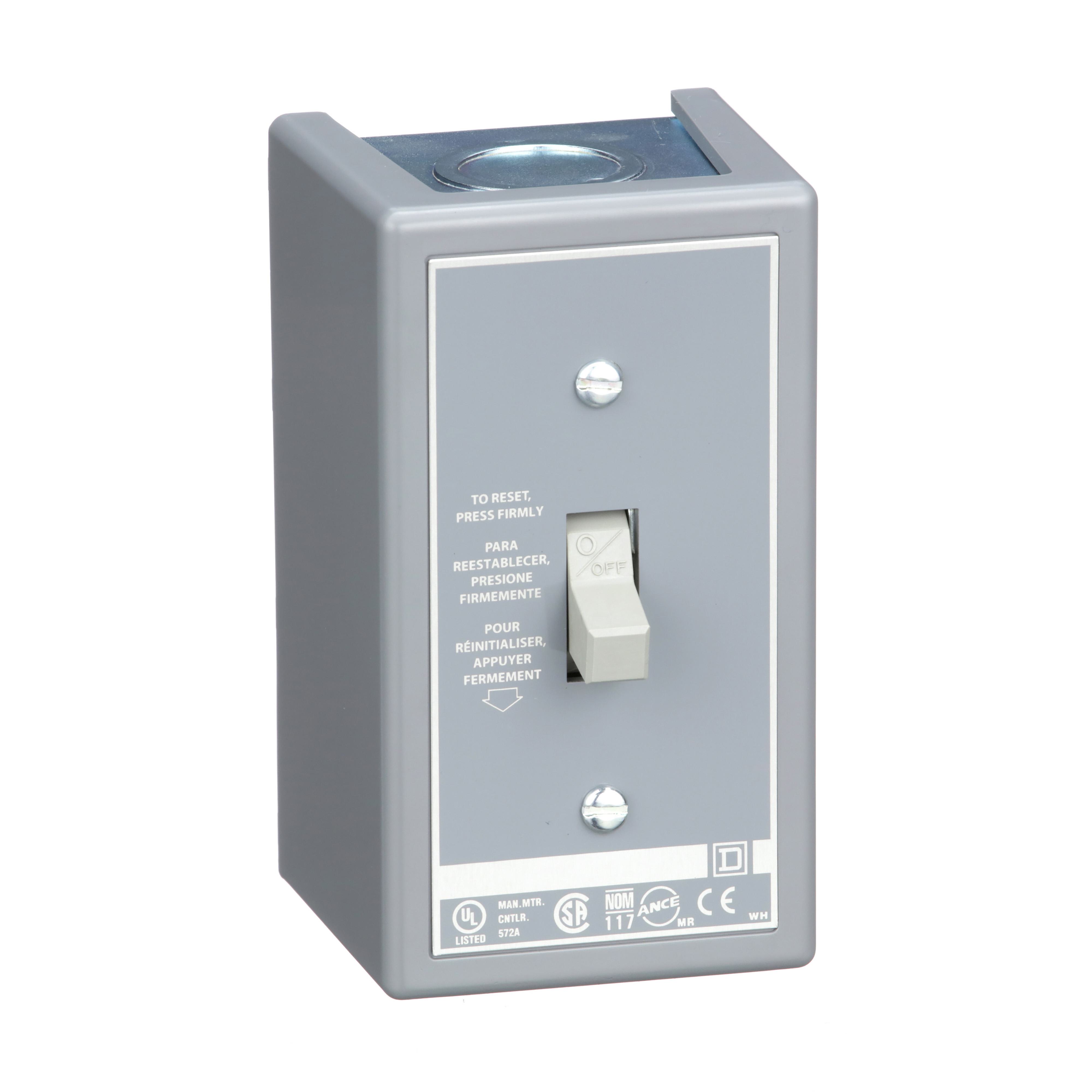

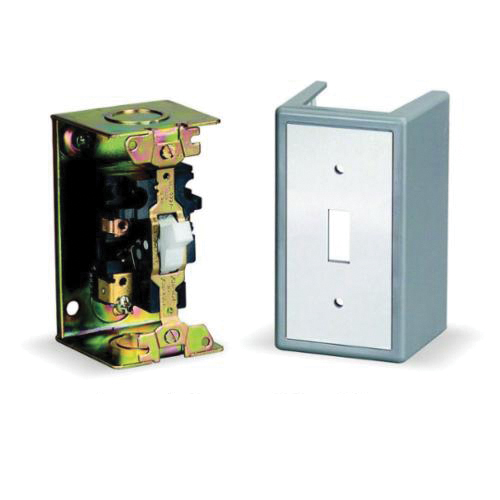

Square D™ 2510FG2 Type F Non-Reversing Single Unit Starter, 2 Poles, NEMA 1 Enclosure
Brand: Square D™
Item ID: 509804
MPN: 2510FG2
UPC: 785901553953
Login for Price
Features
- Melting alloy thermal overload relay
- General purpose enclosure
- 1 hp at 115/230/277 VAC, 3/4 hp at 115/230 vac power rating
- Surface mounting
- 1/2 and 3/4 in knockouts cable entry
Description
Manual motor starter, fractional horsepower, 2 P, 16 amp, toggle operated, no pilot light, NEMA 1 enclosure
Square D™ Starter, Type F Non-Reversing Single Unit, 277 VAC, 230 VDC, 16 A, 1 hp Motor, 2 Pole, Manual Reset, 1 ph, Screw Clamp, Thermal Melting Alloy Overload Relay, Toggle Control, NEMA 1, Plastic, 4.25 in W x 2.44 in D x 2.75 in H
Specifications
Amperage Rating |
16 A |
Connection Type |
Screw Clamp |
Control Type |
Toggle |
Dimensions |
4.25 in W x 2.44 in D x 2.75 in H |
Enclosure Type |
NEMA 1 |
Material |
Plastic |
Motor Power |
1 hp |
Number of Poles |
2 |
Overload Relay |
Thermal Melting Alloy |
Phase |
1 ph |
Reset Type |
Manual |
Type |
Type F Non-Reversing Single Unit |
Voltage Rating |
277 VAC, 230 VDC |
Standard Approval |
UL Listed|CE Certified|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For providing overload protection as well as manual On/Off control for small motors in a variety of industrial/commercial installations, fans, conveyors, pumps and small machine tools applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510FG2_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510FG71P_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510FG71P_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510MBW11_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510MCW13_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9a89a0b296bdd91cf674c3fbff3ef26a81c4689b071eb76413ef1ffd45cc9a66.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510FG2_Specification_Sheet.pdf
VIDEO LINK
https://www.youtube.com/embed/yox3SJNlwPI
