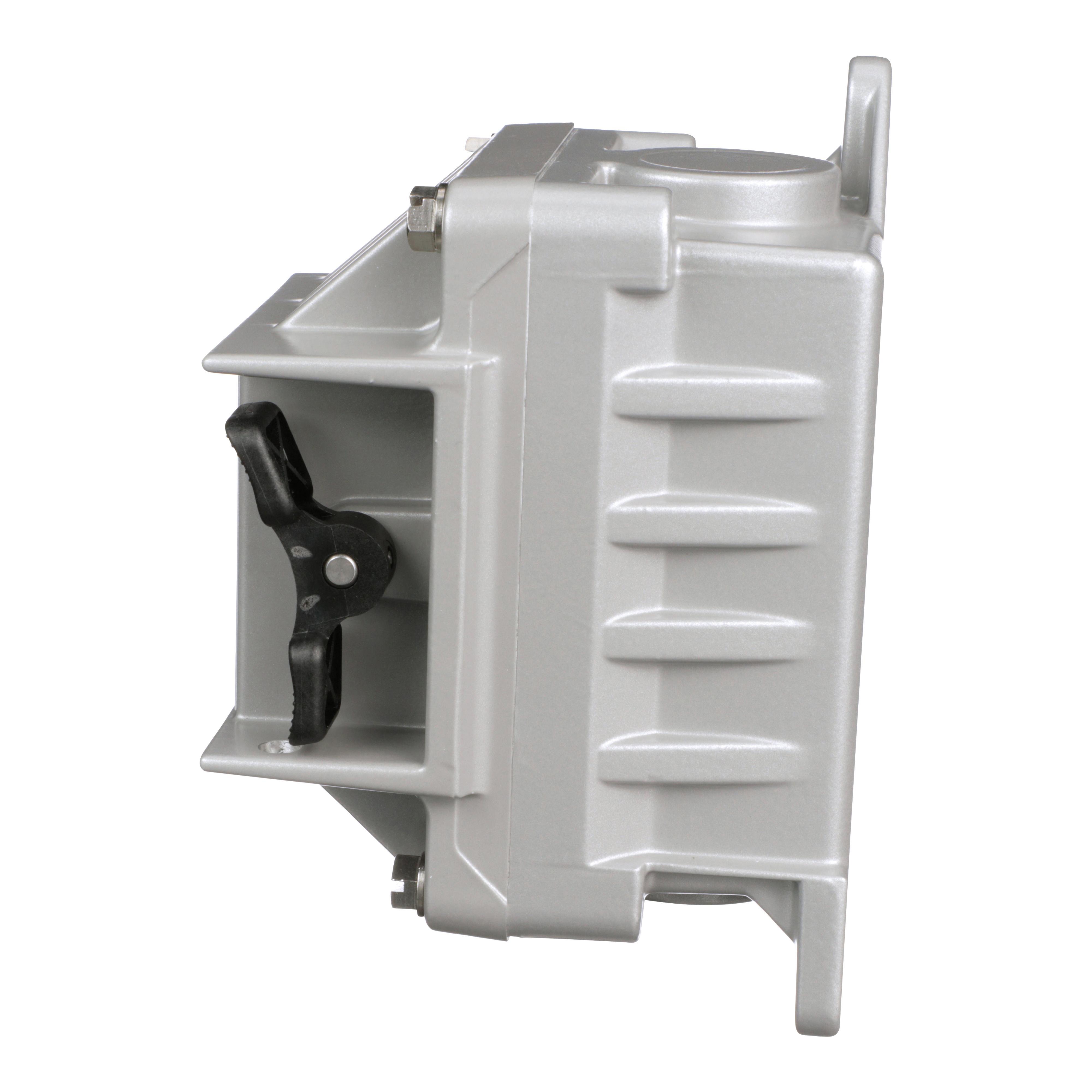

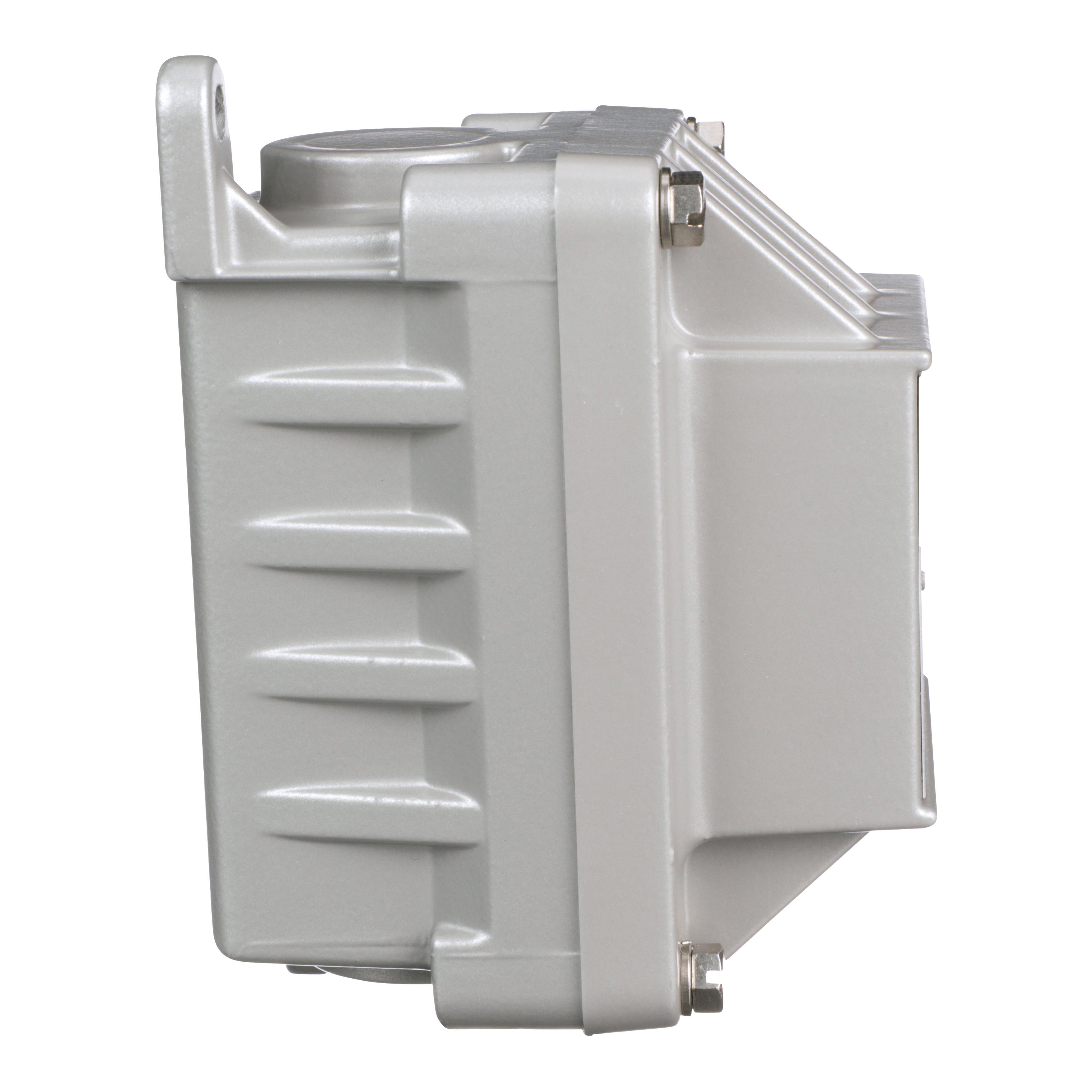

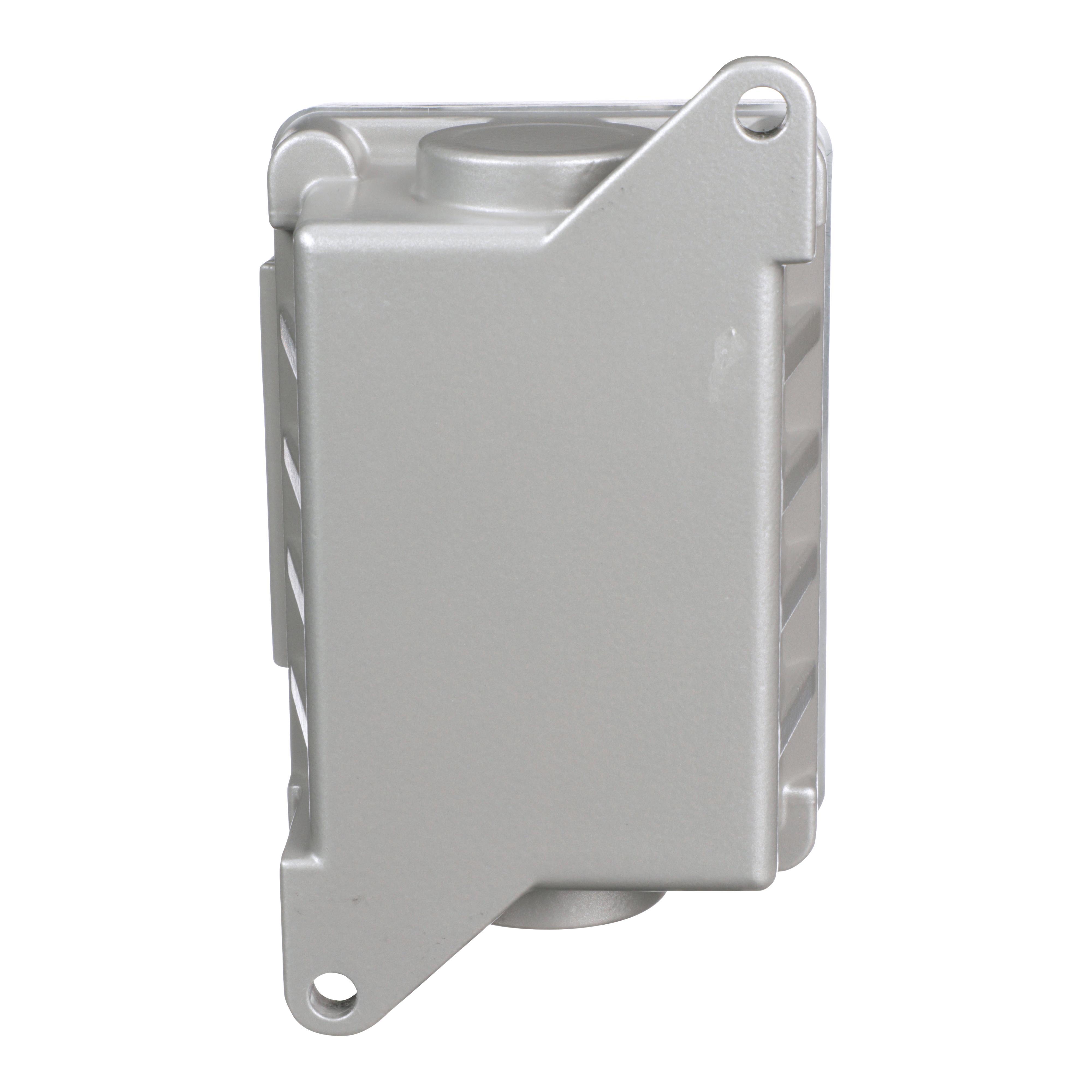

Square D™ 2510KR2

• Suitable for use with 3-ph AC motors rated up to 20 hp
• Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately
• Type K two-speed manual switches may be used with separate winding 3 or 1-ph AC motors where overload protection is not required or is provided separately
• Suitable for use with 3-ph squirrel cage motors and for single phase motors which can be reversed by reconnecting motor leads
• Two switches are used, one to connect the motor for forward rotation and one for reverse
• Two switches are employed to give "on-off" control in each speed
• Economical on/off solution
• Simple design
• Easy to install
• 3/4 in NPT bottom screw clamp
• Without indicator

Type K motor starting switches provide manual "On-Off" control of single or three-phase AC motors, where overload protection is not required or is provided separately. compact construction and a 600 volt rating make these switches suitable for a wide-range of industrial and commercial uses. Typical applications include small machine tools, pumps, fans, conveyors and many other types of electrical machinery. They may also be used on non-motor loads such as resistance heaters.

Square D™ Manual Switch, Type K 3-Phase 1-Unit Standard, Series: 2510, 600 VAC, 230 VDC, 20 A, 1 hp at 90 VDC, 1.5 hp at 230 VDC, 2 hp at 115 VAC/115 VDC, 7.5 hp at 230 VAC, 10 hp at 460 VAC/575 VAC Power, 3 Pole, Non-Reversing Action, Toggle Actuator, Screw Clamp Connection, NEMA 3R/7/9 Enclosure, Environmental Conditions: Hazardous Location, 3.95 in W x 4.35 in D x 6.36 in H Dimensions
