Square D™ 2510KW1A

• Type K reversing manual switches provide a compact means of starting, stopping and reversing AC motors where overload protection is not required or is provided separately
• Type K two-speed manual switches may be used with separate winding 3 or 1 ph AC motors where overload protection is not required or is provided separately
• Suitable for use with 3-ph squirrel cage motors and for single-phase motors which can be reversed by reconnecting motor leads
• Two switches are used, one to connect the motor for forward rotation and one for reverse
• Two switches are employed to give "on-off" control in each speed
• Economical on/off solution
• Simple design
• Easy to install
• 3/4 NPT bottom screw clamp

Type K motor starting switches provide manual "On-Off" control of single- or three-phase AC motors, where overload protection is not required or is provided separately. Compact construction and a 600 volt rating make these switches suitable for a wide range of industrial and commercial uses. Typical applications include small machine tools, pumps, fans, conveyors and many other types of electrical machinery. They may also be used on non-motor loads such as resistance heaters.

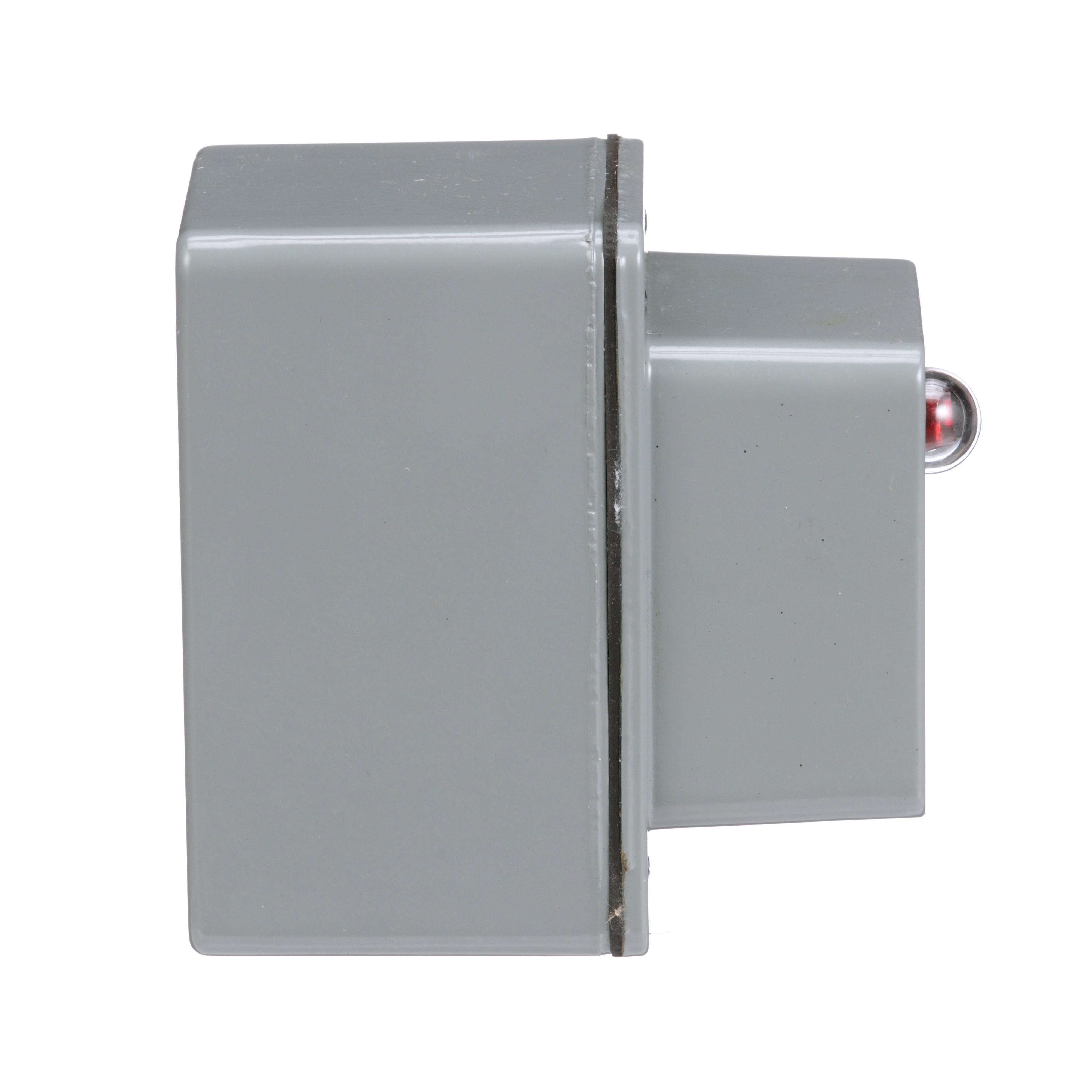

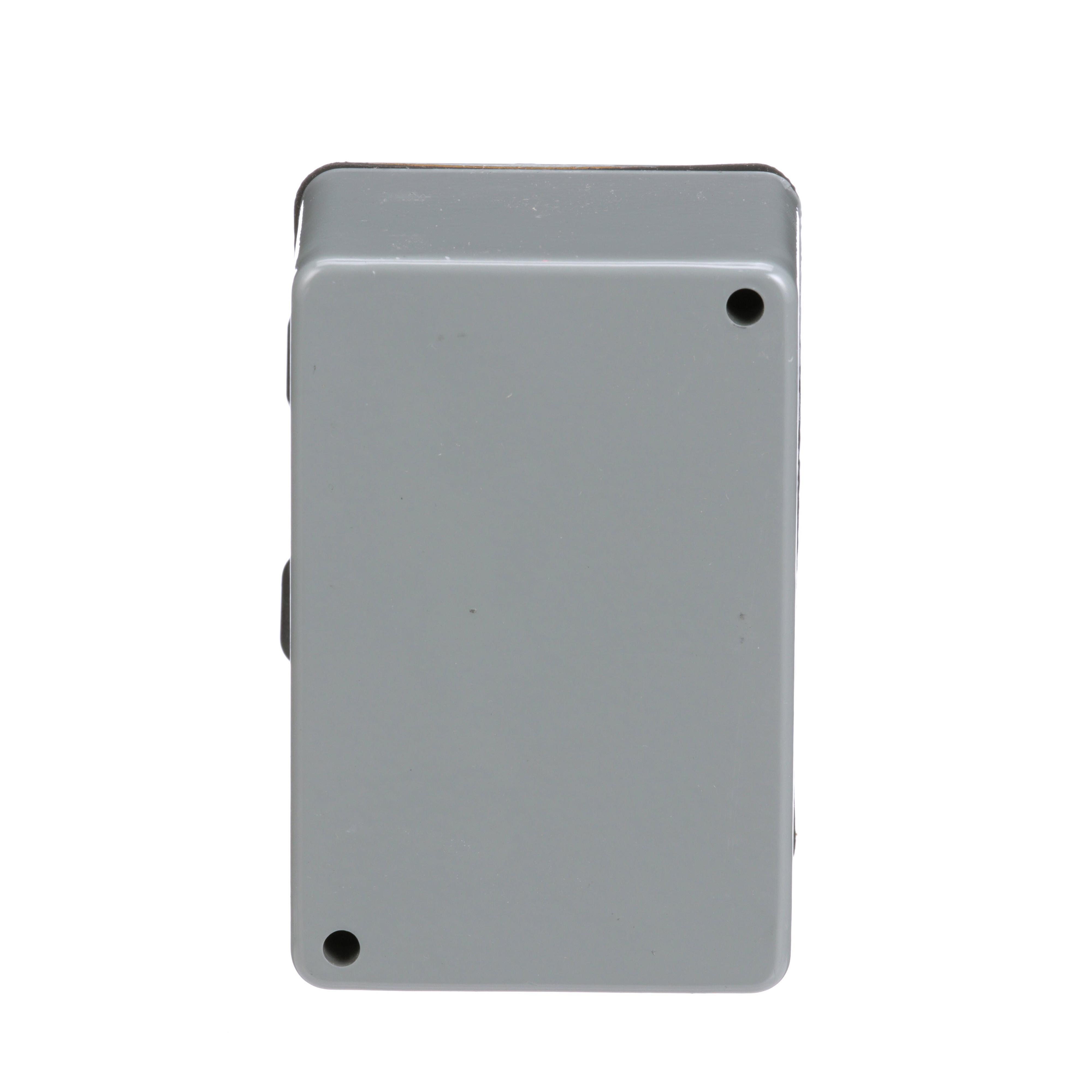

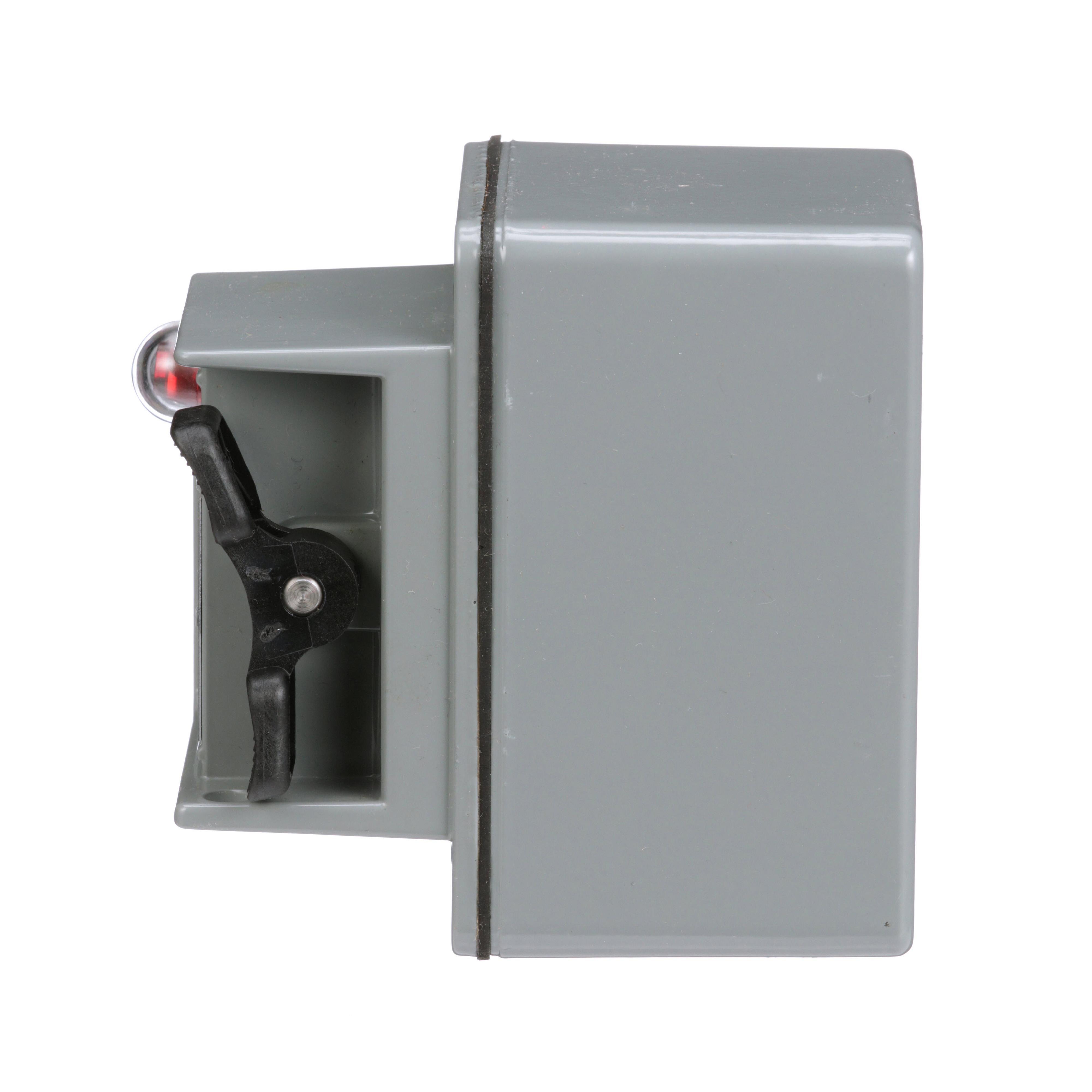

Square D™ Single Unit Manual Switch, 1-Phase Type K, Series: 2510, 600/230 VAC/VDC, 30 A, 2 hp at 115/230 VAC/3 hp at 460/575 VAC Power, 2 Pole, Non-Reversing Action, Toggle Actuator, Screw Clamp Connection, Red Indicator, NEMA 4 Enclosure, Environmental Conditions: Dusttight and Oiltight, 3 in W x 4.56 in D x 4.38 in H Dimensions
