Square D™ 2510TCG1

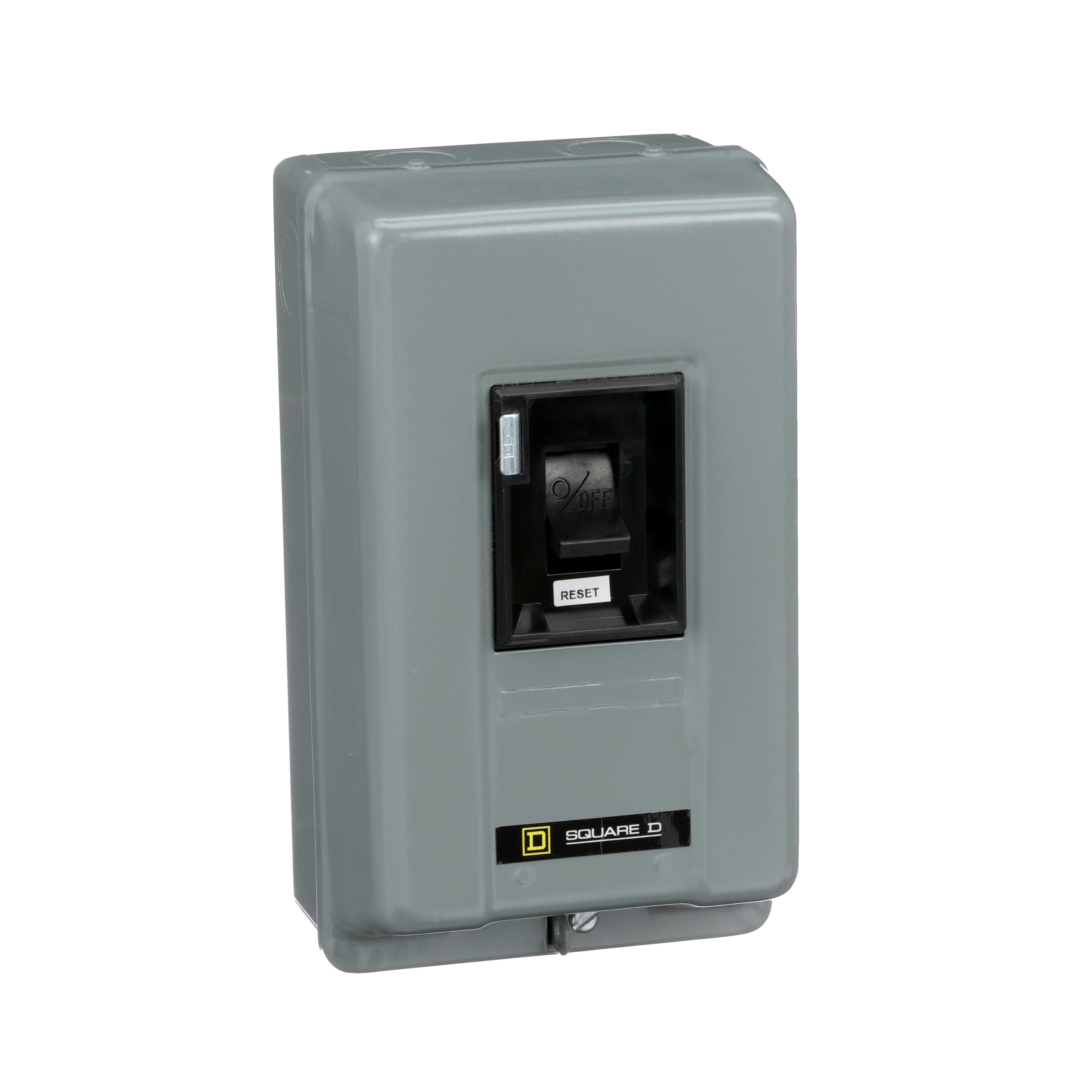

Square D™ 2510TCG1 Type T Starter, 2 Poles, NEMA 1 Enclosure
Brand: Square D™
Item ID: 529085
MPN: 2510TCG1
UPC: 785901795711
Login for Price
Features
- Inexpensive motor control where low voltage protection is not required
- Reliable melting alloy thermal units
- Simple operation
- NEMA type 1 general purpose enclosure
Description
Type M and T Integral Horsepower Starters offer convenient On-Off operation of small single phase, polyphase or DC motors.
Square D™ Starter, Type T, Series: 2510, 600 VAC/250 VDC, 27 A, 2 hp at 115 VAC/3 hp at 230 VAC Motor, 2 Pole, Manual Reset, 1 ph, Pressure Wire Clamp, Thermal Melting Alloy Overload Relay, Toggle Control, NEMA 1, Sheet Steel, 0 to 40 deg C Operating, 5 in W x 4.13 in D x 8.63 in H
Specifications
Amperage Rating |
27 A |
Connection Type |
Pressure Wire Clamp |
Control Type |
Toggle |
Dimensions |
5 in W x 4.13 in D x 8.63 in H |
Enclosure Type |
NEMA 1 |
Material |
Sheet Steel |
Motor Power |
2 hp at 115 VAC/3 hp at 230 VAC |
Number of Poles |
2 |
Operating Temperature |
0 to 40 deg C |
Overload Relay |
Thermal Melting Alloy |
Phase |
1 ph |
Reset Type |
Manual |
Series |
2510 |
Type |
Type T |
Voltage Rating |
600 VAC/250 VDC |
Standard Approval |
ECCN EAR99|CSA LR60905 Class 3211-05|UL File E42243 CCN NLRV|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
Simple Machine Control, HVAC, Small Machine Tools, Pumps, Fans and Conveyors |
Documentation
Catalog 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b2f9d32ea3136b9352f350e5139e77328e7da582d452618bf8a92e40515e7ed9.pdf
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ccd41679cb0af59a8c882dbd370d72c8e0302487b3746c2ff38b47fb31b89de8.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510TCG1_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510TCG1_Catalog.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1a25de1831215a0b6c39cbe1ffab4a80e605f07864508a0fcf1d86c9b79b2311.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_373dbcd5758abdfeffc0eff6db51e9be90e28b5aad792c5469b3b45d7afb5b5a.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510TCG1_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510TCG1_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1ee9afaed2f0833ba2ec53cb53d6a8c7e48f44df3f4d415fa3d4010c953d263c.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510TCG1_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510TCG1_Line_Drawing.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3b35dbe710f775c559a0c9b60c3ca2b1dc4d6fd3b3400067353388c26cad3def.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fb23fe4223cb5625e7595b28689364c1643662b0ed6988a64c0754b1396ffd5c.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510TCG1_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_2510TCG1_Specification_Sheet.pdf
