Square D™ 3106340938

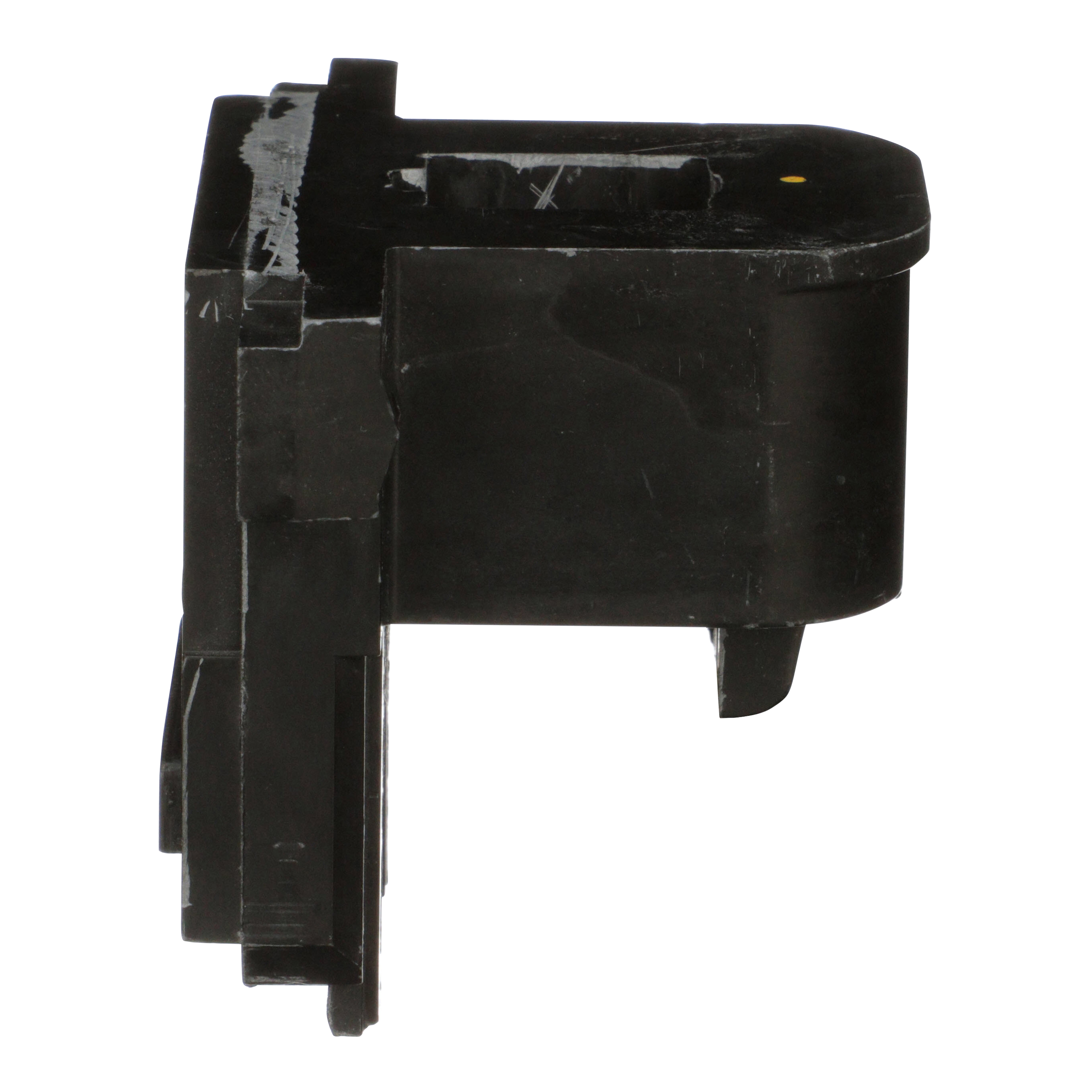

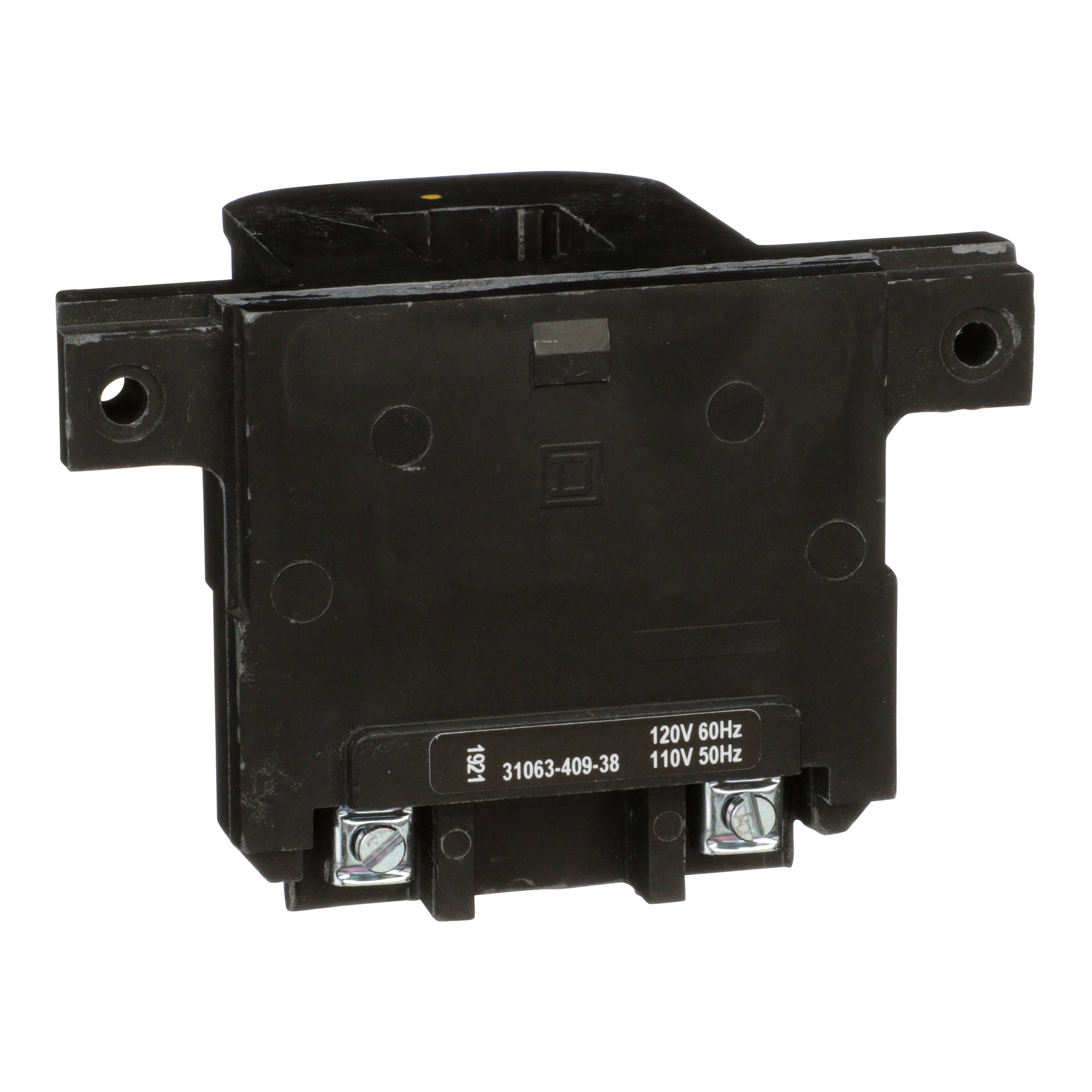

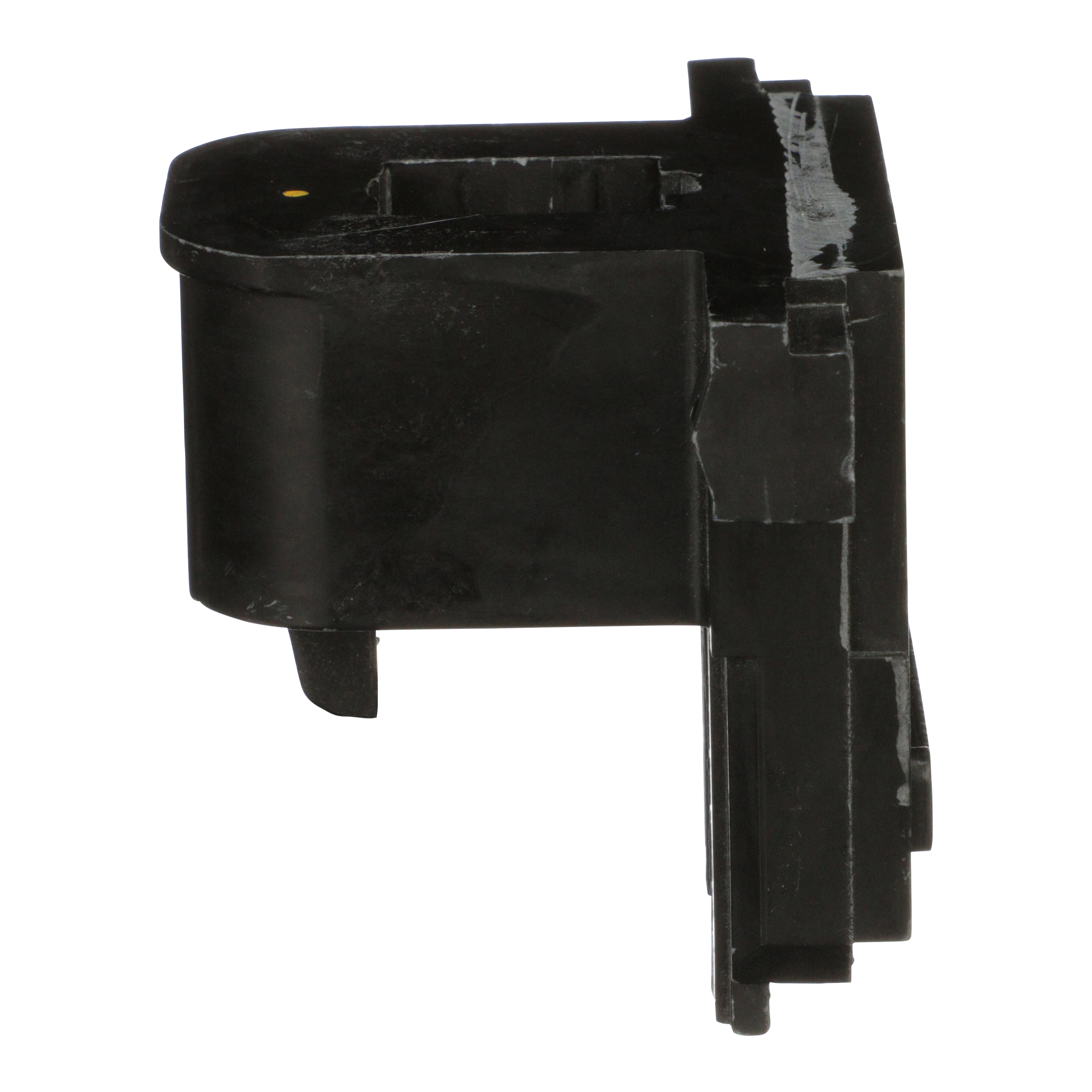

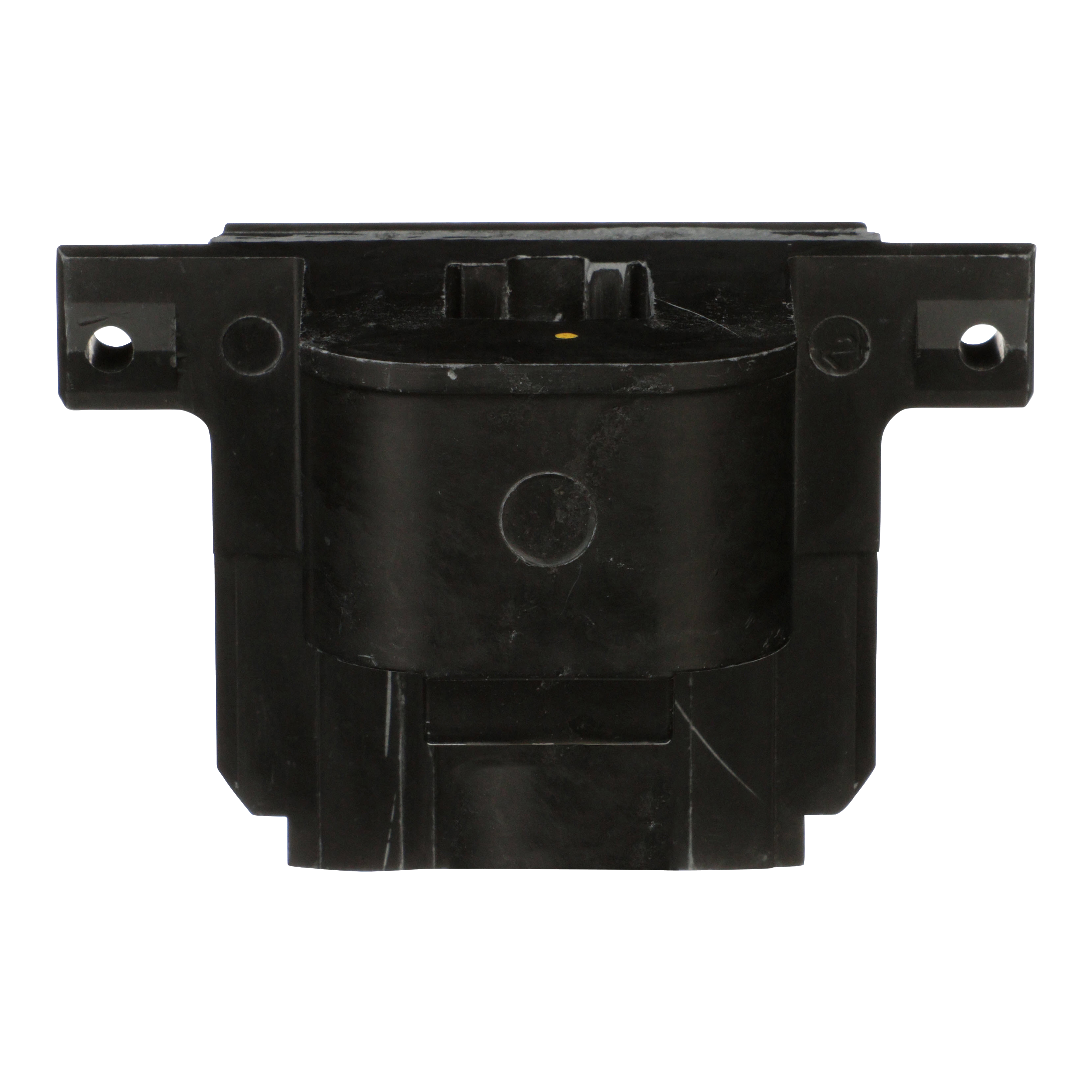

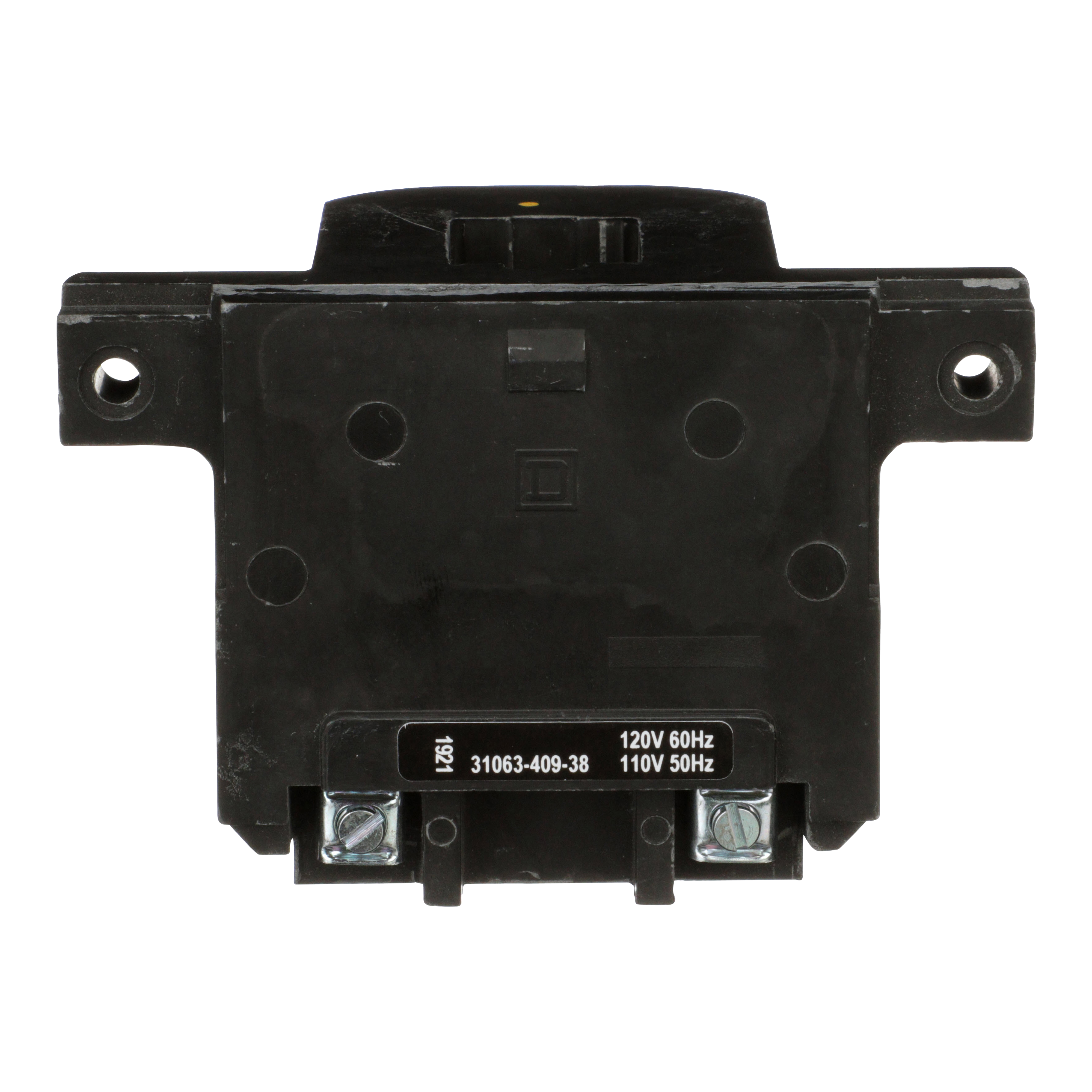

Square D™ 3106340938 Coil, NEMA 2, 110/115/120 VAC, 50/60 Hz, For Use With Class 8903 Type SP, Class 8502 Type SD 2/3-Poles Contactor/Starter
Brand: Square D™
Item ID: 37069
MPN: 3106340938
UPC: 785901484882
Login for Price
Features
- Screw clamp terminal connections
- Direct mount
- 40 deg c ambient operating temperature
- 60 a current rating
Description
Type S replacement coil, 110/120 V 50/60 Hz, 2 or 3 P NEMA Size 2 contactors and starters, 8903SP lighting contactors
Square D™ Coil, NEMA 2, 110/115/120 VAC, 50/60 Hz, For Use with: Class 8903 Type SP, Class 8502 Type SD 2/3-Poles Contactor/Starter
Specifications
Frequency Rating |
50/60 Hz |
Size |
NEMA 2 |
Suitable For Use With |
Class 8903 Type SP, Class 8502 Type SD 2/3-Poles Contactor/Starter |
Voltage Rating |
110/115/120 VAC |
Standard Approval |
UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
Contactors and Starters Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_99e4eb8cd29520f5e2058bb6f5de532c98be6dce4bc4af8f6ffb9e8a1d28795d.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7c2326c2bb0eef352f05440aac531ecb8fb5aaa275e05796bb7d7018a39619f6.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3106340957_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDG1V01CS_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_8536SDG1V01CS_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b25c750403c888c4871e6fdf2a3123fa60a9782673517fd535ed580cd52adc76.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_44f87477696dfa217d8934357a54cdf0961cef77f7f3a91b0ed0b17f626a2603.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_3106340938_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PA21000RC_Warranty.pdf
